<6. Maintenance>
6-39
IM 11B08A01-01E
K9034FF sample volume: 0.33 μl, Rulon
K9034DS * sample volume: 1 μl, Rulon
K9034DR * sample volume: 2 μl, Rulon
K9034DQ * sample volume: 3 μl, Rulon
K9034DP * sample volume: 10 μl or more, Rulon
K9034DN * for switching valve, Rulon
K9034DM for plug
J9201HY sample volume: 0.33 μl, Tefl on
K9034FL sample volume: 1 μl, Tefl on
K9034FK sample volume: 2 μl, Tefl on
K9034FJ sample volume: 3 μl, Tefl on
K9034FH sample volume: 10 μl or more, Tefl on
K9034FR for switching valve, Tefl on
* When ordering * items, the following P/N should be specifi ed.
K9409ZE (2 pcs. of K9034DS)
K9409ZD (2 pcs. of K9034DR)
K9409ZC (2 pcs. of K9034DQ)
K9409ZB (2 pcs. of K9034DP)
K9409ZA (2 pcs. of K9034DN)
F0232.ai
Coil Spring (Does not
have to be removed)
Valve Seat
Gasket
Nut
Plumbing tube
Gland Assembly
Washer (Does not
have to be removed)
Remove the two screws
not coated with red enamel
(for valve replacement only.
Do not remove them when
replacing valve seat only.)
Do not loosen the screws
coated with red enamel.
Do not loosen these screws

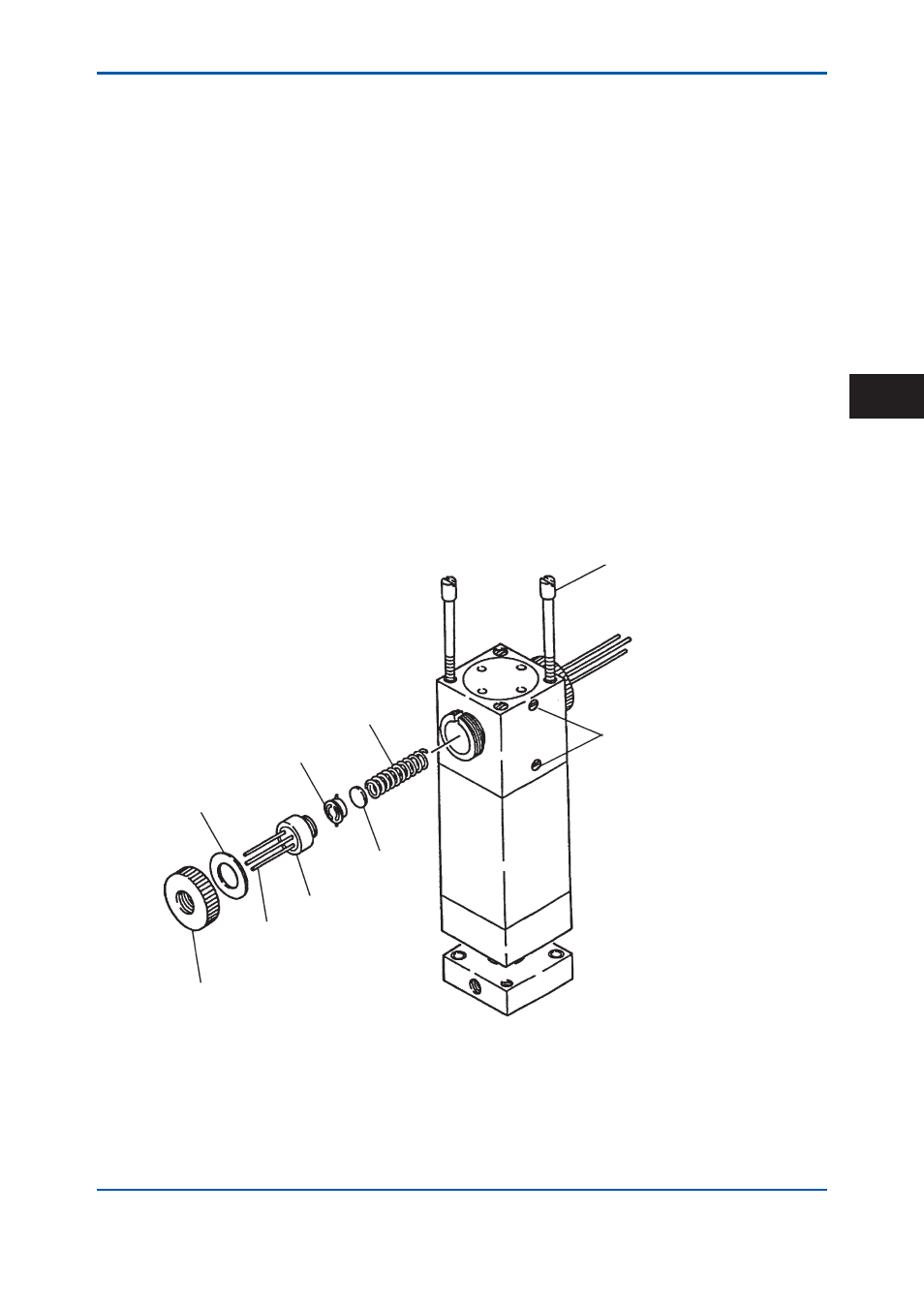

Figure 6.32 Rotary Valve
