3.22.2 Sample

Application

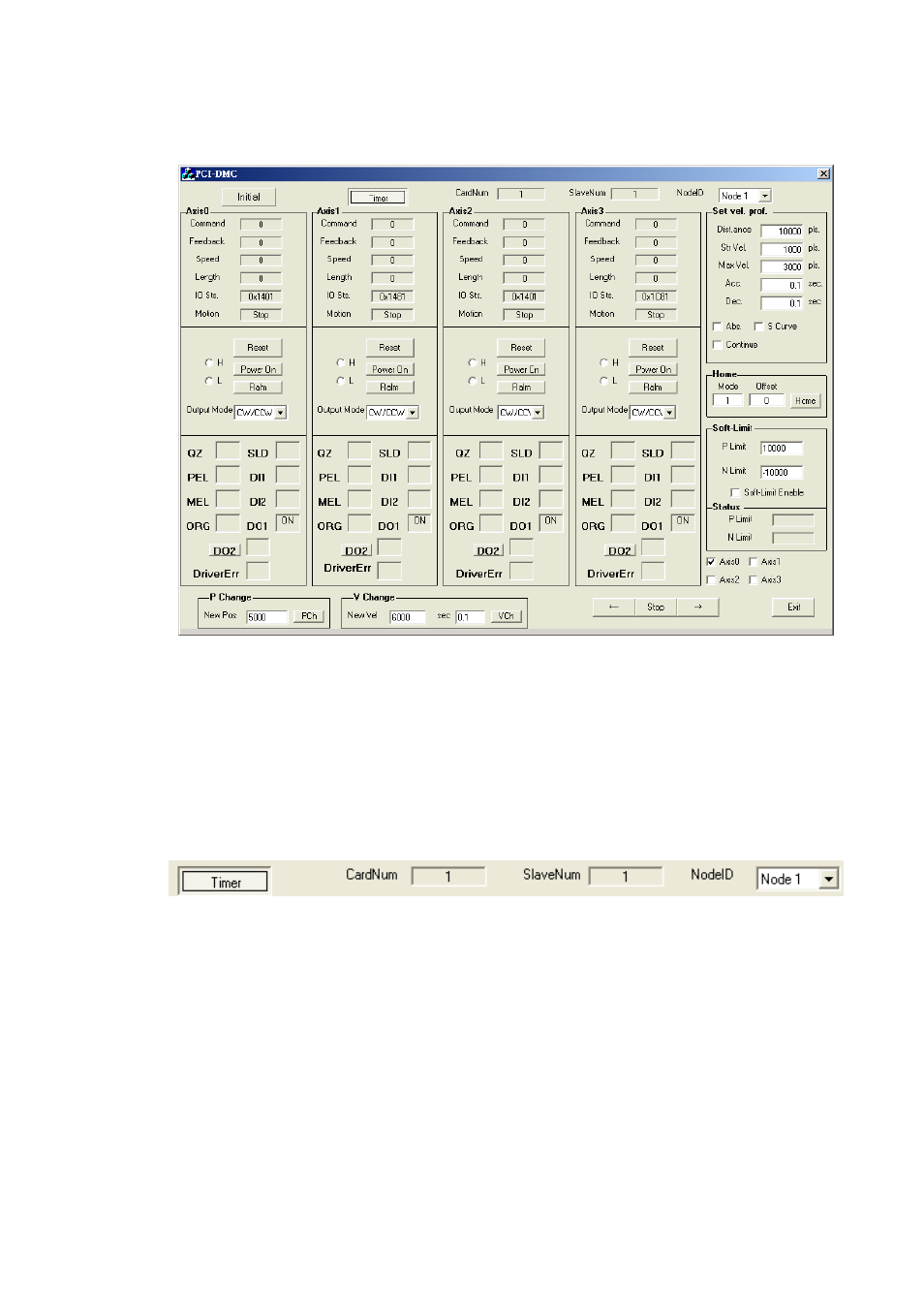

Program Appearance

Figure 3.104

1) Card initialization

Click on the “Initial” button to open and initialize the card.
For a detailed description of card initialization, please refer to “Open card” and “Card
initialization” in Section 3.1.2.

2) Set Servo Node ID and enable motion status display

Figure 3.105

Enter Node ID and check “Timer” checkbox to enable motion status display
NodeID item: API function's argument variable “NodeID”.
Timer Checkbox: Check to display the motion status. Uncheck to disable display.
