Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

Revised March, 2012

3-107

2) Enable motion status display

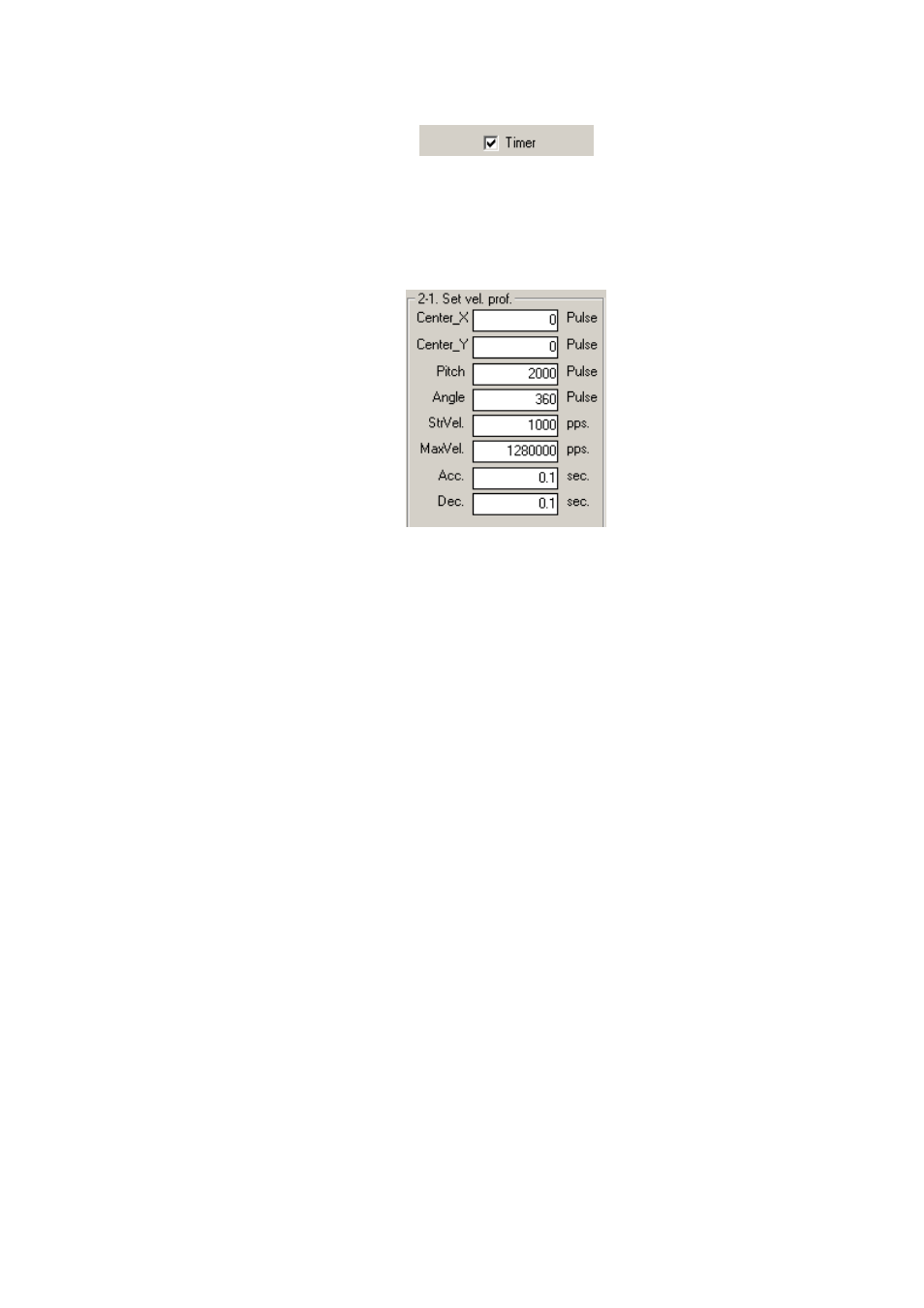

Figure 3.142

Timer Checkbox: Check to display the motion status. Uncheck to disable display.

3) Spiral motion parameter settings:

Figure 3.143

Center_X item: Spiral center point's X-coordinate, API function's argument variable
“Center_X”.
Center_Y item:
Spiral center point's Y-coordinate, API function's argument variable
“Center_Y”.
Pitch item: Interval between circles in Spiral, API function's argument variable
“Pitch”.
Angle item: Total sum of angles in Spiral. For example, 720 degrees is 2 circles,
API function's argument variable “Angle”.
StrVel item: Starting velocity. API function's argument variable “StrVel”.
MaxVel item:
Maximum velocity. API function's argument variable “MaxVel”.
Acc. item: Time required to reach maximum velocity. API function's argument
variable “acc”.
Dec item: Time required to go from maximum velocity to 0. API function's argument
variable “dec”.
