Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

3-106

Revised March, 2012

3.28 Spiral Interpolation Motion Control -Spiral

3.28.1 Function

List

Table 3.28

Function Name

_DMC_01_start_spiral_xy
_DMC_01_start_spiral2_xy

3.28.2 Sample

Application

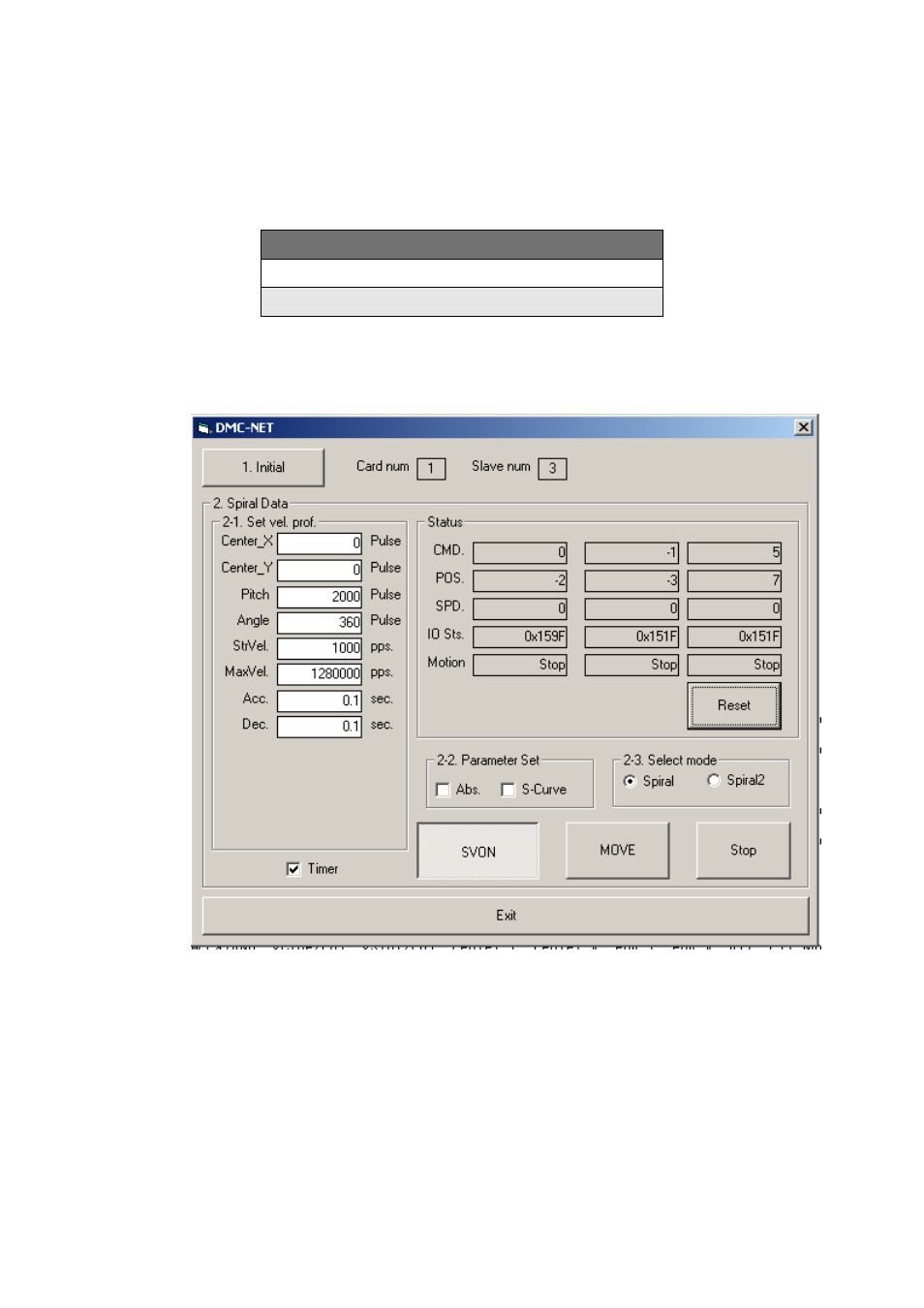

Program Appearance

Figure 3.141

1) Card initialization:

Click on the “Initial” button to start card initialization.
For a detailed description of card initialization, please refer to Section 3.1.2 - 1)
Open card.
