Delta Electronics High-Speed PCI 12-Axis Motion Control Card PCI-DMC-A01 User Manual
Page 146
Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01
3-124
Revised March, 2012
Remarks: If Z-axis completes one revolution CW over the distance of Pitch, then if
Dr = 0 Depth is a positive number as well. If Dir = 1 then Depth is a negative number;
if Z-axis completes one revolution CCW over the distance of pitch, then the opposite
is true.

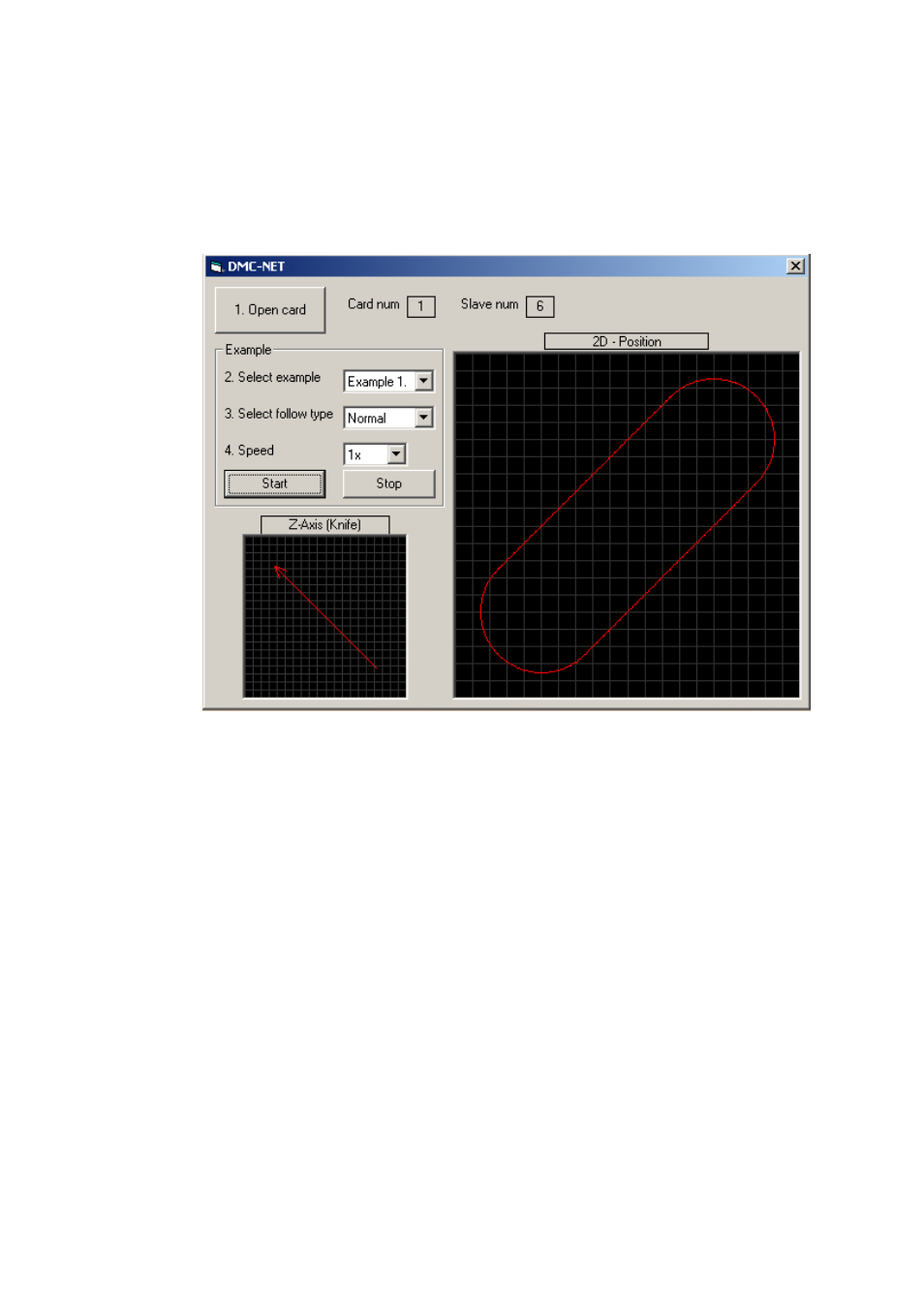

When Example 1 and Normal are selected, the result is as shown below:
Figure 3.163
