Delta Electronics High-Speed PCI 12-Axis Motion Control Card PCI-DMC-A01 User Manual
Page 111

Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01
Revised March, 2012
3-89

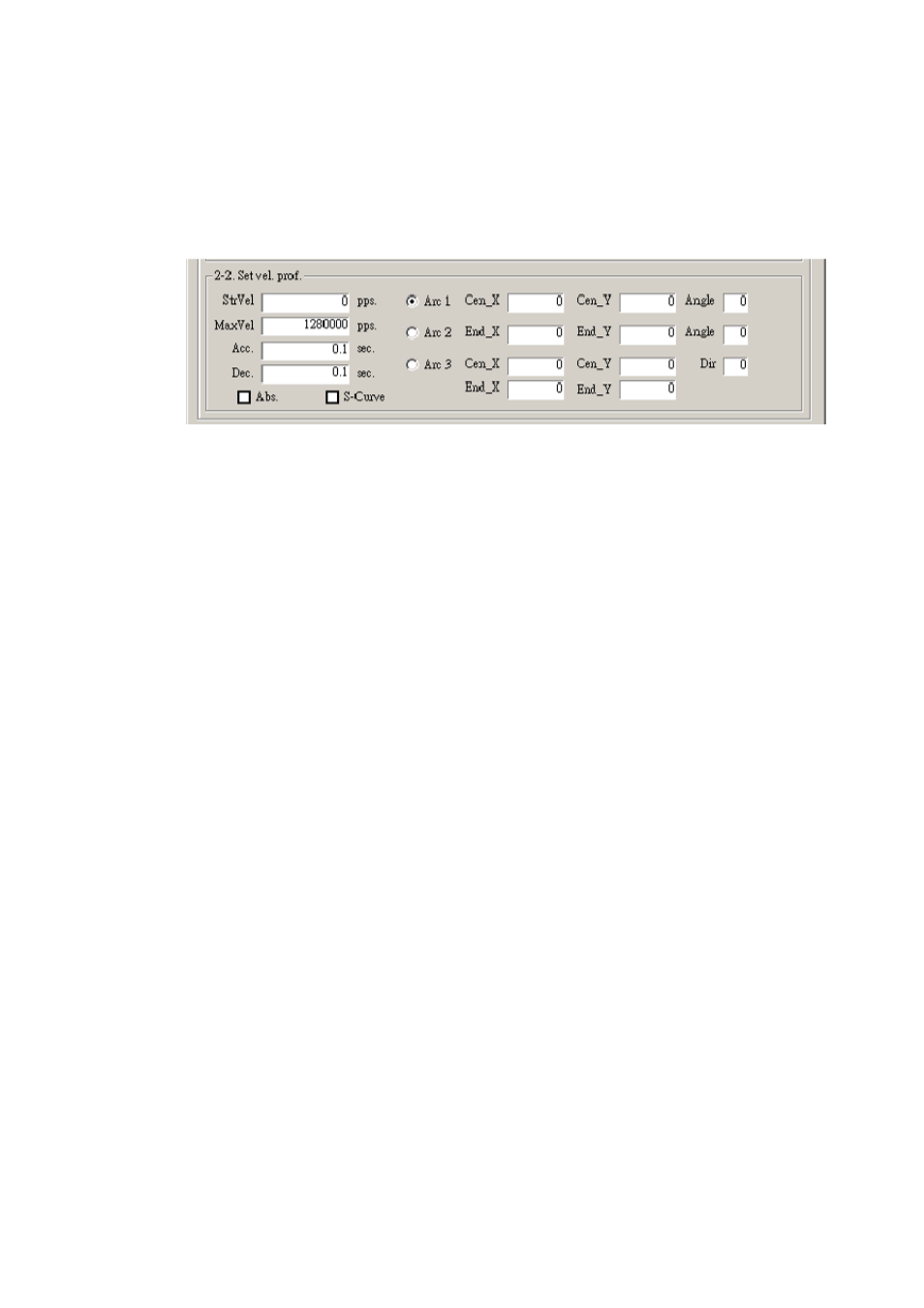

4) When you complete the arc calculation and get the data you require for arc
interpolation motion, you can begin motion control for arc interpolation. Enter the
data required for arc interpolation as shown in Fig. 390, select the arc interpolation
motion you wish to use. For a detailed description of arc interpolation, please refer
to “2-axis Arc Interpolation Motion Control API”.
Figure 3.121
