Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

Revised March, 2012

3-117

1) Card initialization:

Click on the “Open card” button to start card initialization.
For a detailed description of card initialization, please refer to Section 3.1.2 - 1)
Open card.

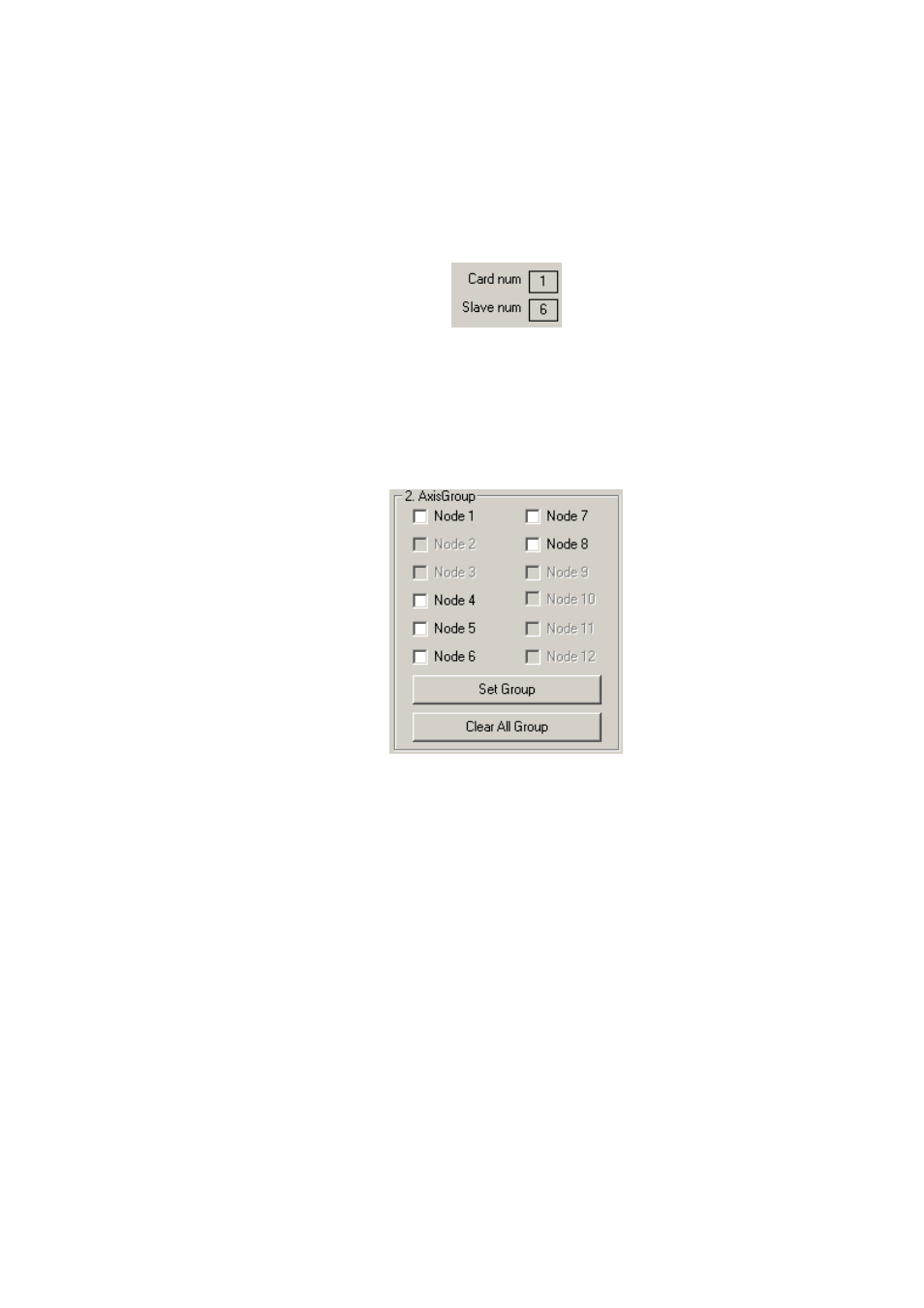

2) Card number, Slave number:

Figure 3.154

Card num item: Display number of cards.
Slave num item: Display number of slaves.

3) Group settings and reset:

Figure 3.155

Nodexx item: Display details for Node ID.

Set Group item: 1. Up to 6 groups can be set per card.

2. If Node 7 and Node 8 are set as one group and a link error

occurs nearby, both Node 7 & Node 8 will stop. Nodes 1, 4, 5,
6 will remain unaffected and continue working normally.

3. Once you have selected the nodes to place in a group, click on

“Set Group” to execute the following settings.

rt = _DMC_01__DMC_01_set_group (gDMCCardNo, NodeID, SlotID, NodeNum,
1);

//1: Set all selected Node to the same group.

Clear All Group item: When “Clear All Group” is clicked this will execute the
following settings.

rt = _DMC_01_set_group(gDMCCardNo, (U16*)1, 0, 1, 0);

//0: Clear all group settings on this card
