Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

Revised March, 2012

3-31

3.10 Arc Interpolation Motion Control

3.10.1 Overview

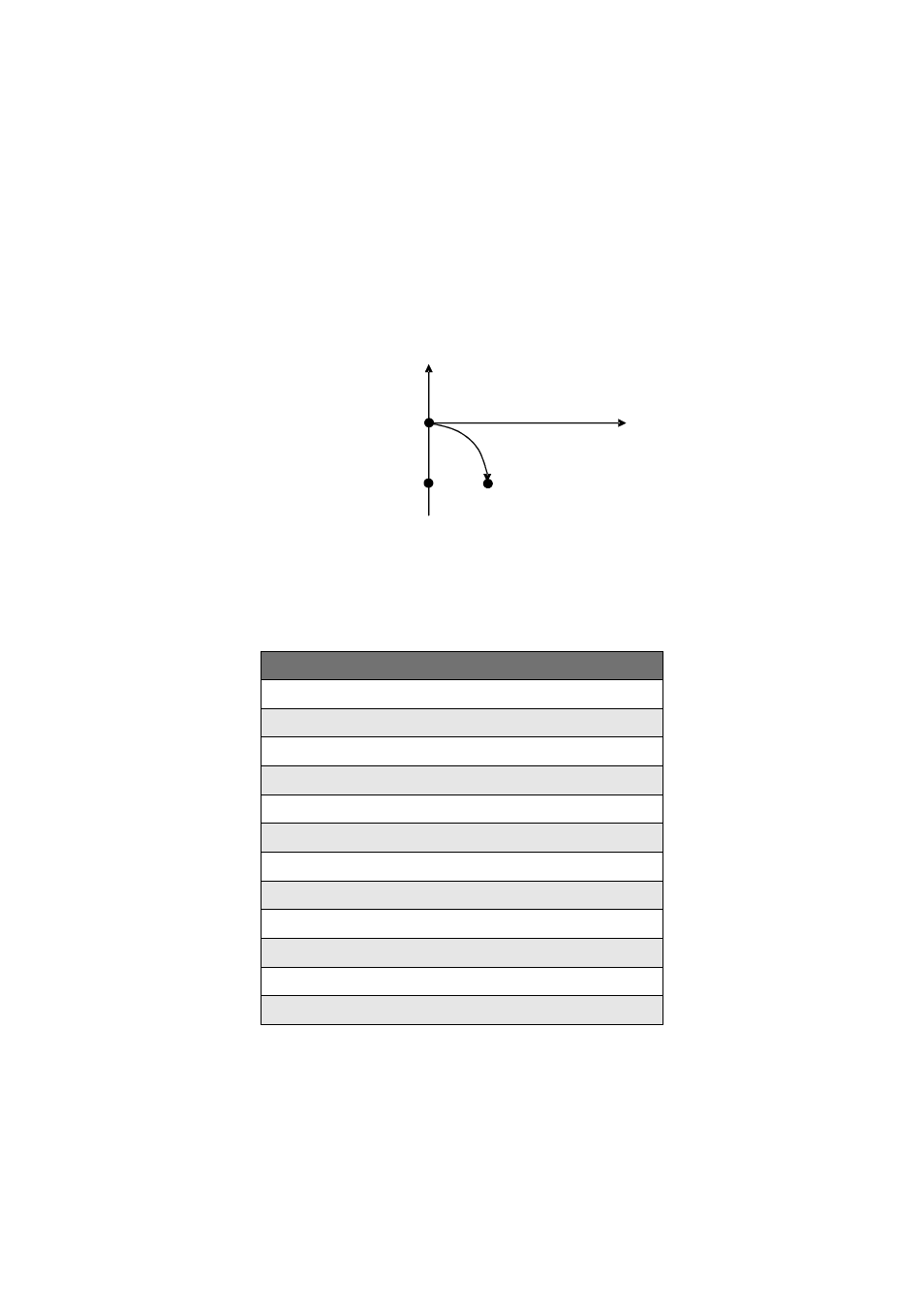

PCI-DMC-A01 supports 2-axis arc interpolation in absolute or relative coordinate
motion modes under the S-curve or T-curve velocity cross-section. Fig. 3.44 illustrates
arc interpolation on any 2 axes.

The start point is P0 (X0, Y0) and end point is P1(X1, Y1). The path from P0 to P1
forms an arc. The maximum velocity is the tangential velocity.

P1

P0

Cent

Figure 3.47

3.10.2 Function

List

Table 3.10

Function Name

_DMC_01_start_tr_arc_xy
_DMC_01_start_sr_arc_xy
_DMC_01_start_ta_arc_xy
_DMC_01_start_sa_arc_xy
_DMC_01_start_tr_arc2_xy
_DMC_01_start_sr_arc2_xy
_DMC_01_start_ta_arc2_xy
_DMC_01_start_sa_arc2_xy
_DMC_01_start_tr_arc3_xy
_DMC_01_start_sr_arc3_xy
_DMC_01_start_ta_arc3_xy
_DMC_01_start_sa_arc3_xy
