Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

Revised March, 2012

3-65

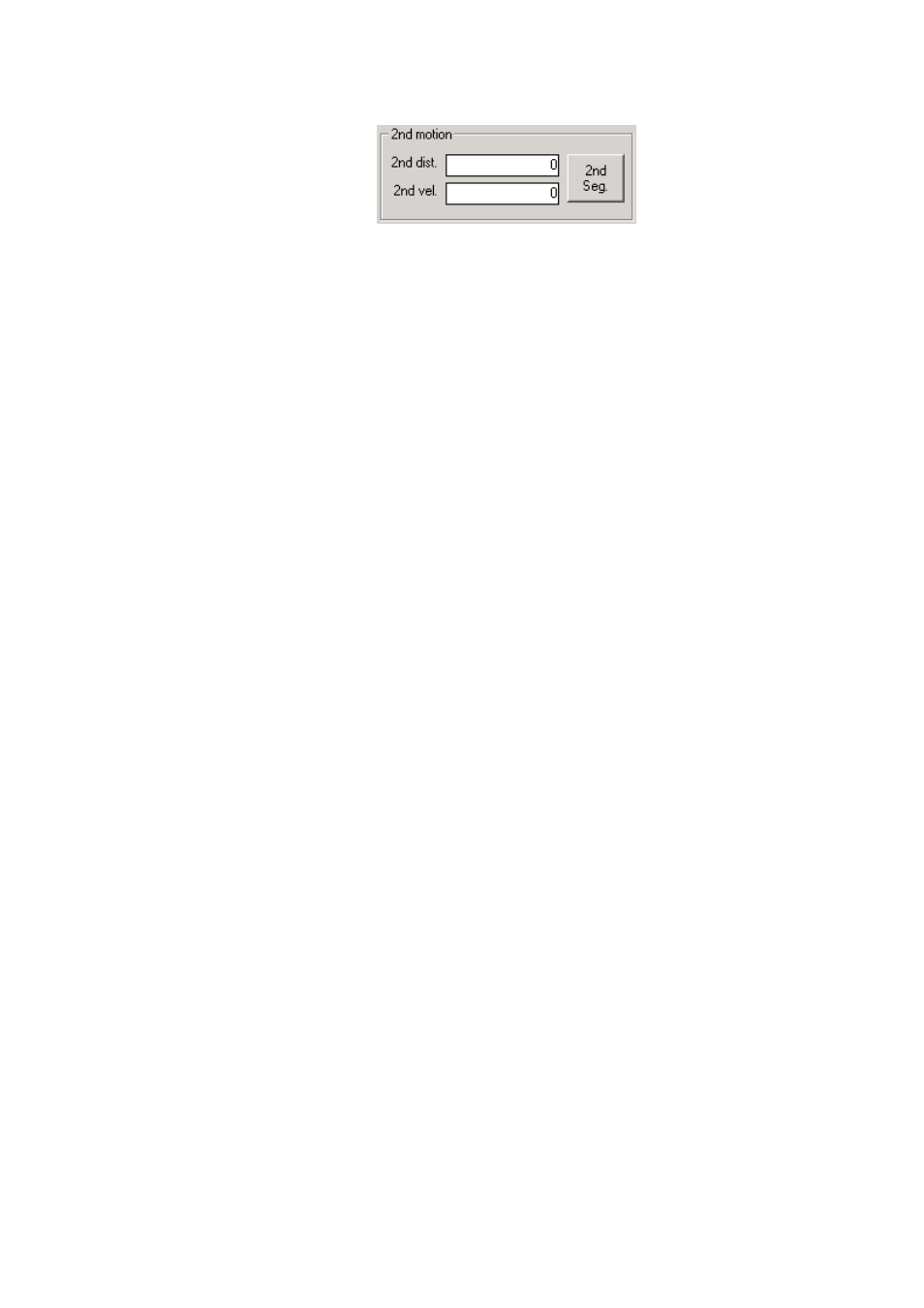

5) Set distance and velocity for 2nd motion

Figure 3.95

2 nd dist item: Value of distance for 2nd motion. API function's argument variable
“Dist2”.
2 nd vel item:
Value of velocity for 2nd motion. API function's argument variable
“MaxVel2”.

6) Set Servo Motor Power ON/OFF(servo on/servo off)

Click on the “SVON” button to execute the following procedure:

rt = _DMC_01_ipo_set_svon(gDMCCardNo, NodeID, SlotID , ON_OFF);

// ON_OFF: 0 – Servo Power OFF; 1 – Servo Power ON

7) Start motion control (Using point to point motion control as an example)

Click on the “” or “” button to execute the following procedure:

rt = _DMC_01_start_sa_move(gDMCCardNo, NodeID, SlotID, Distance, StrVel,
MaxVel, acc, dec);

// Motion displacement using absolute coordinates with S-curve

velocity cross-section

8) If you wish to change the current motion velocity to a new velocity, please click on

the “2 nd seg.” button to execute the following procedure:

rt = _DMC_01_start_sa_move_2seg (CardNo, NodeID, SlotID, Dist, Dist2, StrVel,
MaxVel, MaxVel2, Tacc, Tsec, Tdec);

// 2nd motion displacement using absolute coordinates with S-curve velocity
cross-section

rt = _DMC_01_start_ta_move_2seg (CardNo, NodeID, SlotID, Dist, Dist2, StrVel,
MaxVel, MaxVel2, Tacc, Tsec, Tdec);

// 2nd motion displacement using absolute coordinates with T-curve velocity
cross-section

rt = _DMC_01_start_sr_move_2seg (CardNo, NodeID, SlotID, Dist, Dist2, StrVel,
MaxVel, MaxVel2, Tacc, Tsec, Tdec);

// 2nd motion displacement using relative coordinates with S-curve velocity
cross-section

rt = _DMC_01_start_tr_move_2seg (CardNo, NodeID, SlotID, Dist, Dist2, StrVel,
MaxVel, MaxVel2, Tacc, Tsec, Tdec);

// 2nd motion displacement using relative coordinates with T-curve velocity
cross-section
