Chapter 22 3-Axis Spiral Interpolation Motion Control API | PCI-DMC-A01 / PCI-DMC-B01

Revised March, 2012

22-11

Description

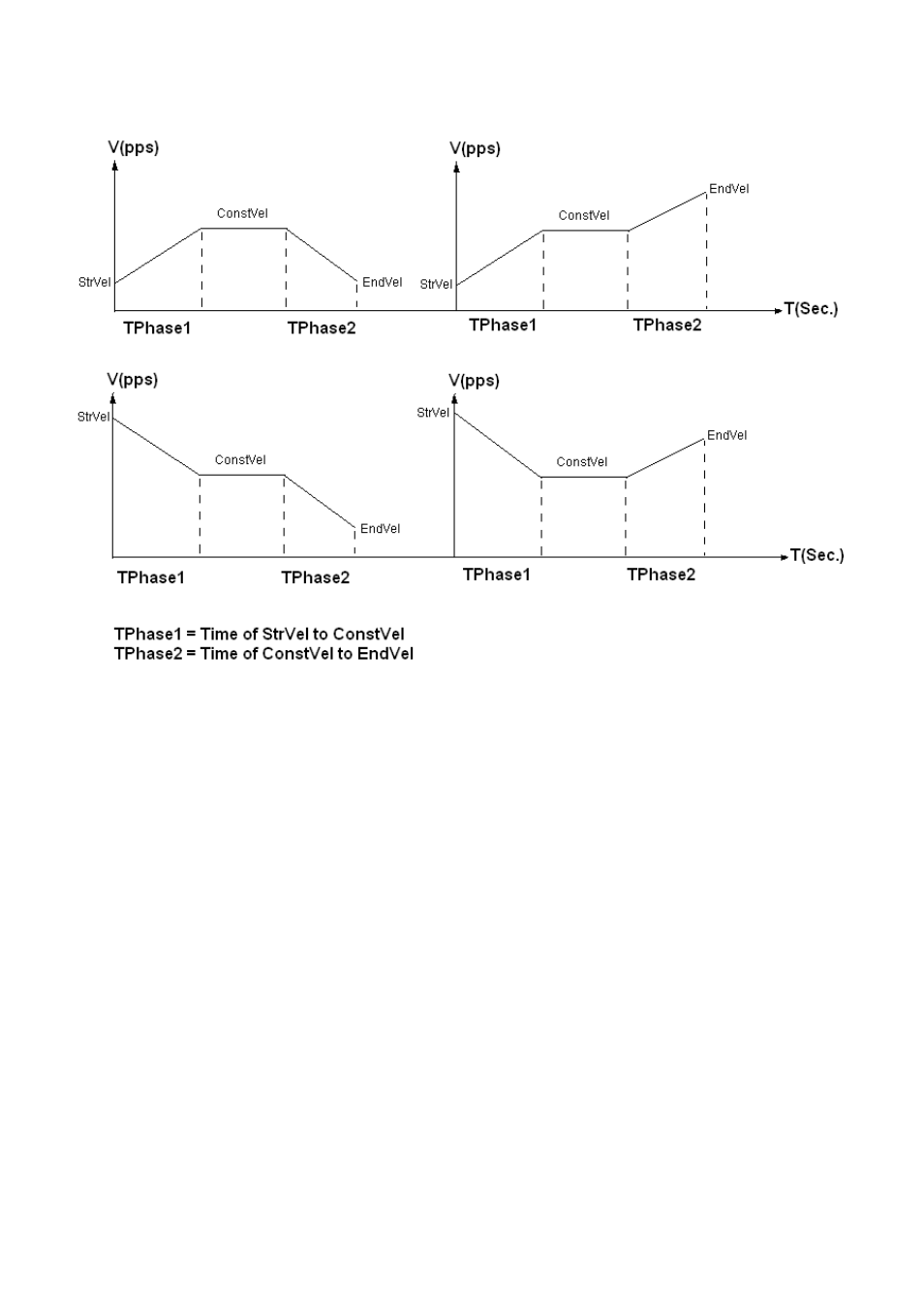

Figure 22.2 Explanation of TPhase1 and TPhase2


Example

U16 CardNo=0;
U16 NodeIDArray[3]={1,2,3};
U16 SlotID[3]={0, 0, 0};
I32 Center_X =25000, Center_Y =50000, Depth =10000, Pitch = 20000;
I16 Dir=1;
I32 StrVel=0, MaxVel=50000;
I32 EndVel=20000;
F64 TPhase1=0.2;
F64 TPhase2=0.1;
U16 m_curve=1, m_r_a=0;

I16 status= _DMC_01_start_sa_heli_xy (CardNo, NodeIDArray, SlotID, Center_X, Center_Y,

Depth, Pitch, Dir, StrVel, ConstVel, EndVel, TPhase1, TPhase2, m_curve, m_r_a);
