Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

3-22

Revised March, 2012

3.8.3 Sample

Application

Program Appearance

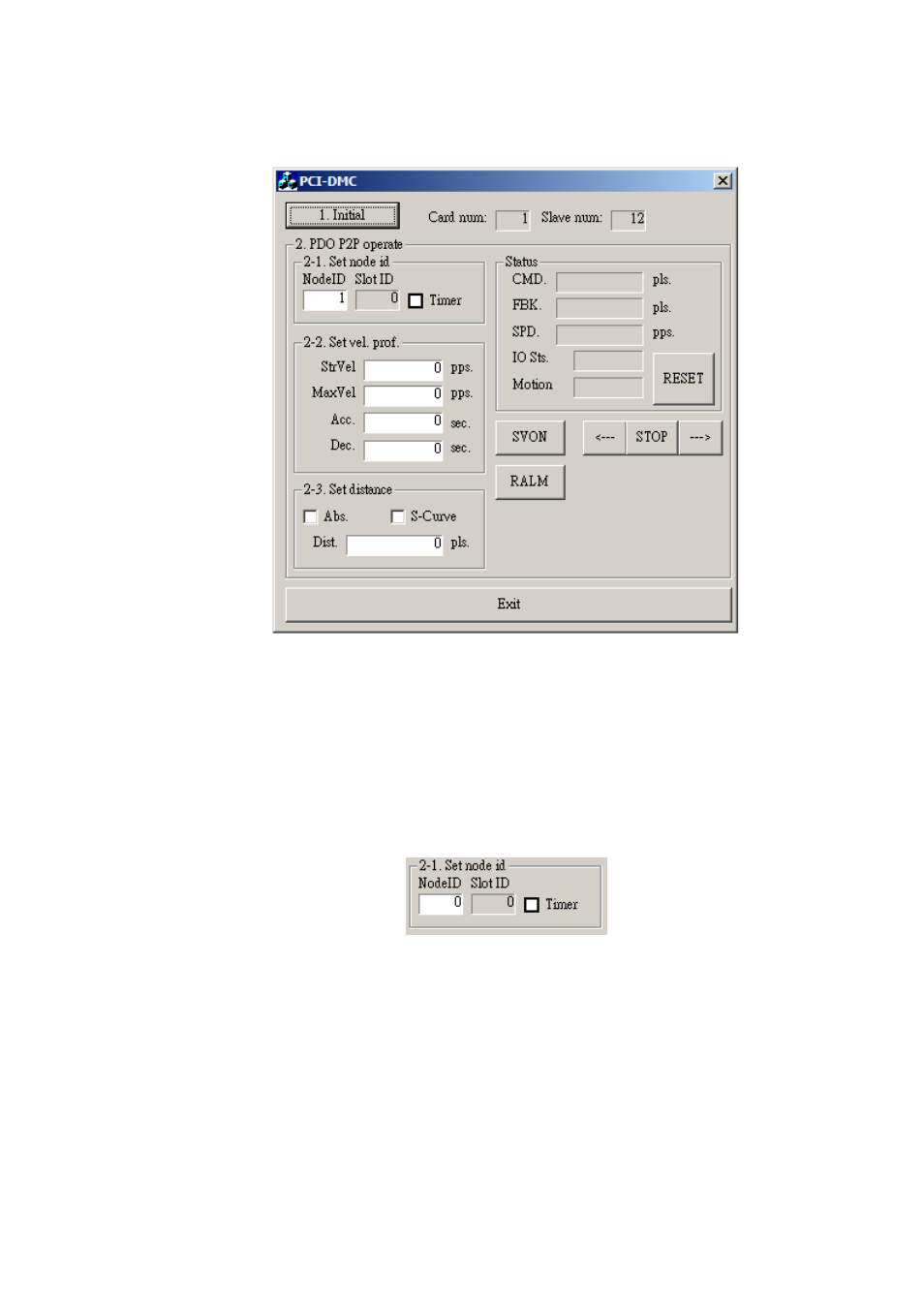

Figure 3.33

1) Card initialization

Click on the “Initial” button to open and initialize the card.
For a detailed description of card initialization, please refer to “Open card” and “Card
initialization” in Section 3.1.2.

2) Set Servo Node ID and enable motion status display

Figure 3.34

Input Node ID and check the “Timer” checkbox to enable motion status display
NodeID item: API function's argument variable “NodeID”.
Timer Checkbox: Check to display the motion status. Uncheck to disable display.
