3 sample application – Delta Electronics High-Speed PCI 12-Axis Motion Control Card PCI-DMC-A01 User Manual
Page 65
Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01
Revised March, 2012
3-43
3.12.3 Sample
Application

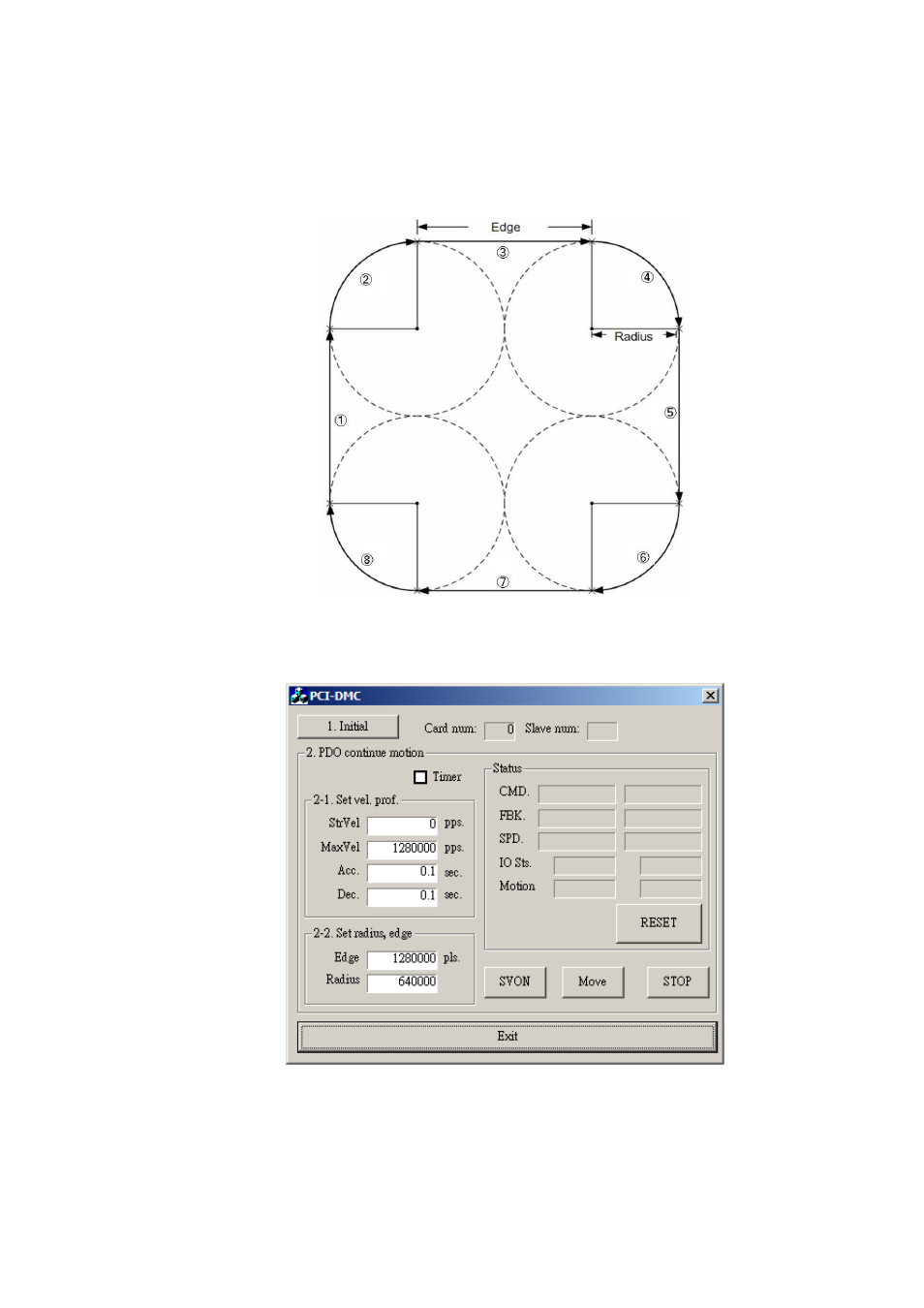

If you wish to perform the continuous interpolation motion illustrated below, you must
execute the following procedure and carry out the commands from ➀ ~ ➇:
Figure 3.60
Program Appearance
Figure 3.61
