Chapter 3 Operating Principles | PCI-DMC-A01 / PCI-DMC-B01

3-112

Revised March, 2012

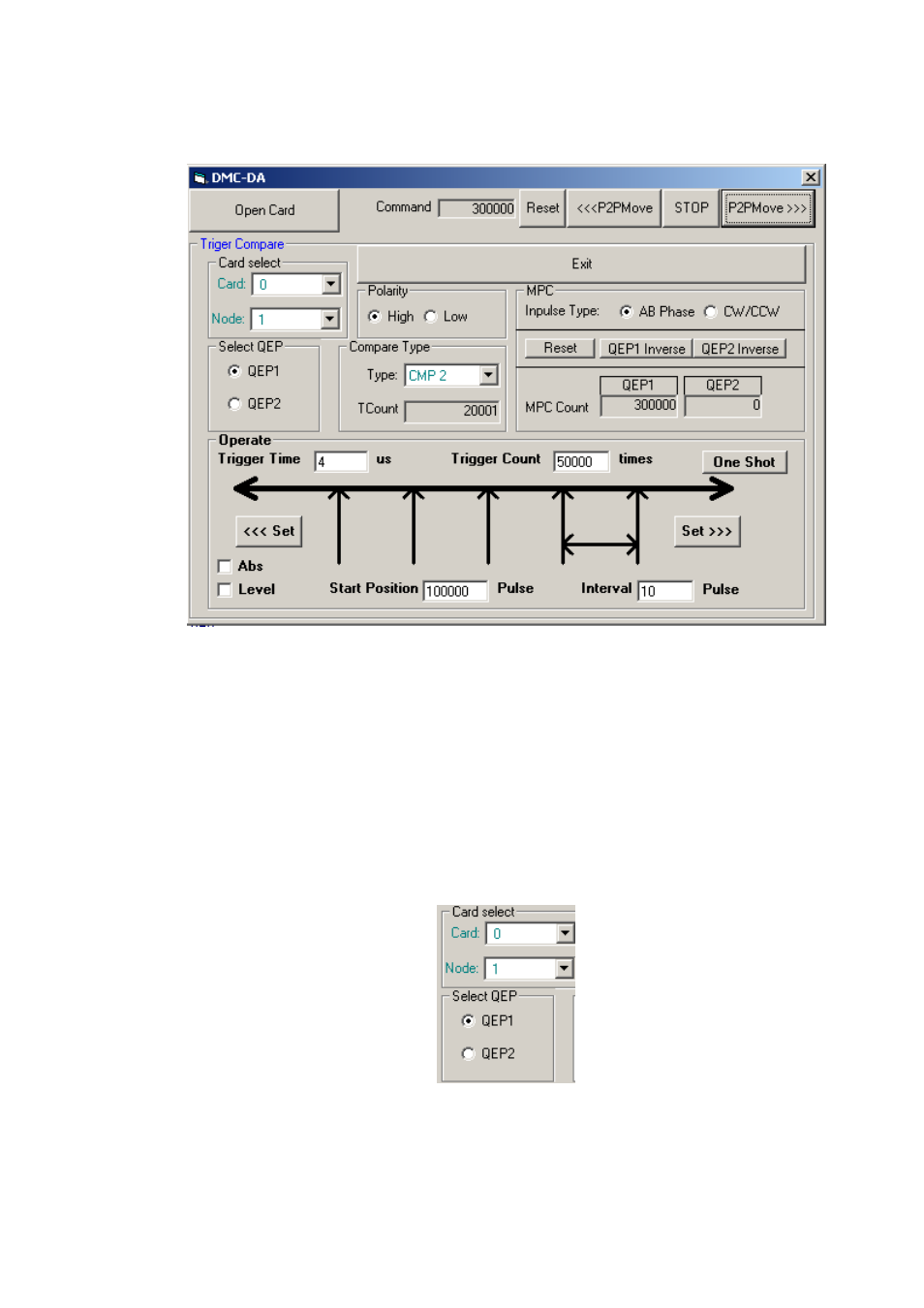

3.29.2 Sample

Application

Program Appearance

Figure 3.147

1) Card initialization:

※First, check to ensure hat the card you have installed is the PCI-DMC-B01
interface card.
Click on the “Open card” button to start card initialization.
For a detailed description of card initialization, please refer to Section 3.1.2 - 1)
Open card.

2) Card ID, Node ID, and QEP option:

Figure 3.148
