Page 59
DV-300 Adjustable Speed Drives
——— WIRING PROCEDURES ———
4
15
Table 4.6.1.2: Cable size for terminals of the option card 6KCV300TBO
Terminals
Max cable connection section
Tightening torque
(Nm)
flexible (mm)
multi-core (mm)
AWG
1...15
0.14...1.5
0.14...1.5
28...16
0,4
GD0250g
The use of a 3 x 0.1 x 0.02 inches (75 x 2.5 x 0.4 mm) flat screwdriver is recommended. Strip the ends of the
cables to a length of 0.26 inch (6.5 mm). Only one unprepared wire (without ferrule) should be connected to
each terminal.
4.6.2 Fitting the option card

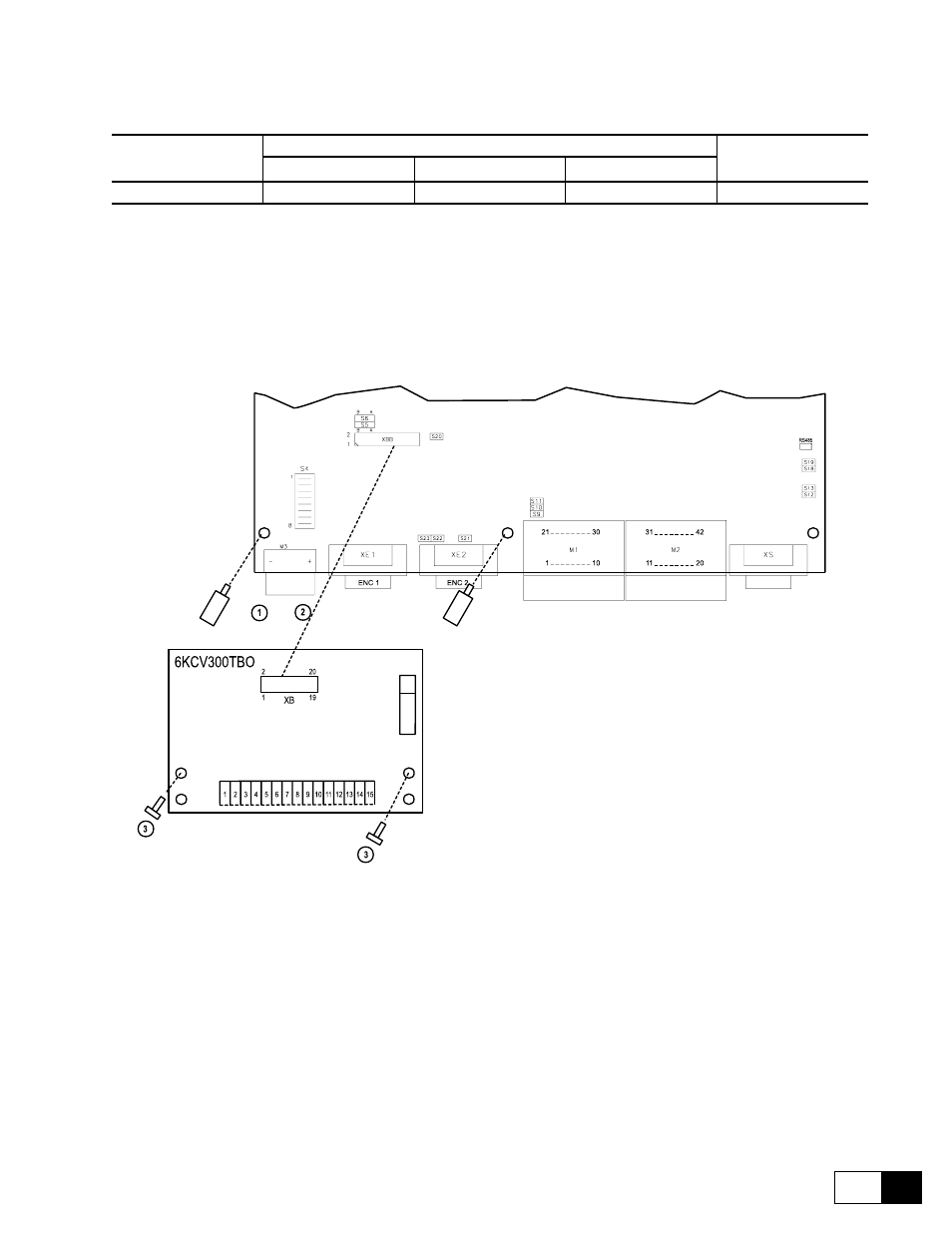

Figure 4.6.2.1: Installing the option card
1 Unscrew the existing fixing screws and screw the spacers in the threaded holes
2 Fix the option card (connector XB of the option in the connector XBB of the device).
3 Fix the option cards on the spacers with the screws.
