GEI-100332Ga
——— FUNCTION DESCRIPTION ———
6
134
Pad A bit 9 0
Pad A bit 10 1 = 2 10 = 1024
Pad A bit 11 0
Pad A bit 12 1 = 2 12 = 4096
Pad A bit 13 0
Pad A bit 14 0
Pad A bit 15 0
Bitword pad A = 2 + 32 + 64 + 1024 + 4096 = 5218
Pad A (B) bit 0...15 Bit variables. The single Bits can be read or written. With the Bitword pad A (B) it is
possible to process a Word. See the example. From the Pad A it is possible to read the
Bits 0.....7 of a digital input. On a digital output it is possible to write all the Bit.
Analog input Analog output Analog output
Analog input Digital input Digital output Digital output
General PAD
Pad 0
0
Pad 1
0
Pad 2
0
Pad 3
0
Pad 4
0
Pad 5
0
Pad 6
0
Bitword pad A
0000h
Bitword pad B
0000h
Pad 7
0
Pad 8
0
Pad 9
0
Pad 10
0
Pad 11
0
Pad 12
0
Pad 13
0
Pad 14
0
Pad 15
0
INTERBUS S, PROFIBUS DP, etc.
Options (Bus Interface ....) Keypad RS 485

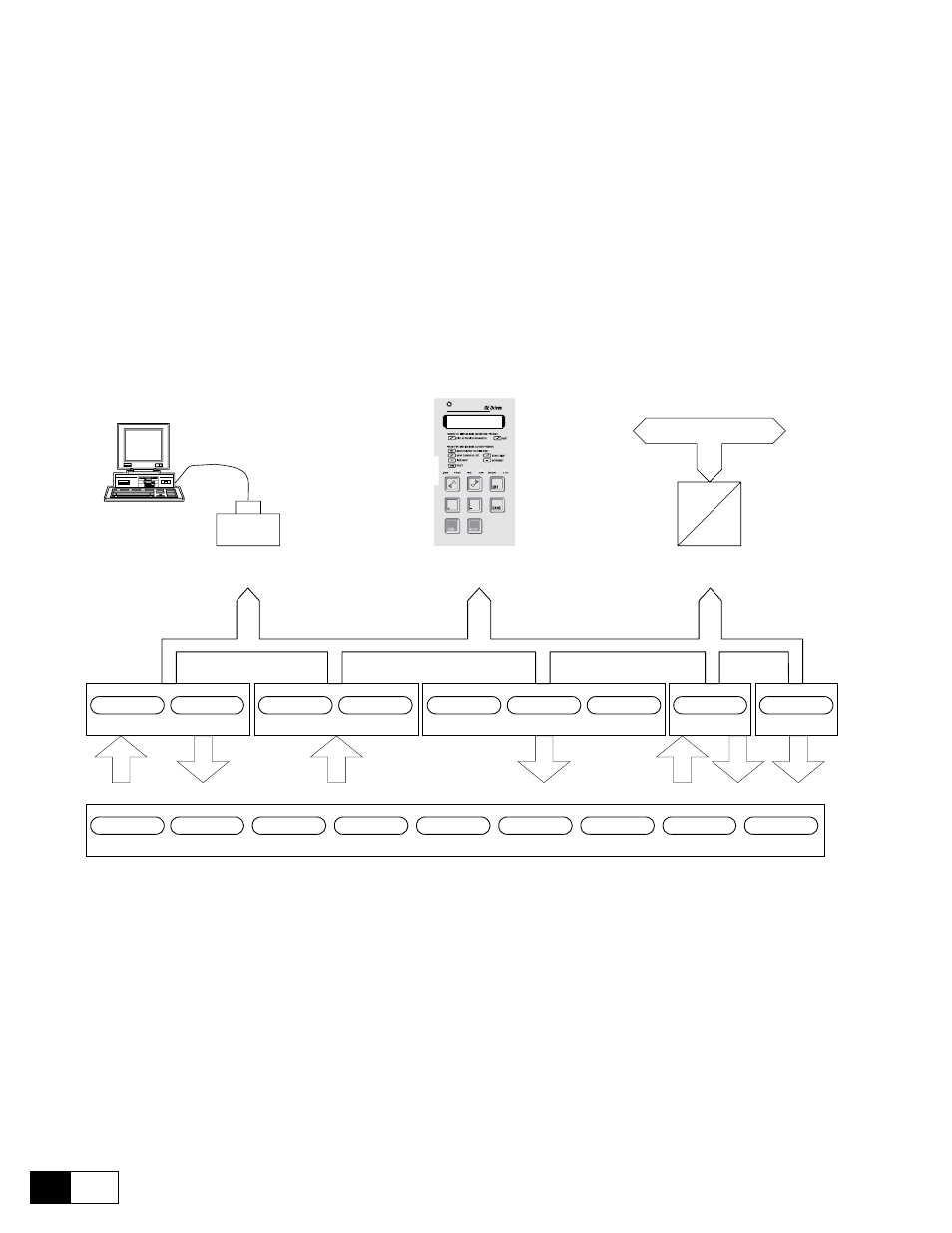

Figure 6.15.5.1: Bus pads
n
ote
When setting the PADs bit to digital I/O the following rules have to be aplied:
1. Assigning PAD A/B bit to a Digital Output will cause the state of the digital output (n)
coming from PAD A/B bit (n-1)
2. Relay 2 can be driven by means of PAD A/B bit 14.
