DV-300 Adjustable Speed Drives
——— FUNCTION DESCRIPTION ———
6
27
6.6.1 Acceleration, Deceleration, Quick Stop
RAMP
Acceleration
[21] Acc delta speed [FF]
[22] Acc delta time [s]
Deceleration
[29] Dec delta speed [FF]
[30] Dec delta time [s]
Quick stop
[37] QStp delta speed [FF]
[38] QStp delta time [s]
Parameter description No.
Value
Standard
Configuration min max
Factory
American
Factory
European
Acc delta speed [FF] 21 0 232-1 100 100 -
Acc delta time [s] 22 0 65535 1 1 -
Dec delta speed [FF] 29 0 232-1 100 100 -
Dec delta time [s] 30 0 65535 1 1 -
QStp delta speed [FF] 37 0 232-1 1000 1000 -
QStp delta time [s] 38 0 65535 1 1 -
S PEED
Time [s]
1
2
3
4
1
2
3
4 Acc delta speed [21]
Acc delta time [22]
Dec delta speed [29]
Dec delta time [30]
Speed
Time [s]
1
2
3
4
1
2
3
4
1
2
3
4 Acc delta speed [21]
Acc delta time [22]
Dec delta speed [29]
Dec delta time [30]
6KDV3...Q2 6KDV3...Q4

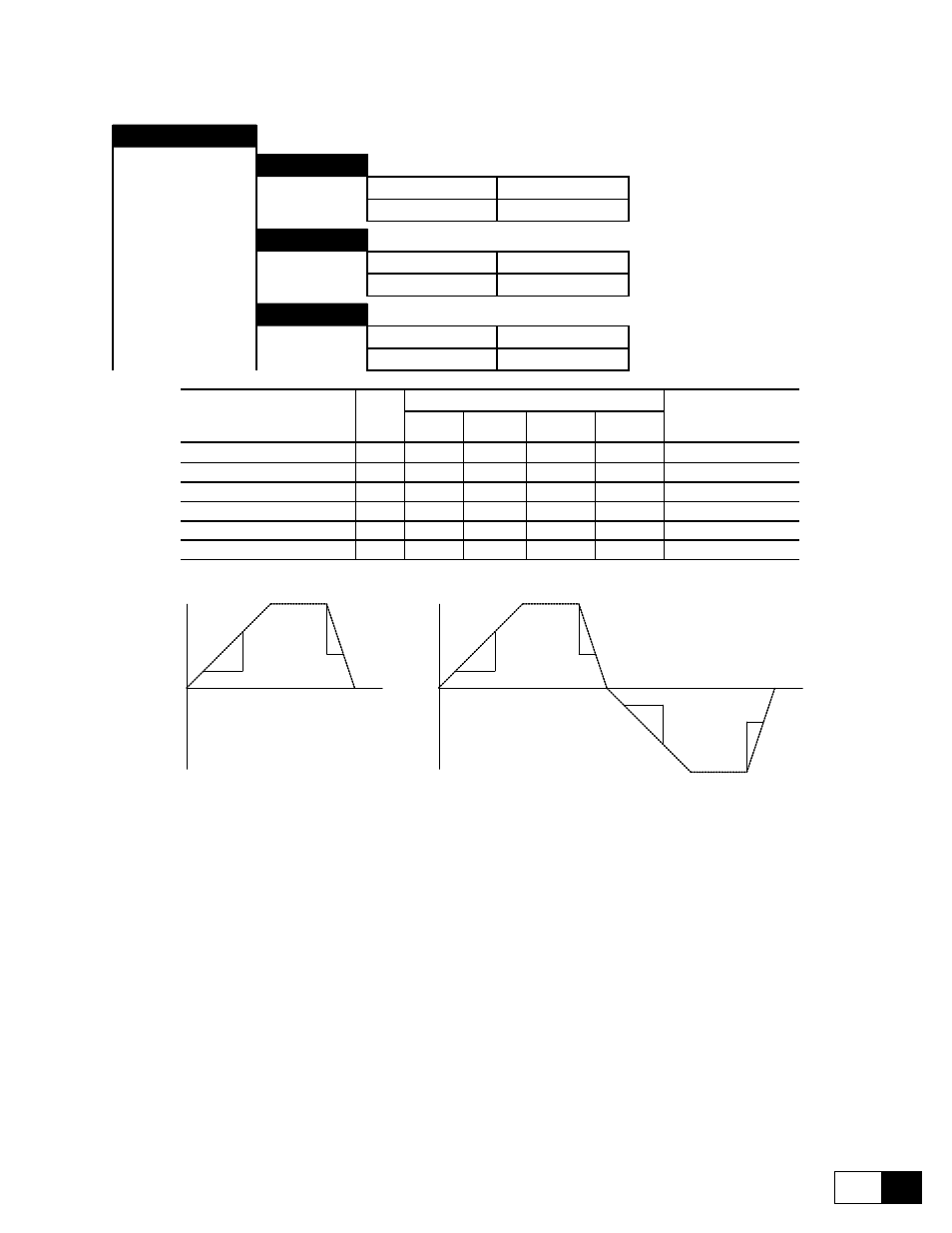

Figure 6.6.1.1: Accel, decel and Quick stop
Acc delta speed Has the same units as the ramp reference value and is based on the factor function.
Acc delta time Is defined in seconds. If “0 s” is entered,the ramp output directly follows the reference
value.
Dec delta speed Has the same units as the ramp reference value and is based on the factor function.
Dec delta time Is defined in seconds. If “0s” is entered, the ramp output directly follows the reference
value.
Qstp delta speed Has the same dimension as the ramp reference value and is based on the factor function.
Qstp delta time Is defined in seconds. If “0 s” is entered, the ramp output follows the reference value.
Quick stop Activates the Quick stop ramp
The acceleration of the drive is defined as a quotient of the Acc delta speed and Acc delta time parameters (see Figure
6.6.1.1). As for the four quadrant converters (6KDV3 ... Q4...) it is the same for both directions of rotation.
