GEI-100332Ga
——— CONVERTER OPERATION ———
5
50
+
S
+ T
Field current Limits
Flux current max
Flux current min
Spd=0 Thr
Voltage reg P / I Base
Field reg P / I Base
Field controller
Field reg P / I I field curve
Voltage regulator
T
M
C1
D1
Output Voltage
Flux
current
min
Flux
current
max
Energy saving
Field economy
Fld reg P gain
2 %
Fld reg I gain
1 %
Flux current %
Nom flux curr
10 A
Motor field curr
10 A
Ifield cnst40
40 %
Ifield cnst90
90 %
Ifield cnst70
70 %
Voltage P
30 %
Voltage I
40 %
Output voltage
Max. out voltage
500 V
Out vlt level
100 %
Flux current max
100 %
Flux current min
70 %
Enable flux weak
Disabled
Speed-0 f weak
Enabled
Motor field curr
10 A
Flux reg mode
Speed zero level
10 rpm
Set flux/if
0
Reset flux / if
0
Flux P base
3277
Flux I Base
3277
Voltage P base
1.8 A/V
Voltage I base
13.0909 A/V*ms
Enable flux reg
Flux reference
S
-
-

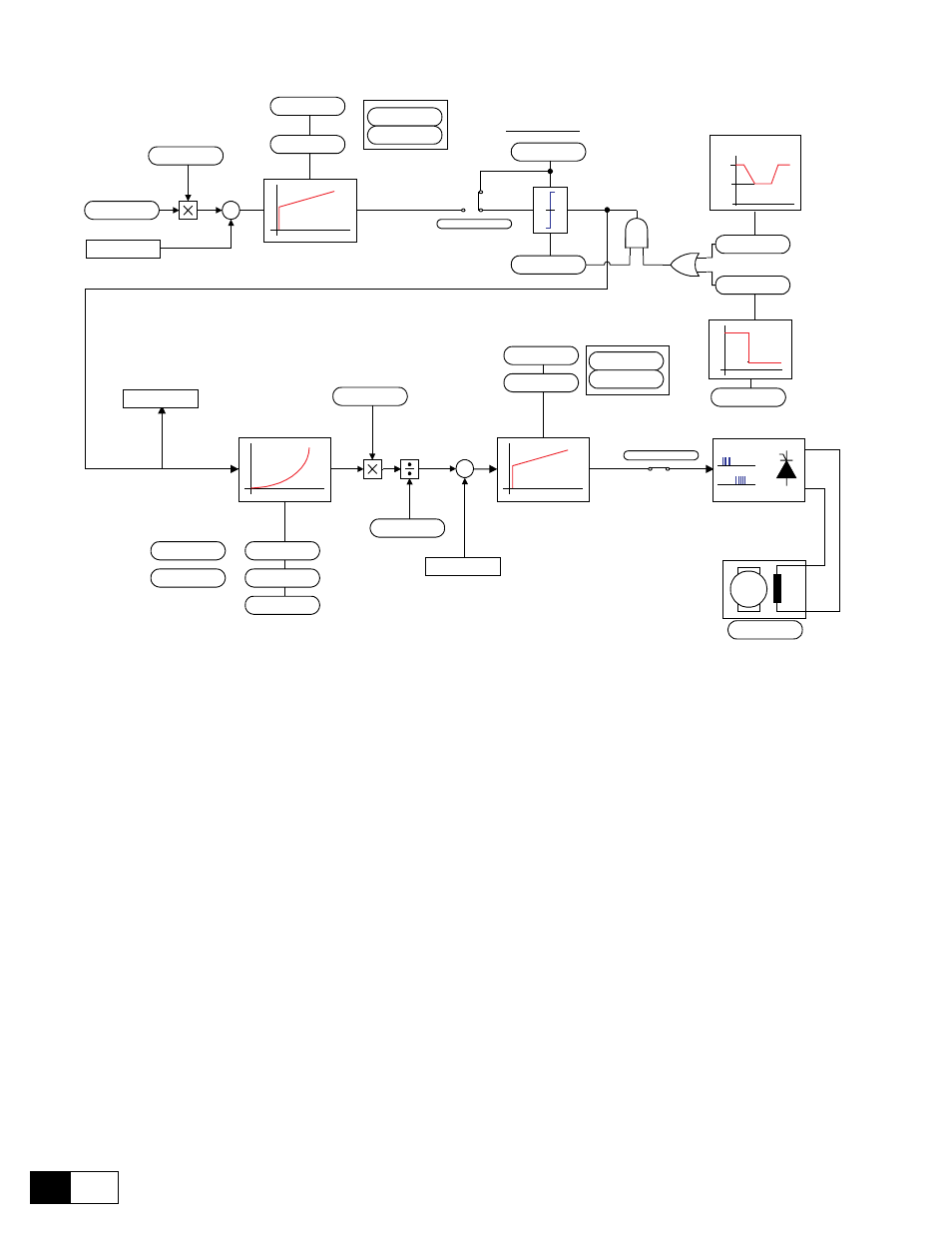

Figure 5.3.7.2: Blocks diagrams of field current regulator
Tuning procedure:
- Reset the curve flux/current via the Reset flux / if command (FLUX REGULATION \ Flux / if curve menu )
- Set the Motor nom flux
:
Motor nom flux parameter (FLUX REGULATION menu)
- Set the output voltage via the Max out voltage parameter (CONFIGURATION menu) and the correspondent
percentage (100%) in the Out vlt level parameter (FLUX REGULATION menu)
- Set the Flux regulator Flux reg mode = Constant current (FLUX REGULATION menu)
- Set the flux percentage at 100% via the Flux current max parameter (FLUX REGULATION menu)
- Operate the Drive speed, so that the Armature voltage (MONITOR\Measurements menu) corresponds to
the value previously set in Max out voltage (CONFIGURATION menu).
- Via the Flux current max parameter decrease the voltage displayed in Armature voltage, up to obtain an
output voltage equal to the 90% of Max out voltage.
Carry out the reading of the current in the Flux current parameter (FLUX REGULATION menu) and insert
it in the I field cnst 90 parameter (FLUX REGULATION\Flux if curve menu).
- Via the Flux current max parameters decrease the voltage displayed in Armature voltage, to obtain an
output voltage equal to the 70% of Max out voltage.
Carry out the reading of the current circulating in the Flux current parameter (FLUX REGULATION menu)
and insert it in the I field cnst 70 parameter (FLUX REGULATION\Flux if curve menu).
- Via the Flux current max parameters decrease the voltage displayed in Armature voltage, to obtain an
output voltage equal to the 40% of Max out voltage.
