——— FUNCTION DESCRIPTION ———
6
86
6.13.4 Speed zero
ADD SPEED FUNCT
Speed zero
[107] Speed zero level [FF]
[108] Speed zero delay [ms]
Parameter description No.
Value
Standard
Configuration min max
Factory
American
Factory
European
Speed zero level [FF] 107 1 32767 10 10 -
Speed zero delay [ms] 108 0 65535 100 100 -
Speed zero thr
Drive not rotating (0)
Drive rotating (1)
395 0 1 *
* This function can be assigned to a programmable digital output.
Speed zero level Switch threshold for Speed zero level. The value applies to both rotation directions for
the 6KDV3 ... Q4 converters. Defined by the units specified in the factor function.
Speed zero delay Definition of a delay time in milliseconds, when the zero speed is reached.
Speed zero thr ”Speed zero thr” message “Drive turning” (via a programmable digital output).
High Drive turning
Low Drive not turning
The LED “Zero Speed” is lit when the drive is not turning.
Speed
Speed zero level [107]
Speed zero thr [395]
Speed zero delay [108]

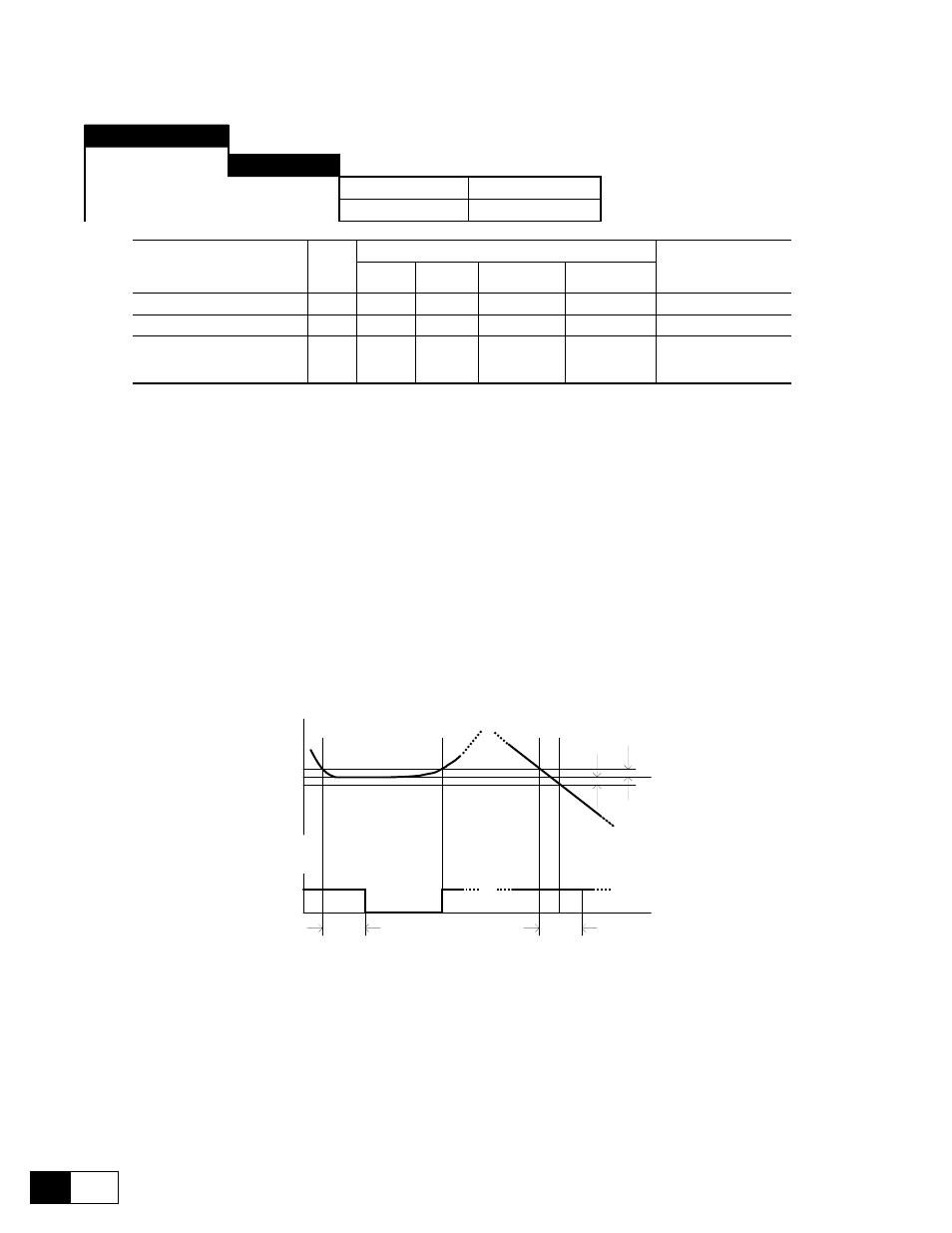

Figure 6.13.4.1: Speed zero
