3 drive keypad description, Keypad – GE Industrial Solutions DV-300 DC Drive Users Manual User Manual
Page 26
GEI-100332Ga
——— DESCRIPTION, COMPONENT IDENTIFICATION AND SPECIFICATIONS ———
2
6
2.3 DRIVE KEYpAD DESCRIpTION

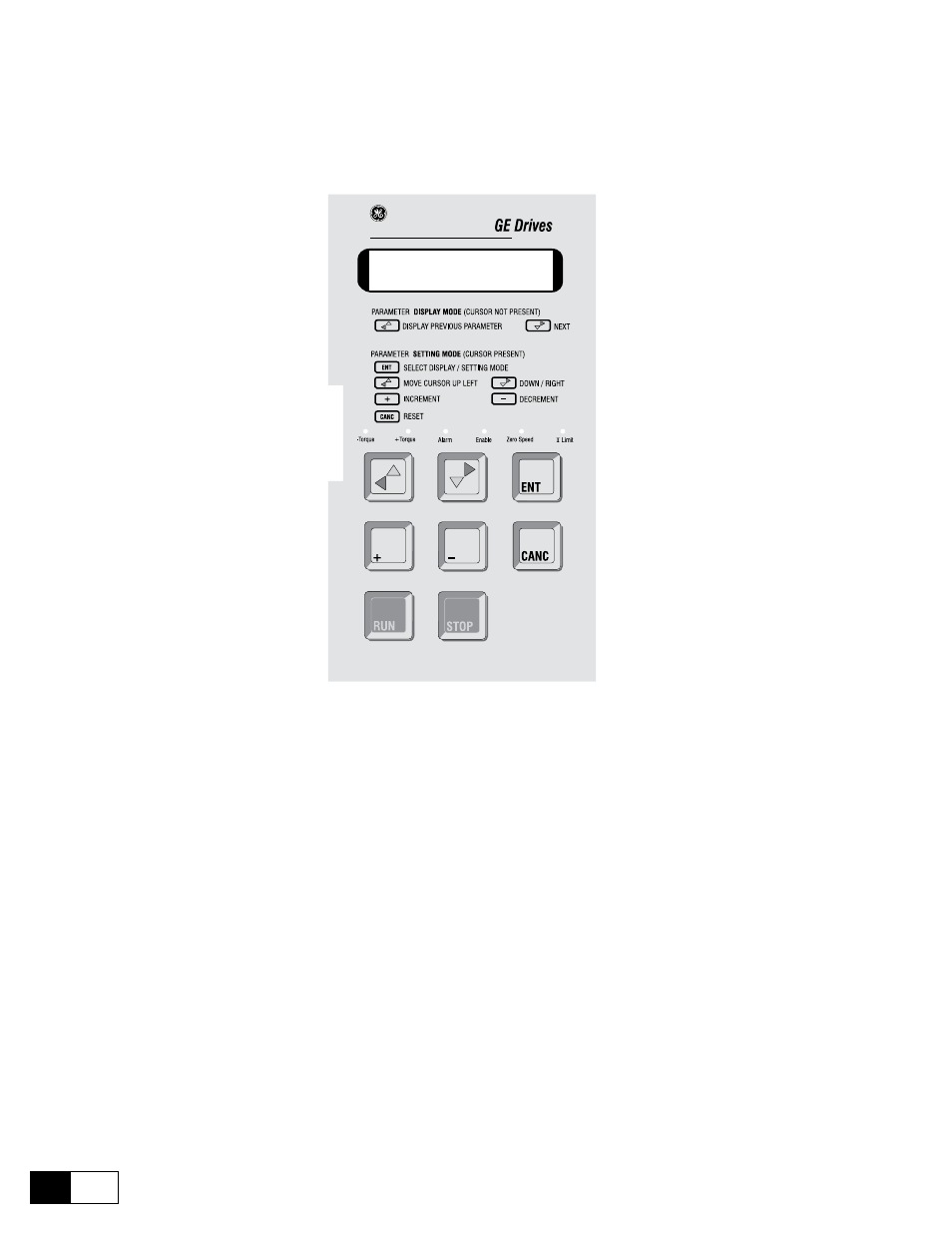

Keypad
The keypad is made of a LCD display with two 16- digit lines and of 8 function buttons.
It is used:
- to command the drive when this system has been selected
- to display the speed, the voltage ..... during the operating time
- to set parameters
LED module KC
In the standard delivery the convert is supplied with the led module mounted on the front cover.
It contains six leds for an easy monitoring of the converter status.
The KC module can be manually removed and replaced with the Keypad , which is connected to the regula-
tion board through the dedicated connector.
On the Keypad, which is supplied as optional, the same leds at the KC module are mounted.
