——— WIRING PROCEDURES ———
4
6
4.4 REGuLATION SECTION
The R-TPD32-GE Regulation card is factory set according to the device type. When fitting a regulator card as
a spare, remember to set switch S15 (device type selection), S4 (tachometer feedback) and S14 (field current
resistor selection) accordingly.
As for sizes above 850 / 1050 A (American / European) see Appendix A (GEI-100332C).
4.4.1 R-TpD32-GE Regulation Card
ENC 1 ENC 2
21 30
1 10
31 42
11 20
RS485

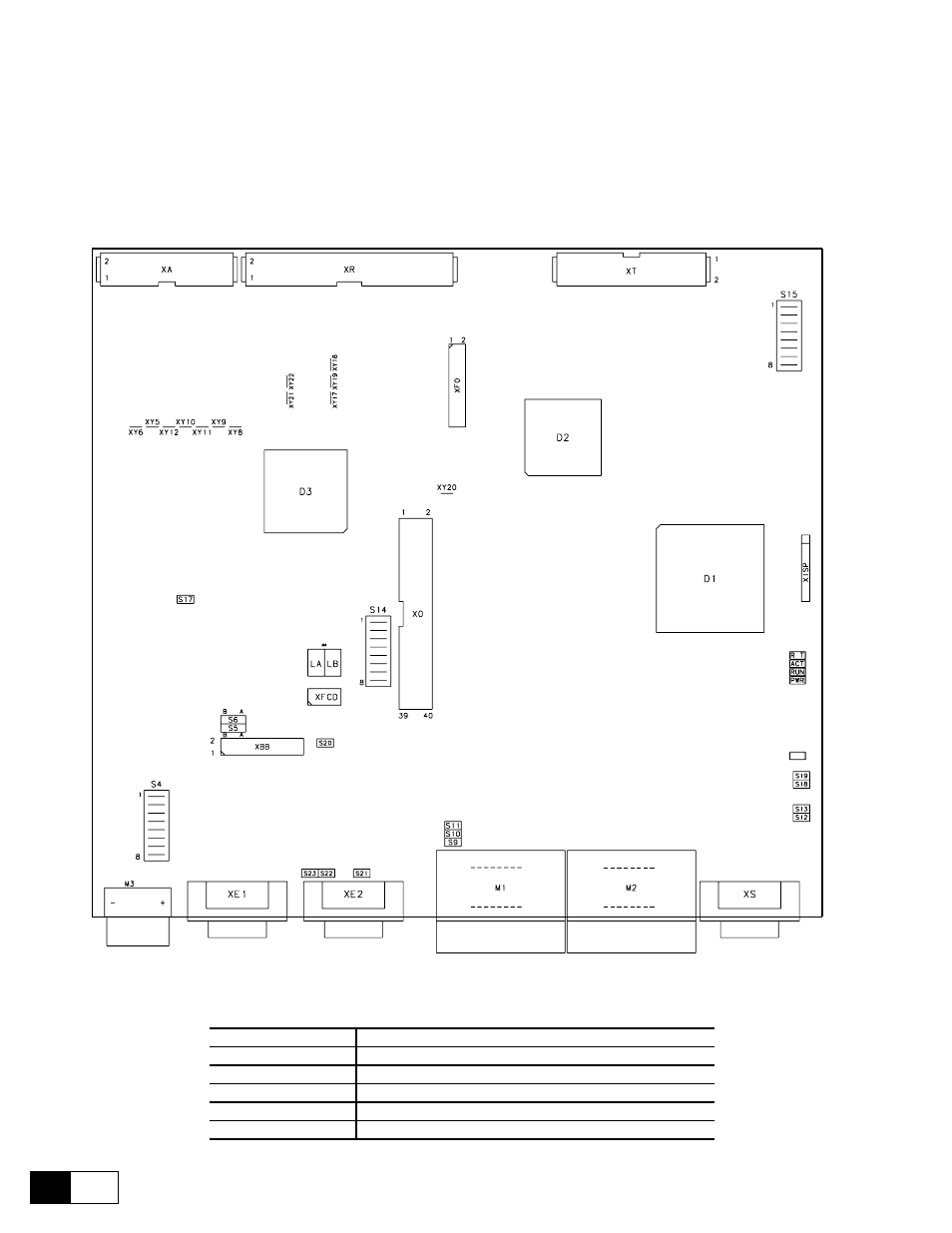

Figure 4.4.1: R-TPD32-GE regulation card
Table 4.4.1: LEDs on the R-TPD32-GE card
Designation Function
PWR ON when the +5 V voltage is present at the right value
RST ON when the signal RST is active
RS485 ON when the RS485 interface is supplied
ACT It is lit when the SCR driving system is active
RUN The LED blinks during the regulation phase
