S t a t i c m e m o r y c o n t r o l l e r
1 4 0 N S 9 7 5 0 H a r d w a r e R e f e r e n c e

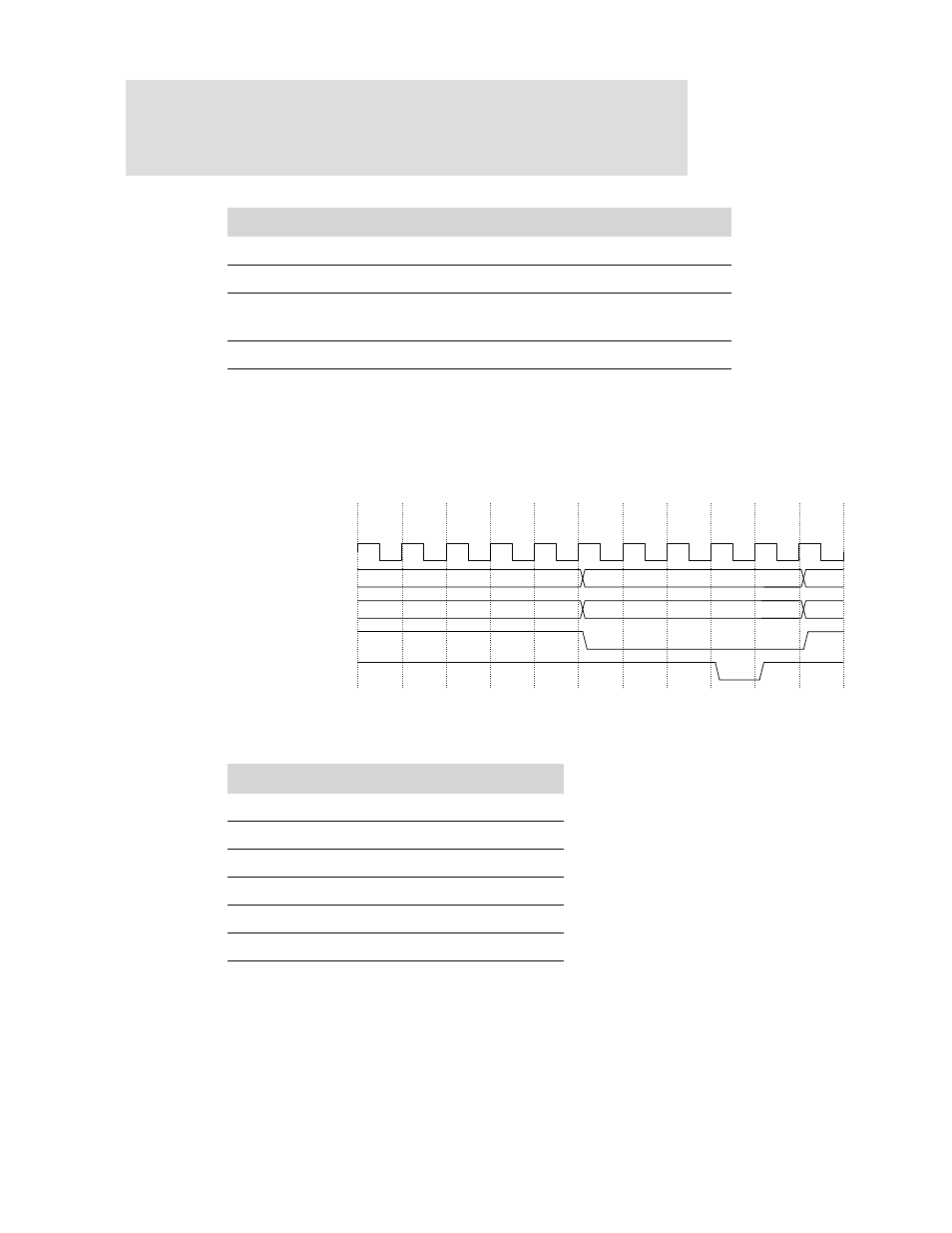

Figure 51 shows a single external memory write transfer with two write enable delay
states (
WAITWEN=2
). One wait state is added. Table 69 provides the timing
parameters.
Figure 51: External memory 2 write enable delay write timing diagram
T6-T7 Wait state 1.
T7-T8 Wait state 2.
T8-T9 Static memory writes the data.
Write enable taken inactive.
T9-T10 Static memory control signals taken inactive.
Timing parameters Value
WAITRD N/A
WAITOEN N/A
WAITPAGE N/A
WAITWR 2
WAITWEN 2
WAITTURN N/A
Table 69: Static memory timing parameters
Cycle Description
Table 68: External memory 2 wait state write
ADDR
DATAOUT
A
STCSOUT_n
D(A)
WEOUT
clk_out
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10
