Quick Start Guide
Digi JumpStart Kit
Windows Embedded CE 6.0
™ ConnectCore Wi-9M 2443
®

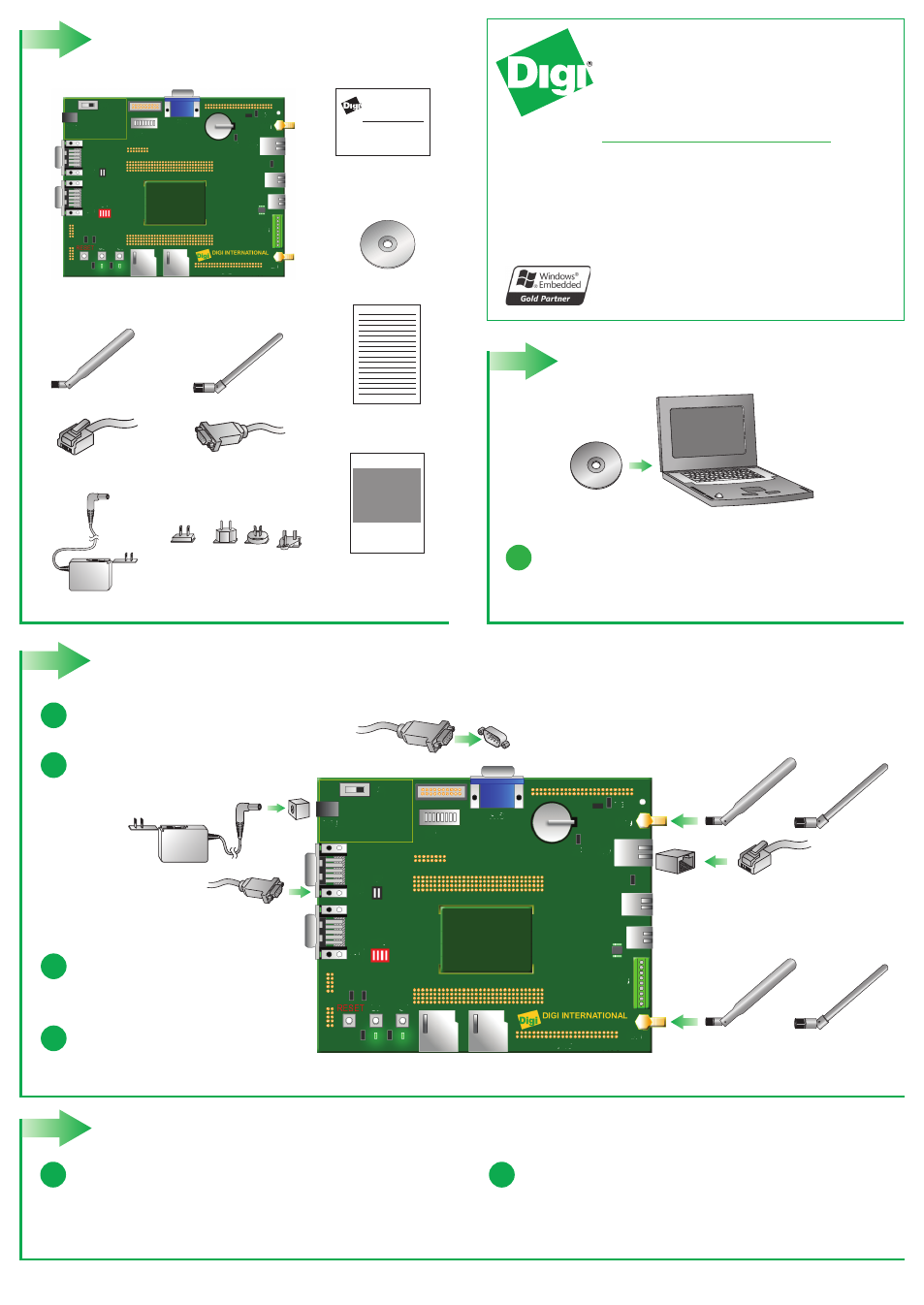

Verify that your kit contains one of each of these components:
Verify Kit Contents
Quick Start Guide
(this guide)
Quick Start Guide
Digi JumpStart Kit
Windows Embedded CE 6.0
™ ConnectCore Wi-9M 2443
®
Certification Card
Serial Null Modem Cable Ethernet Cable
802.11 a/b/g
Antenna
802.11 b/g
Antenna
Digi JumpStart CD
Power Supply
Alternative Power Supply Plugs
Windows Embedded
CE 6.0 180-Day
Evaluation Kit
Connect Hardware to Development Board
What’s Next?
Software instructions are on the Welcome page of the CD-ROM.
When the software installation is complete, follow the instructions in
Building Your First Application. This guide introduces you to quickly
creating and running an application in the target platform. Building
Your First Application is accessible from the Start menu group.
After going through Building Your First Application, you are
encouraged to read the ‘Digi JumpStart for Windows Embedded
CE 6.0 User’s Guide,’ accessible from the Visual Studio menu
Help > Help Contents, which explains in detail all the elements of the
development process such as kernel configuration, debugging, file
transfer, firmware update, etc.
Insert the Digi JumpStart CD. If autorun is enabled, the “Welcome”
web page will appear. If not, open the file “welcome.html” on the
Digi JumpStart CD. Follow the instructions on the “Welcome” page
to install Digi Embedded Windows CE software.
a
Install Software
b
© Digi International, Inc., 2011
Digi, Digi International, ConnectCore, Digi JumpStart Kit, and the Digi logo are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are the property of their respective owners.
Connect Serial Port A
Add the appropriate plug
and connect the power supply.
Do not switch power on.
Connect Ethernet
and/or antennas
Connect VGA cable from
VGA monitor (not included
in kit) to VGA port
X18 X29
X5
S2
X24
S7
X27
S6
X16
S3 S5
X33
X23
X6
X7 J1
S4
Development Board
or
b
802.11 a/b/g
antenna
802.11 b/g
antenna
or
b
802.11 a/b/g
antenna
802.11 b/g
antenna
Connect to VGA Monitor
c
X18
X29
X5
S2
X24
S7
X27
S6
X16
S3 S5
X33
X23
X6
X7 J1
S4
ON
VGA Port [X18]
Power Connector [X24]
Connect to PC
Serial COM Port
a
Serial Port A [X27]
Development Board
Connect to Network
Secondary [X29]
Primary [X23]
Ethernet Port [X7]
d
b
