4-48
IM 04L31A01-01E

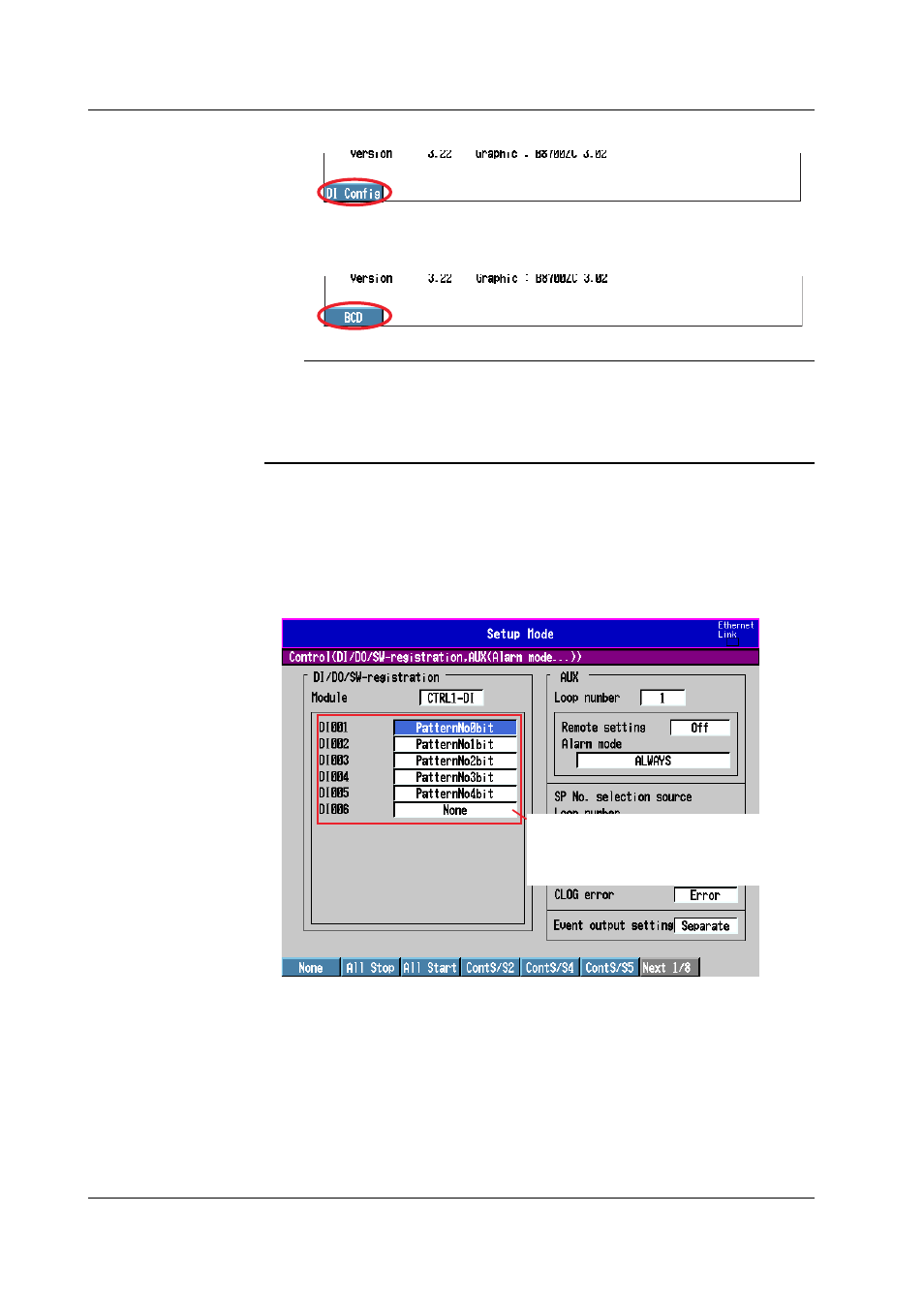

2.
Press the
[DI Config] soft key
.
3.
Press the
[BCD] soft key
.
*
If BCD is currently specified, the [Binary] soft key is displayed. If binary specified, the
[BCD] soft key is displayed.
Note
•
The binary/BCD setting is not saved to the setup file. Thus, the binary/BCD setting does
not change even if you load the setup data into the CX. Moreover, the binary/BCD setting
does not change when the CX is turned OFF.
•
The binary/BCD setting cannot be changed using communication commands or a PC
software application (such as DAQSTANDARD).
Registering Contact Inputs When Using BCD Codes
• Opening the Setting Display
MENU key
(switch to Set mode (control)) >
Hold down the FUNC key for 3 seconds
(switch to basic setting mode) >
#10 soft key
(select [Control]) >
#2 soft key
(select
[DI/DO/SW-registration])
The following display appears.
When specifying program pattern numbers 20–30,
use 6 bits. In that case, always set the sixth bit
(located at [PatternNo5bit]) to “None”
(see the table on the next page).
4.19 Settings for Switching the Program Patterns Using Contact Inputs with BCD Codes (Version 3.20 or Later)
