Chapter 18 Testing HDCP
To run the 3C-II series HDCP compliance tests on an HDMI repeater:
For the 882E releases prior to 2.17.x, the 3C-II-01 test is run for each of the two read
configurations: 1) short read and 2) combined read. For the 2.17.x release, these multiple
iterations are handled in the batch mode but you can choose to run them through the
command line as well.
Refer to “
To run the 3C-II-01 HDCP compliance test on an HDMI repeater:
for procedures on running the 3C-II-01 test in both configurations.
1. For the 882E analyzer connect the cables as follows:
a. Apply power to the Encryption Status Tester (EST) using the power adapter
supplied with the EST.
b. Connect an HDMI cable from the repeater device under test input to the EST HDMI
port labeled, “HDMI OUT.”
c. Connect an HDMI cable from the 882 HDMI Rx 1 port to the HDMI output of the
repeater device under test.
d. Connect an HDMI cable from the 882 HDMI Tx 1 port to the EST HDMI port labeled
“HDMI IN.”
e. Connect an HDMI cable from the 882 HDMI Tx 2 port to the EST HDMI port labeled
“HDMI.”

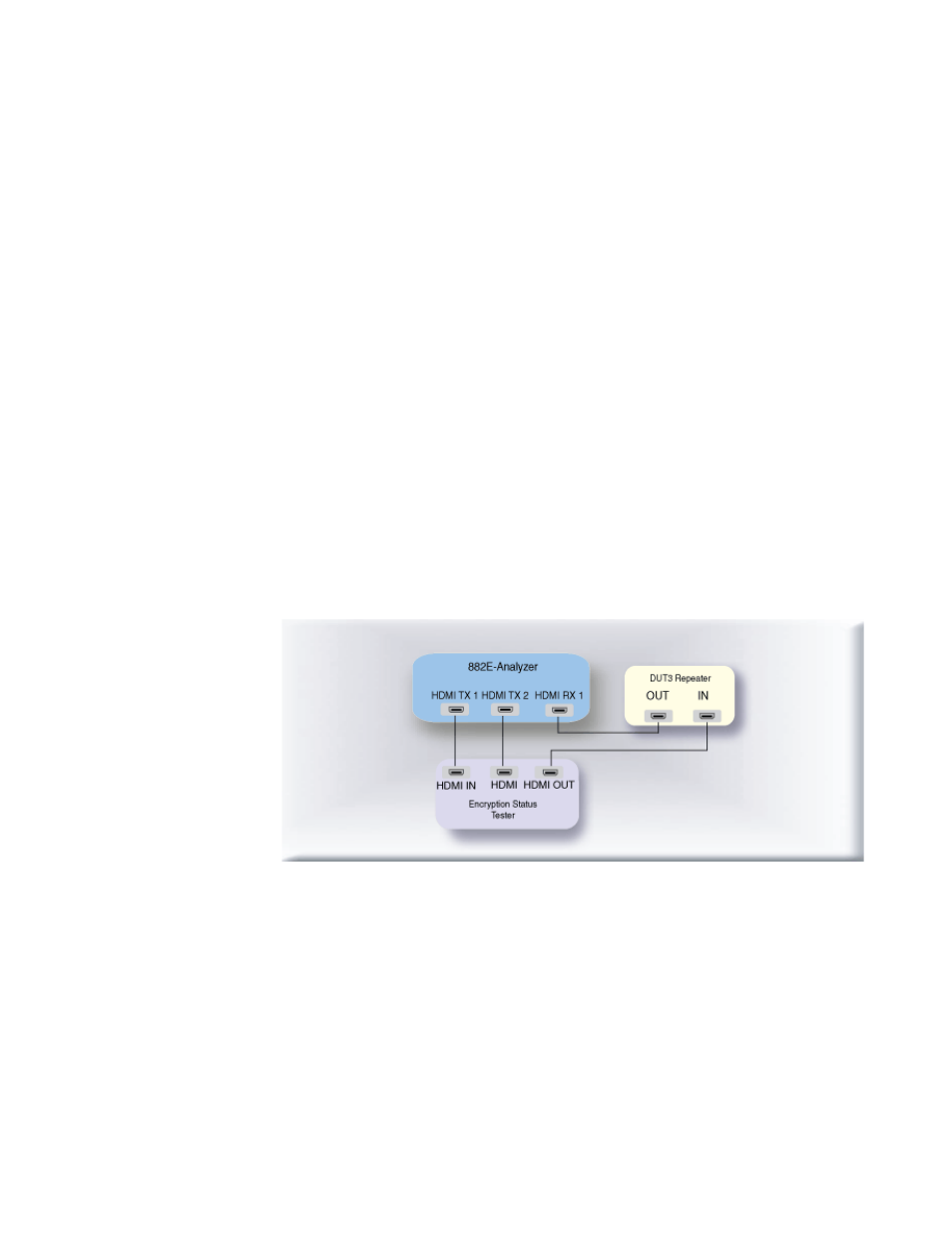

The following diagram depicts the test setup for the 882EA:
