881/882 Video Test Generator User Guide (Rev A.22) 635
To run the 3B-01 HDCP compliance test on an HDMI repeater:
For the 882E releases prior to 2.17.x and for the 882CA, the 3B-01 tests are required
to be run with 2 different set ups through the command line for both read configurations:
1) short read and 2) long read.
1. For the 882E analyzer connect the cables as follows:
a. Apply power to the Encryption Status Tester (EST) using the power adapter
supplied with the EST.
b. Connect an HDMI cable from the repeater device under test output to the EST
HDMI port labeled, “HDMI IN.”
c. Connect an HDMI cable from a compliant source device output to the input of the
repeater device under test.
d. Connect an HDMI cable from the 882 HDMI Rx 1 port to the EST HDMI port labeled
“HDMI OUT.”
e. Connect an HDMI cable from the 882 HDMI Tx 2 port to the EST HDMI port labeled
“HDMI.”
f. Connect an HDMI cable from the 882 HDMI Tx 1 port to the HDMI input of the
display device (used to monitor the video).

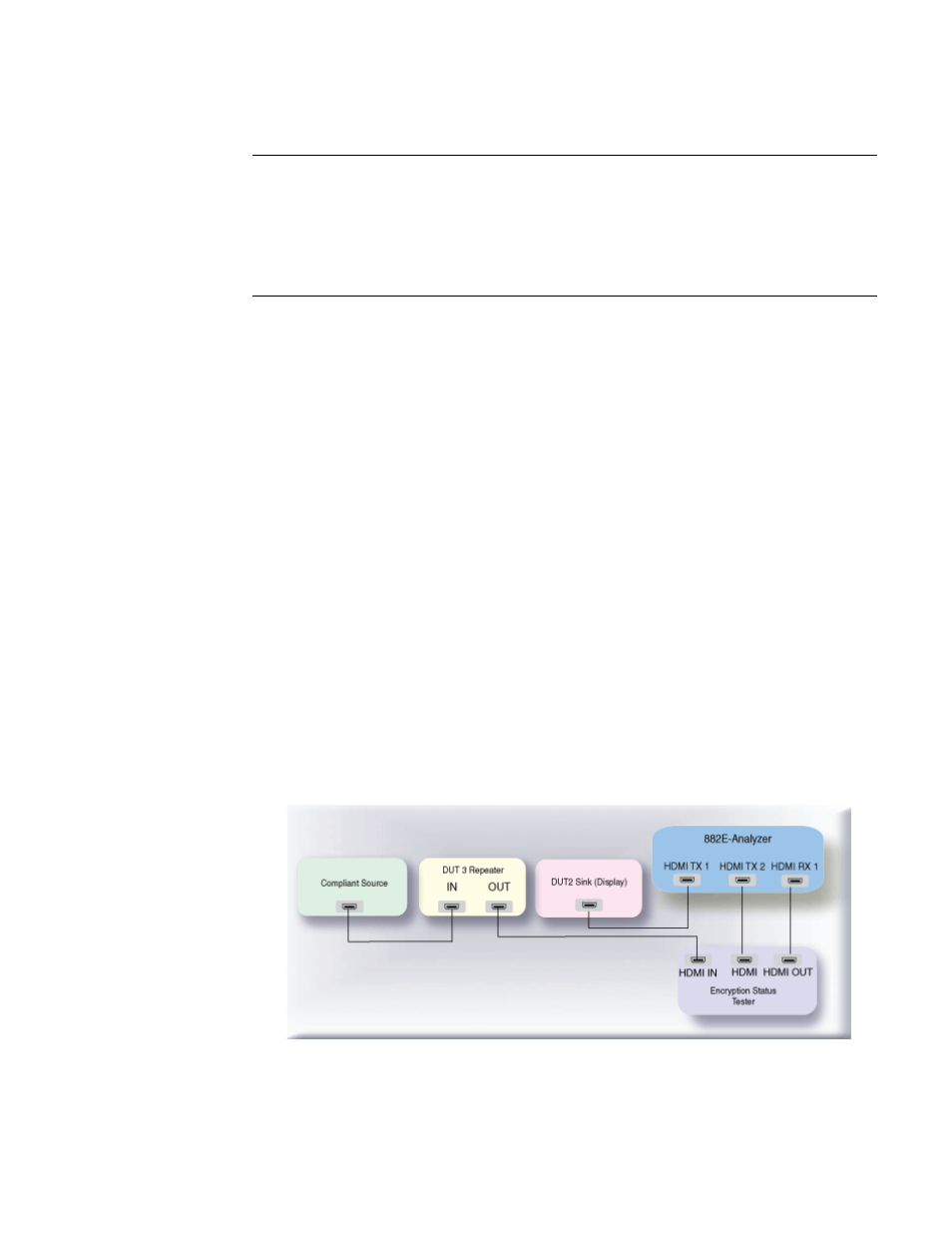

The following diagram depicts the test setup for the 882EA:
2. Ensure that the 882 settings used for the 3B-0x series described in “ To run the 3B
series HDCP compliance tests on an HDMI repeater: ” on page 628, are maintained
27 3B_03 (Repeater Downstream
w/Repeater) Irregular Procedure: (Second Part of
Authentication) Verify V’
28 3B_04 (Repeater Downstream
w/Repeater) Irregular Procedure: (Second Part of
Authentication) MAX_DEVS_EXCEEDED
29 3B_05 (Repeater Downstream
w/Repeater) Irregular Procedure: (Second Part of
Authentication) MAX_CASCADE_EXCEEDED
CPTX:CPTR
I ndex Test Description
