494 Chapter 15 Auxiliary Channel Analyzer
8. Initiate the actions necessary to cause CEC messages to be transmitted between the
HDMI source and sink device.

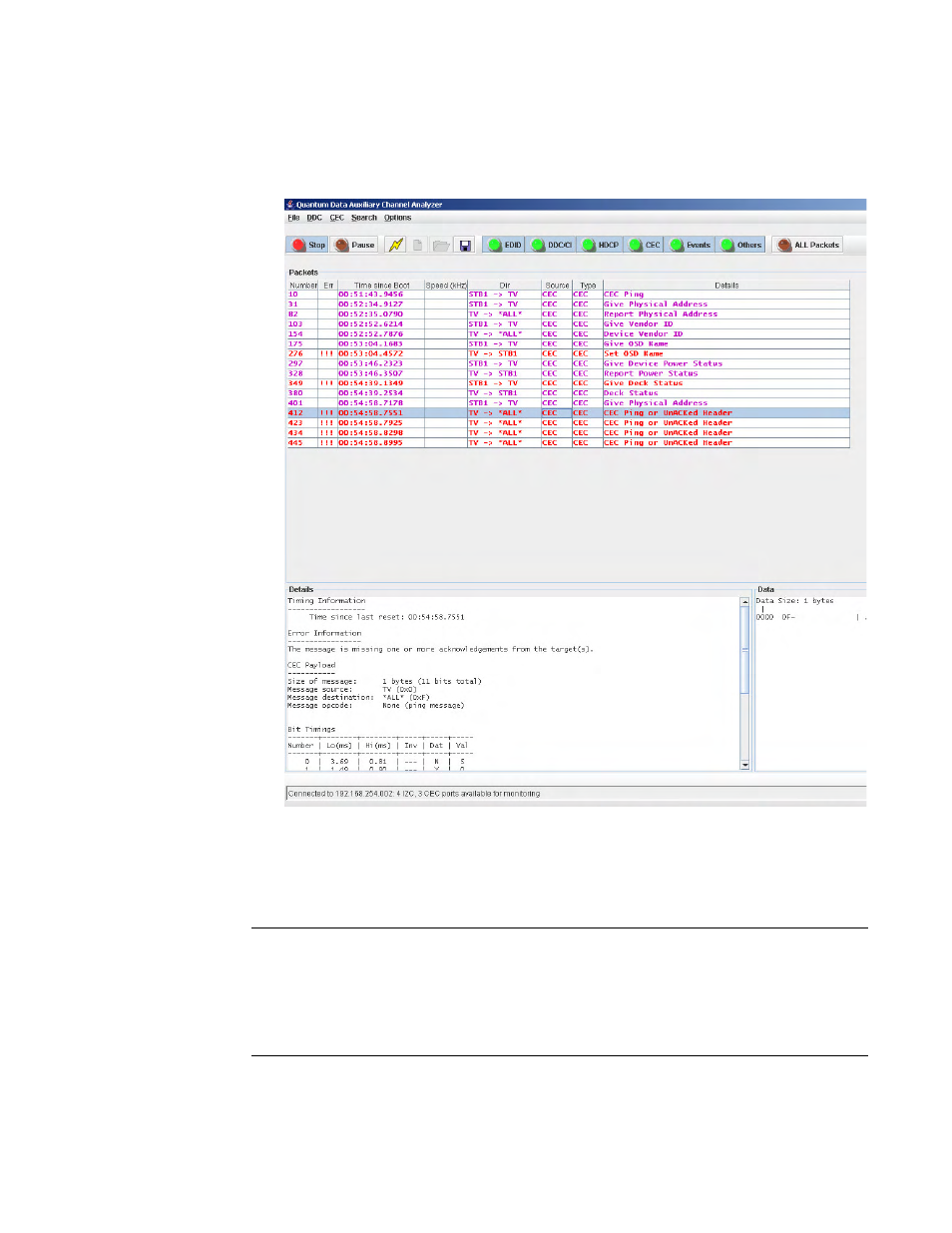

The ACA begins the trace and displays the results in the main window, as shown below.
T
When you click on a specific transaction you can see the detail timing information are
the data. The table below describes the information in the Details and Data panels.
Details Data
Time since last reset: Field not currently sup-
ported Data size: The number of bytes in the message
Size of message: The size of the message in
bytes (example 5 bytes) Data: The data is shown for each message. The
“+” sign indicates that the last bit, the acknowl-
edge bit is a logical 1; the “-” sign indicates that
the last bit, the acknowledge bit was a logical 0.
