881/882 Video Test Generator User Guide
(Rev A.22)
593
4. Choose the
HDCPprod test image.
If you are testing a device with a production key, select the
HdcpProd image. These
test images assume that both the HDCP transmitter and receiver have a production
key.

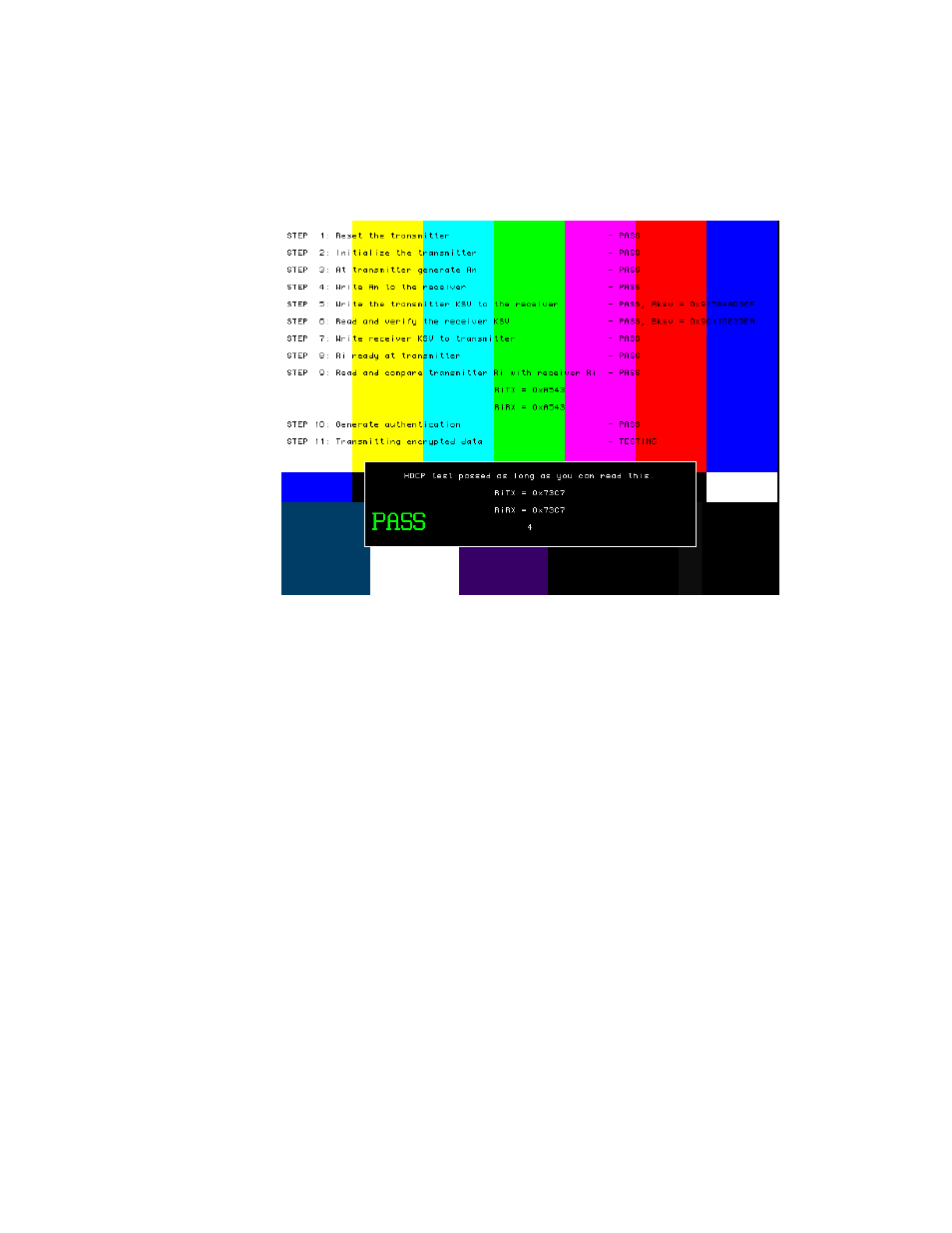

The image will indicate if the test passed or failed. If the test fails, see “
5. To test another device, connect the cable to the new device.
The HDCP test starts automatically.
Alternatively, you can enter the following command to initiate and run the test with any
image displayed. A zero is returned if the HDCP test is successful.
HDCP? (OUT1:HDCP?, OUT2:HDCP?)
You can also specify a number of frames to run the test for. For example to run the test
for 2000 frames you would enter:
