546 Chapter 16 Testing EDID
Using Tektronix Test Instruments
The 882 series analyzer provides EDID emulation and DDC, EDID, hot plug and CEC
transaction monitoring. The TPA-MP-4R provides +3.3Vcc via the P40 2-wire cable. The
TPA-MP-4R connects the 882E/CA HDMI Rx 1 to the Tek TPA-P-DI via P30 8-wire cable.
TPA-P-DI connects Rx DDC, Hot Plug Detect and CEC to the source device under test.

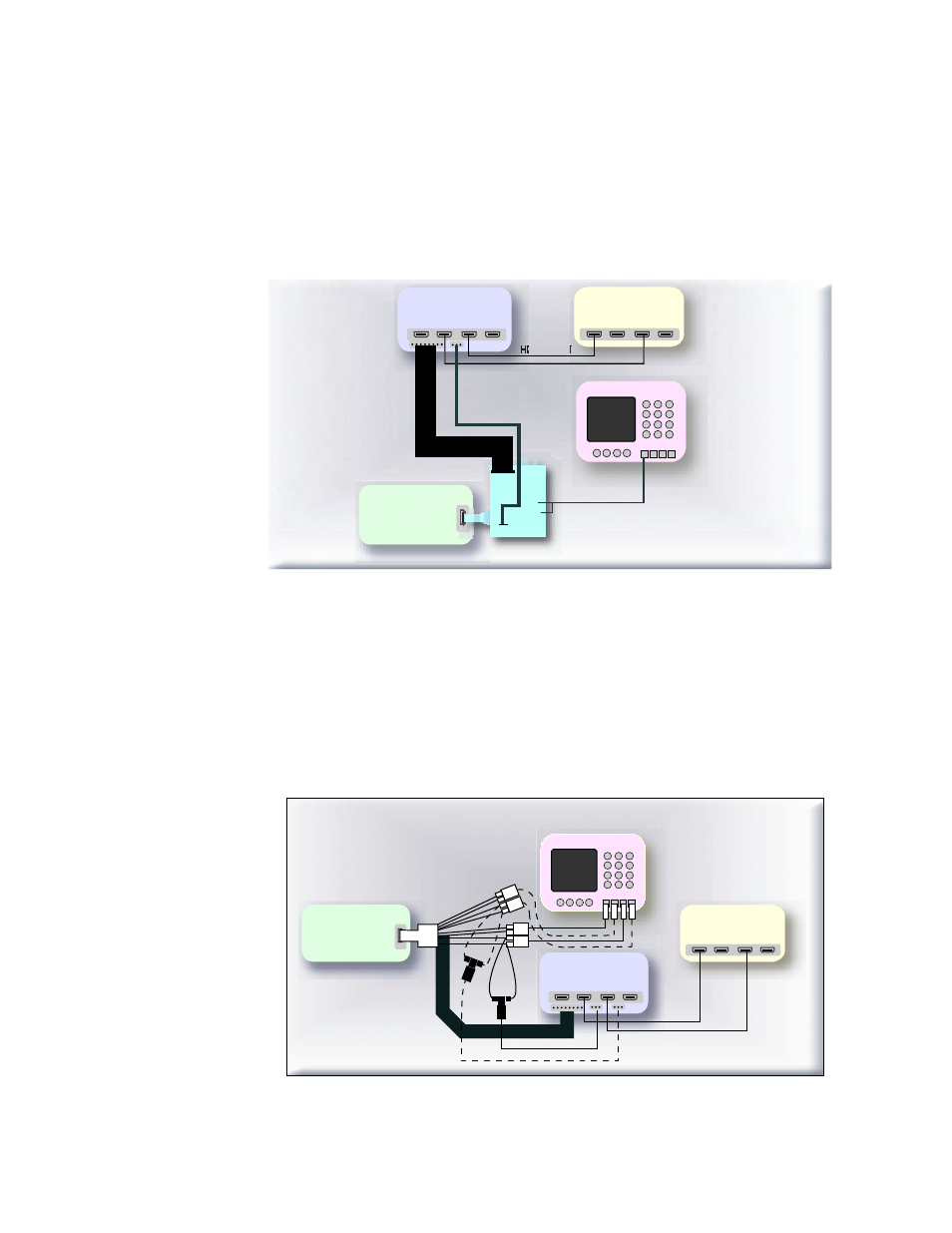

The following illustration depicts these connections.
Using Agilent Test Instruments
The 882E/CA provides EDID emulation and DDC, EDID, hot plug and CEC transaction
monitoring. The TPA-MP-4R provides +3.3Vcc via the Pomona 5069 8-wire cable. The
TPA-MP-4R connects the 882CA HDMI Rx 1 to the Agilent TPA-P via 5069 8-wire cable.
TPA-P connects Rx DDC, Hot Plug Detect and CEC to the source device under test. The
following illustration depicts these connections.
($-)
