1006 Appendix B Image Reference

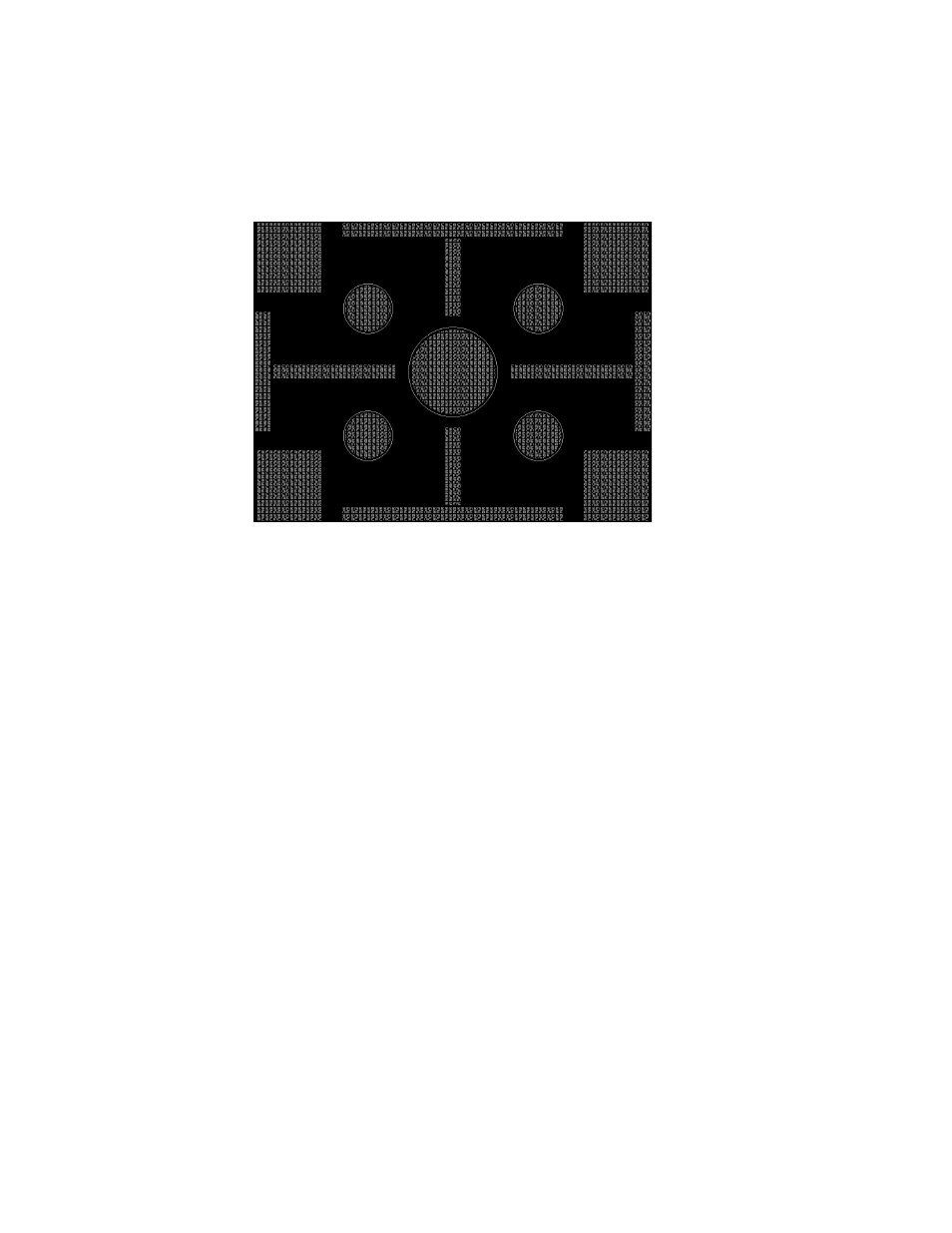

Apple1
Description Special test image developed per customer specifications. A secondary version shows
reverse (black characters on white background).
Audio LR, AudioLRf, AudioRAT, Audio_L, Audio_Lf, Audio_R, Audio_Rf
Description Used to configure HDMI audio output signal. The AudioLR is shown below. For more
information, see “
Testing HDMI audio ” on page 331.
BarBlack
Description Special test image developed per customer specifications.
