502 Chapter 15 Auxiliary Channel Analyzer
3. For the TPA-MP-4R, connect the cables as follows:
a. Connect an HDMI-to-HDMI cable between the HDMI connector on the source
device under test and the HDMI connector on the TPA-MP-4R Test Point Adapter
labeled “Source DUT”.
b. Connect an HDMI-to-HDMI cable between the HDMI connector on the sink device
under test and the HDMI connector on the TPA-MP-4R Test Point Adapter labeled
“Sink DUT”.
c. Connect an HDMI-to-HDMI cable between the HDMI OUT connector on the 882
generator/analyzer and the HDMI connector on the TPA-MP-4R Test Point Adapter
labeled “Sink DUT”.

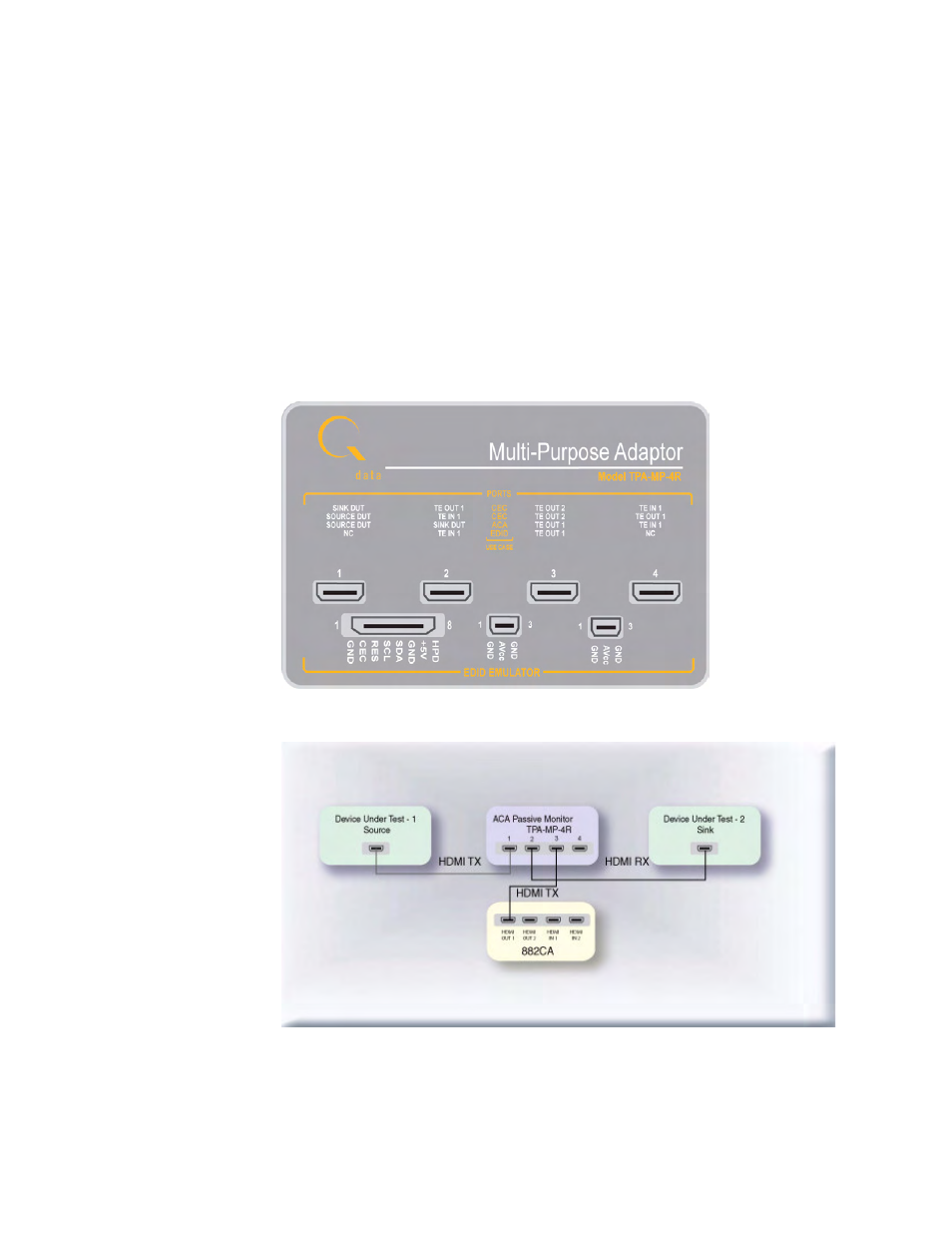

The figure below shows the TPA-MP-4R device.
The following diagram illustrates the test setup.
