460 Chapter 14 DisplayPort Link Layer Testing
5. Click on the Sink Config tab.

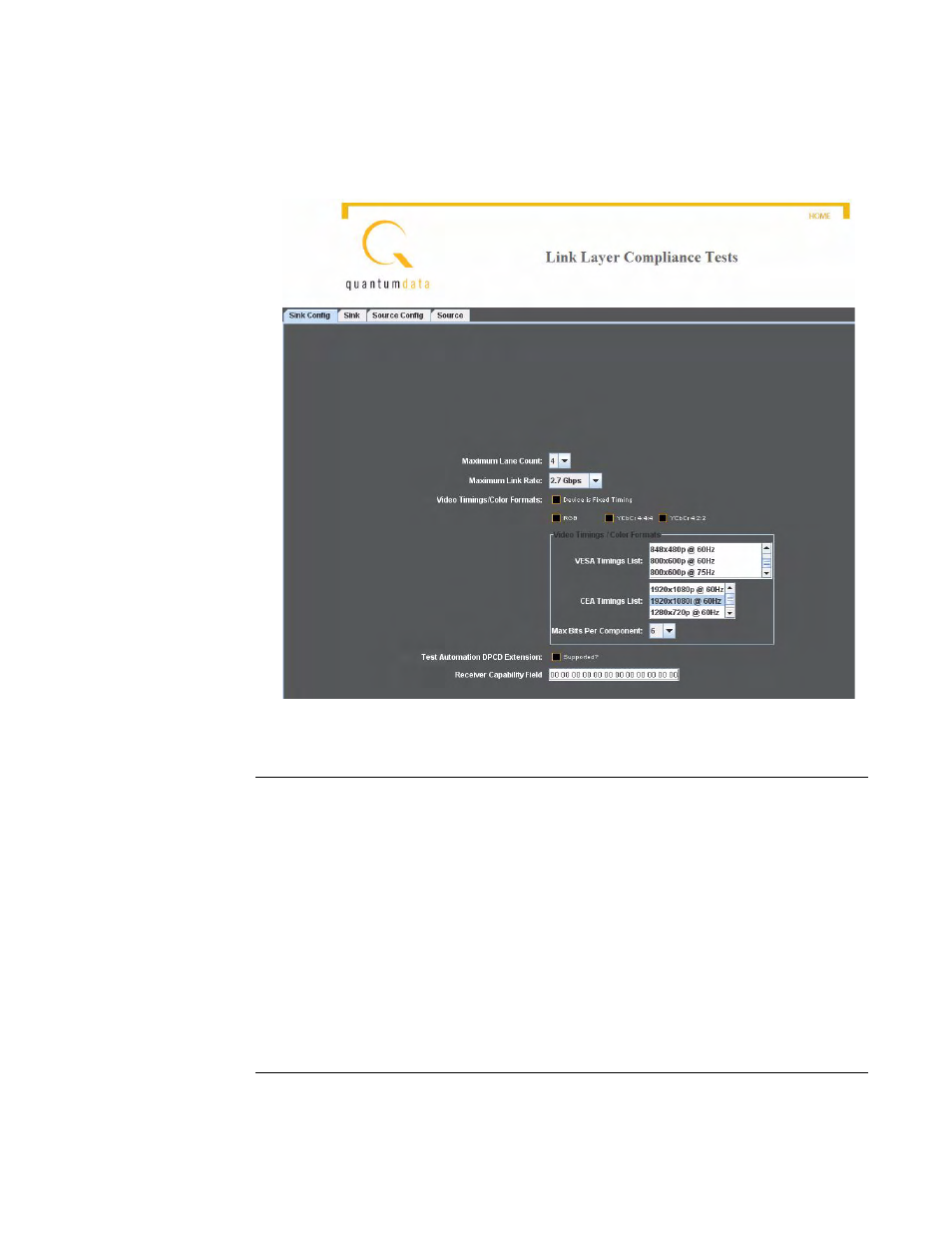

The Sink Config window is shown below. This is the window you use to configure the
parameters of the test.
6. Specify the test capability parameters for the test. These are shown in the table below:
Function/Field Function
Maximum Lane
Count pull down box Specifies the maximum lane count supported in the Sink Device
Capability list
Maximum Link
Rate specification
pull down box Specifies the maximum link rate supported in the Sink Device
Capability list.
Devices Fixed
Timing check box Specifies whether the test should be run only at the preferred
timing. If this check box is selected, you should not check or
specify anything for the following:
VESA Timings CEA Timings
RGB YCbCr 4:4:4 YCbCr 4:2:2
RGB check box Defines whether the sink device under test supports the RGB color
mode.
