881/882 Video Test Generator User Guide
(Rev A.22)
1053

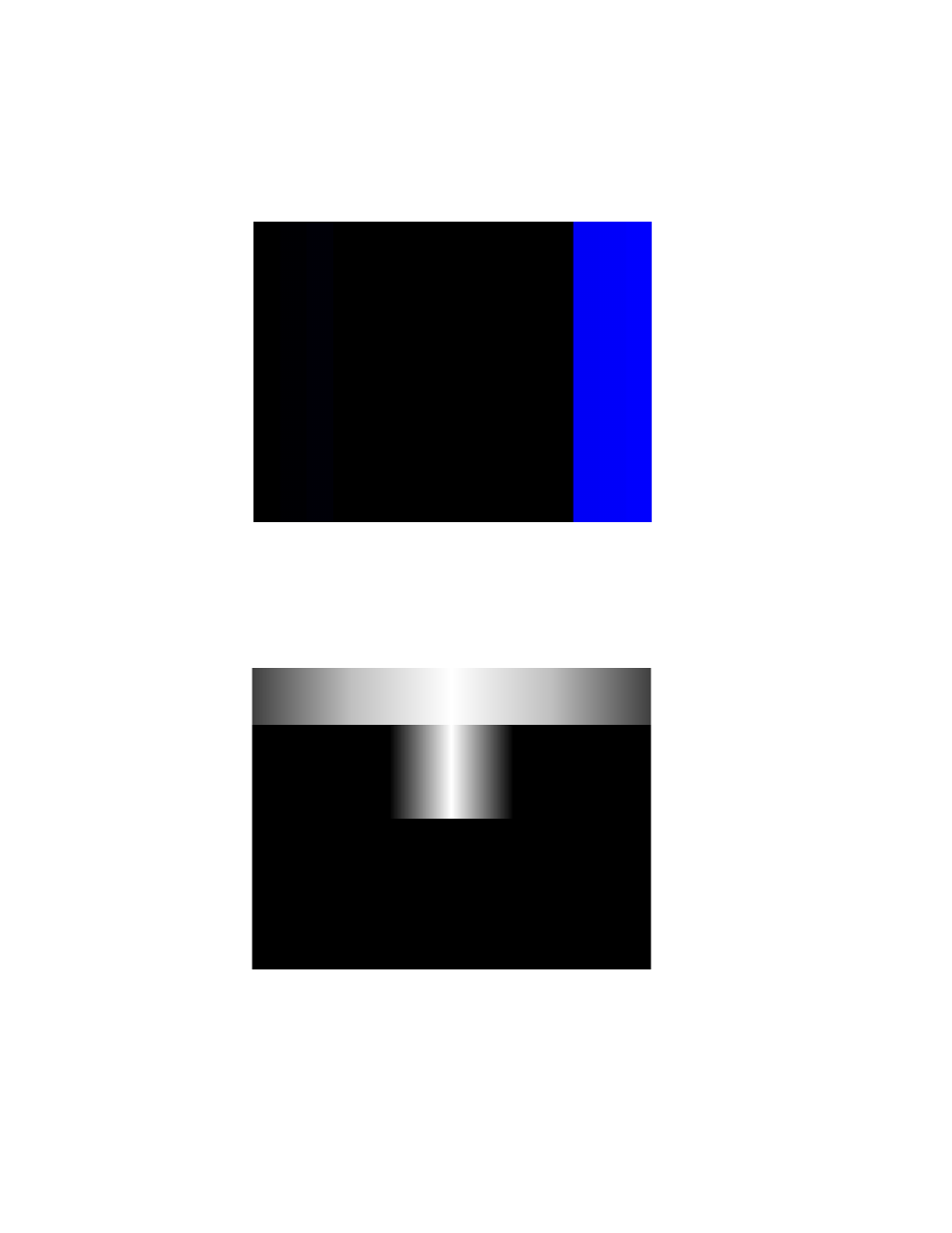

LGLCDTVB, LGLCDTVG, LGLCDTVR, LGLCDTVW
Description
Special test image developed per customer specifications. Each image has three
versions. The primary version of the LGLCDTVB image is shown below.
LGRamp
Description
Special test image developed per customer specifications. The image provides a
grayscale of two objects. The secondary version of the LGRamp image is shown below.
