506 Chapter 15 Auxiliary Channel Analyzer
ALLU // Applies the interface setting to the generator
To monitor the aux channel transactions on the DisplayPort:
1. Set up the generator/analyzer for DisplayPort in accordance with the instructions above
“ To set up the generator for DisplayPort: ” on page 505.
2. Set up the Auxiliary Channel Analyzer in accordance with the instructions in “ Setting
up the ACA ” on page 489.

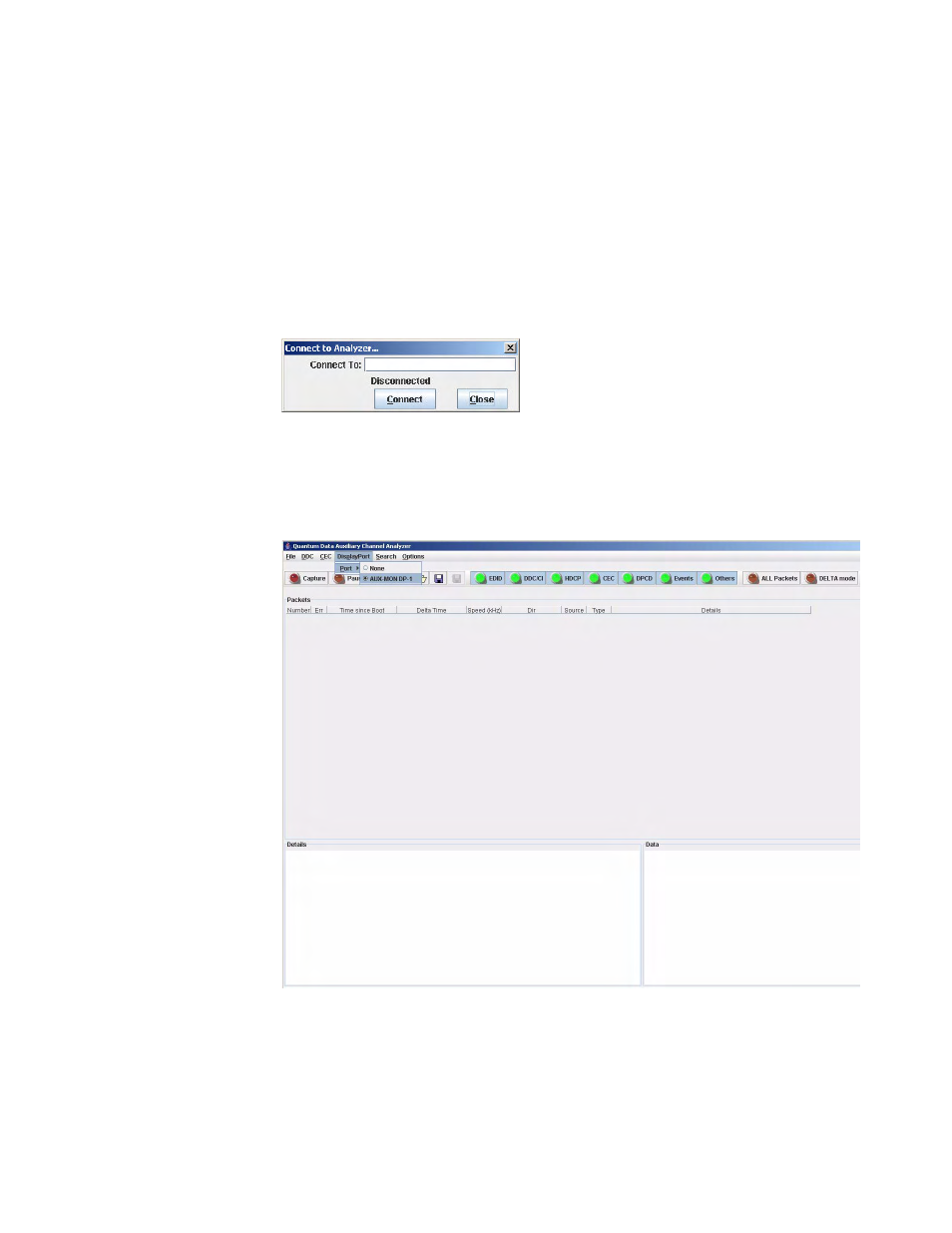

3. In the ACA, from the File menu, select Connect to Analyzer. The Connect to
Analyzer dialog box appears.
4. In the Connect To box, enter the IP address of the generator you want to connect to,
and then click Connect.
5. From DisplayPort menu, point to Port, and the select the AUX-MON DP you want to
monitor as shown below:
6. From the File pull down menu specify New Trace or click on the new trace icon.
7. Click the Capture activation button.
