881/882 Video Test Generator User Guide
(Rev A.22)
1071
P10
Description

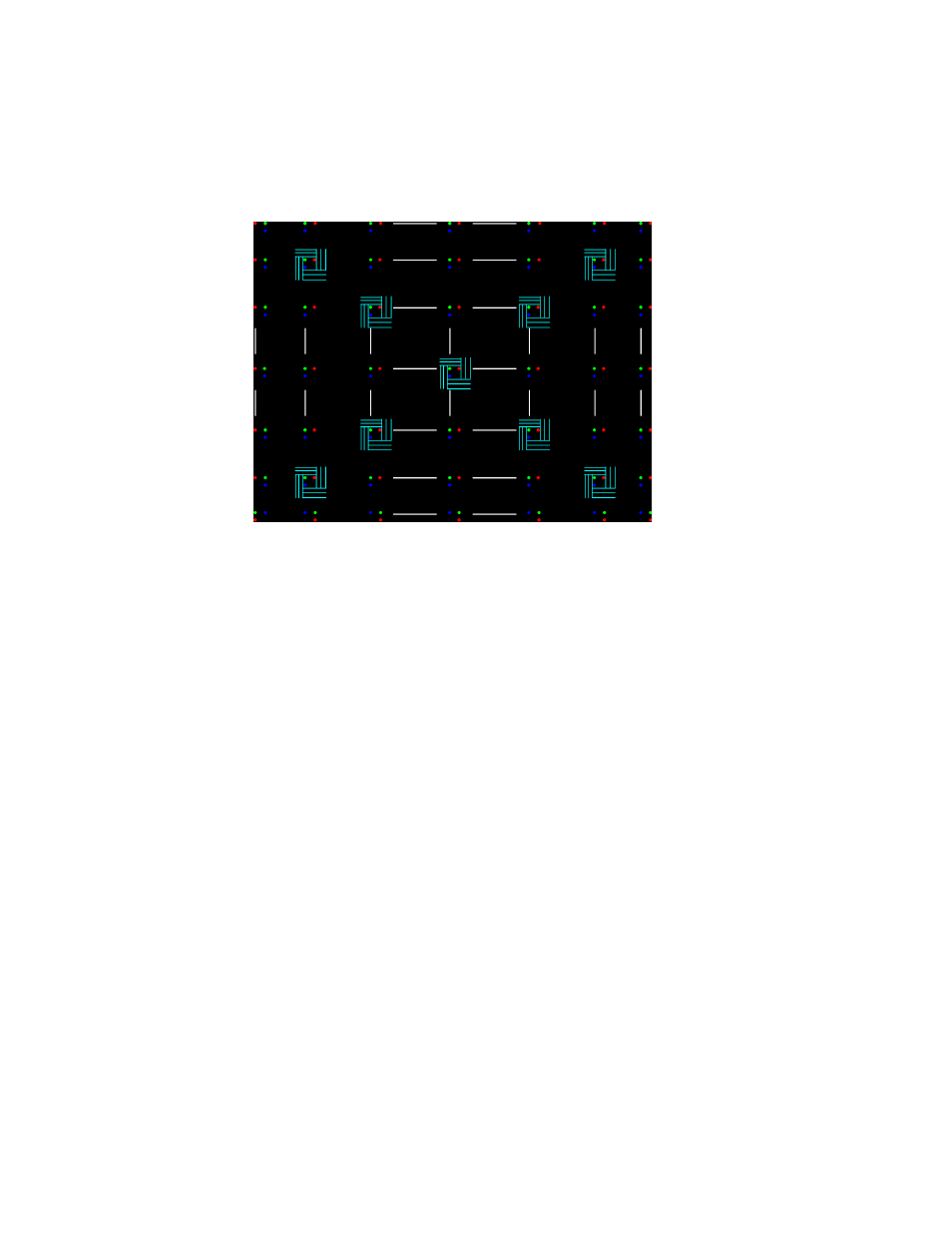

Special test image developed per customer specifications. There are four versions of this
image.
After pressing the Contents key and then the Options key you then enable More and use
the +/- increment keys to proceed through the subimages to select up to 4 different
versions of this image.
PacketRx
D
escription
Displays the InfoFrame data received by HDMI receiver. For more
information, see “
Testing HDMI transmit device InfoFrame capability
PacketTx
Description
Displays the InfoFrame data transmitted from the HDMI transmitter. For more information,
see “
