Quantum Data 881 - Manual (Page 337)

881/882 Video Test Generator User Guide (Rev A.22) 319
To access the Image Control Tool:
1. Set up the generator for HDMI output. See “ Setting up the generator for HDMI testing ”
on page 302.
2. Press the Source key and select the desired format.
Alternatively, you can load the format with the following command:
FMTL format_name
FMTU
3. Open a Web browser (such as Internet Explorer) and type the generator’s IP address
in the address entry field. For example, enter the following: http://206.135.215.189/.

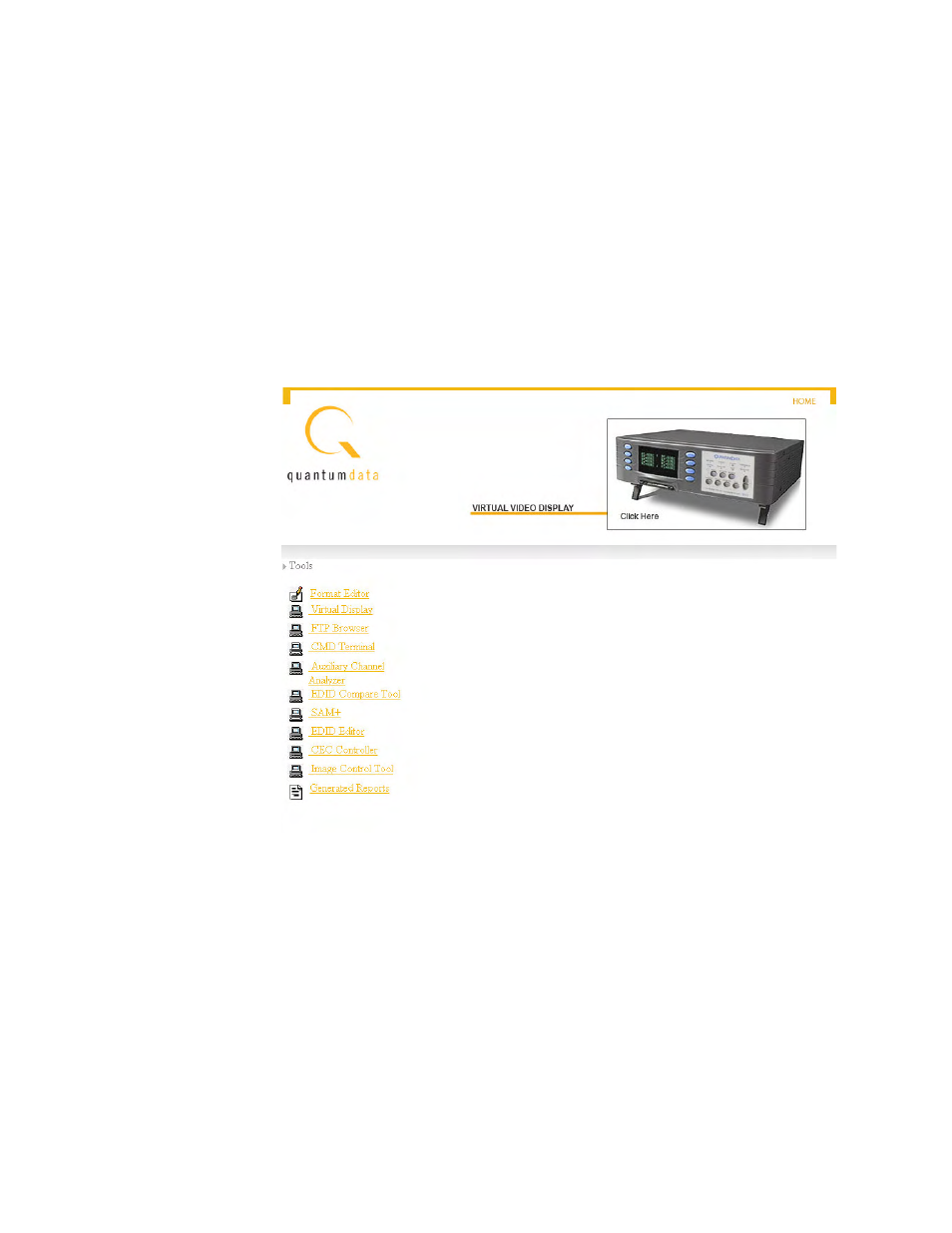

The generator home page appears in the browser.
