881/882 Video Test Generator User Guide (Rev A.22)
283

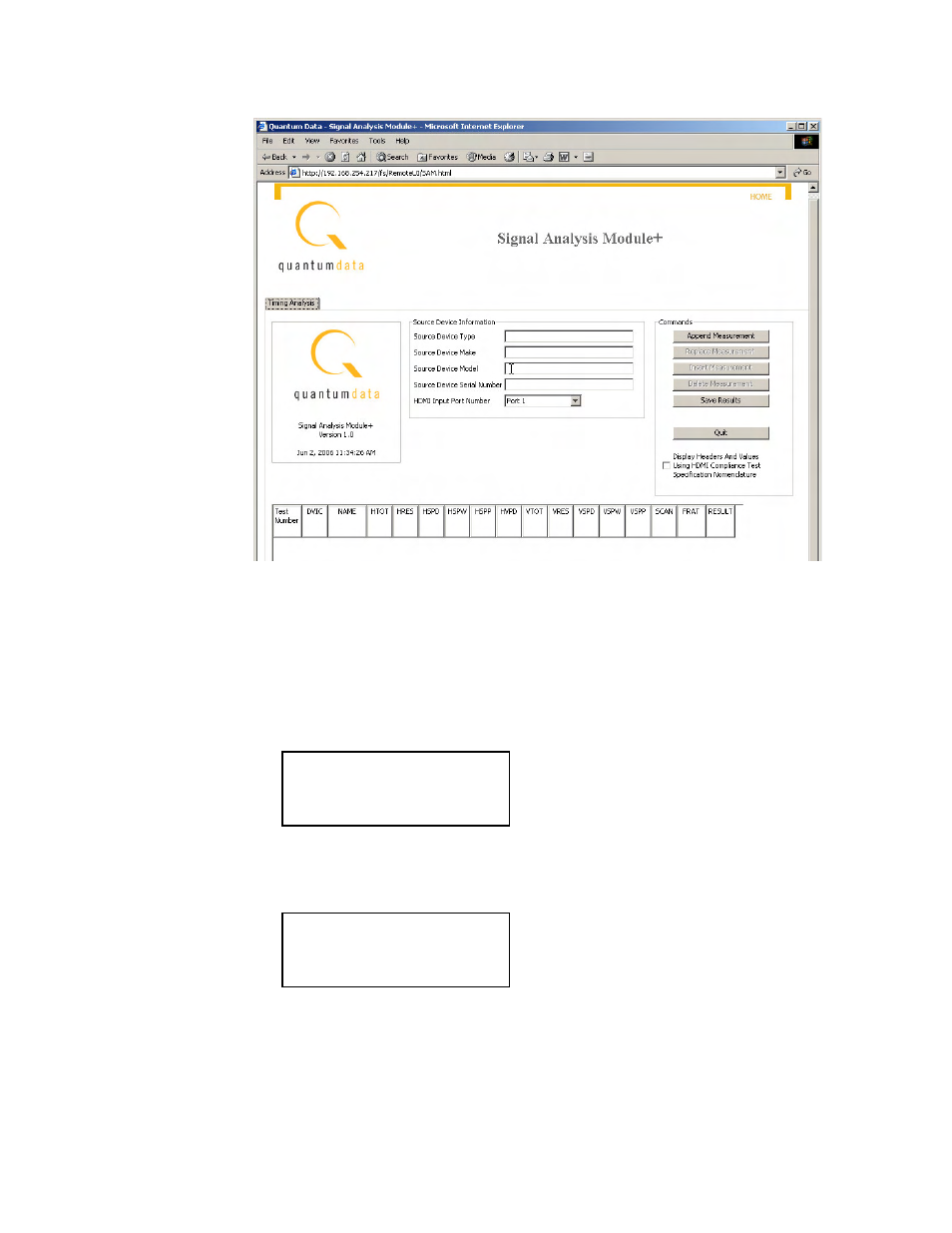

To set up the generator:
1. Connect an HDMI-to-HDMI cable between the HDMI source device under test and
either of the HDMI IN connectors on the generator.
2. Activate the HDMI-H interface on the output port:
a. Press the
Interface key to access the list of interfaces. A listing of signal interfaces
appears on the generator’s display as shown below.
b. Choose either the
HDMI-H item by pressing the adjacent soft key.
The interface is activated and the port outputs the currently selected image and format.
Alternatively, to select the interface through the command line, enter the following
commands:
4
// Selects the HDMI-H interface
// Applies the interface setting to the generator
VGA
HDMI-D
CVBS
S-VIDEO
SDI
*
HDMI-H
VGA
HDMI-D
CVBS
S-VIDEO
SDI
*HDMI-H
