248 Chapter 9 Analyzing Digital Sources and Cables

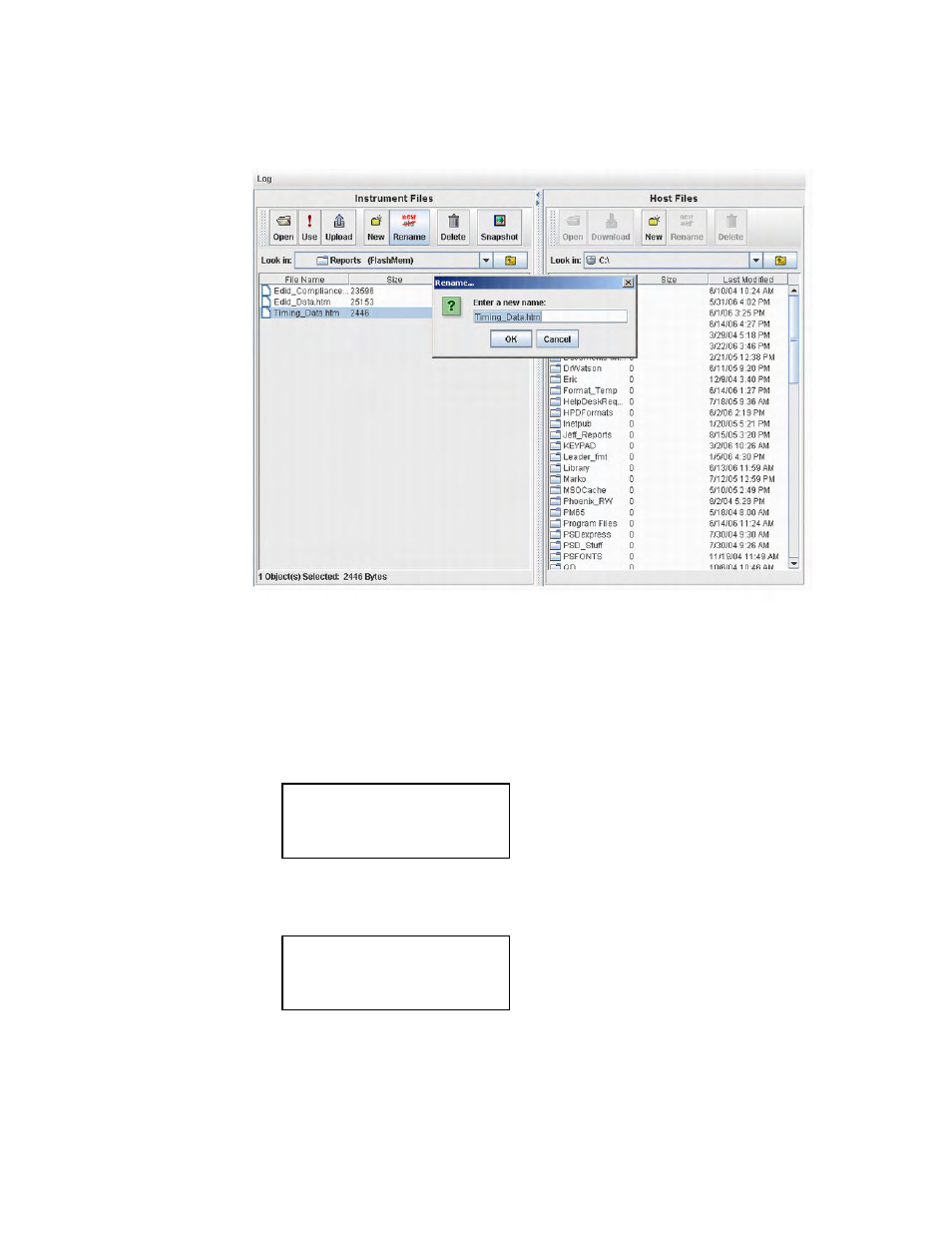

Note: Make sure to change the names of any existing reports in the directory on your
PC to avoid overwriting existing reports.
To view timing information of an external HDMI/DVI source signal on a display:
1. Connect the HDMI/DVI transmit device to an HDMI IN connector on the generator.
2. Activate the HDMI-H or HDMI-D interface on the output port:
a. Press the Interface key to access the list of interfaces. A listing of signal interfaces
appears on the generator’s display as shown below.
b. Choose the HDMI-H or HDMI-D item by pressing the adjacent soft key. The
interface is activated and the port outputs the currently selected image and format.
c. Alternatively, to activate the interface through the command line interface, enter the
following commands:
XVSI 3 (or 4) // Selects the HDMI-D (or HDMI-H) interface
VGA
HDMI-D CVBS
S-VIDEO
SDI
*
HDMI-H
VGA
HDMI-D CVBS
S-VIDEO
SDI *HDMI-H
