498 Chapter 15 Auxiliary Channel Analyzer
9.
T

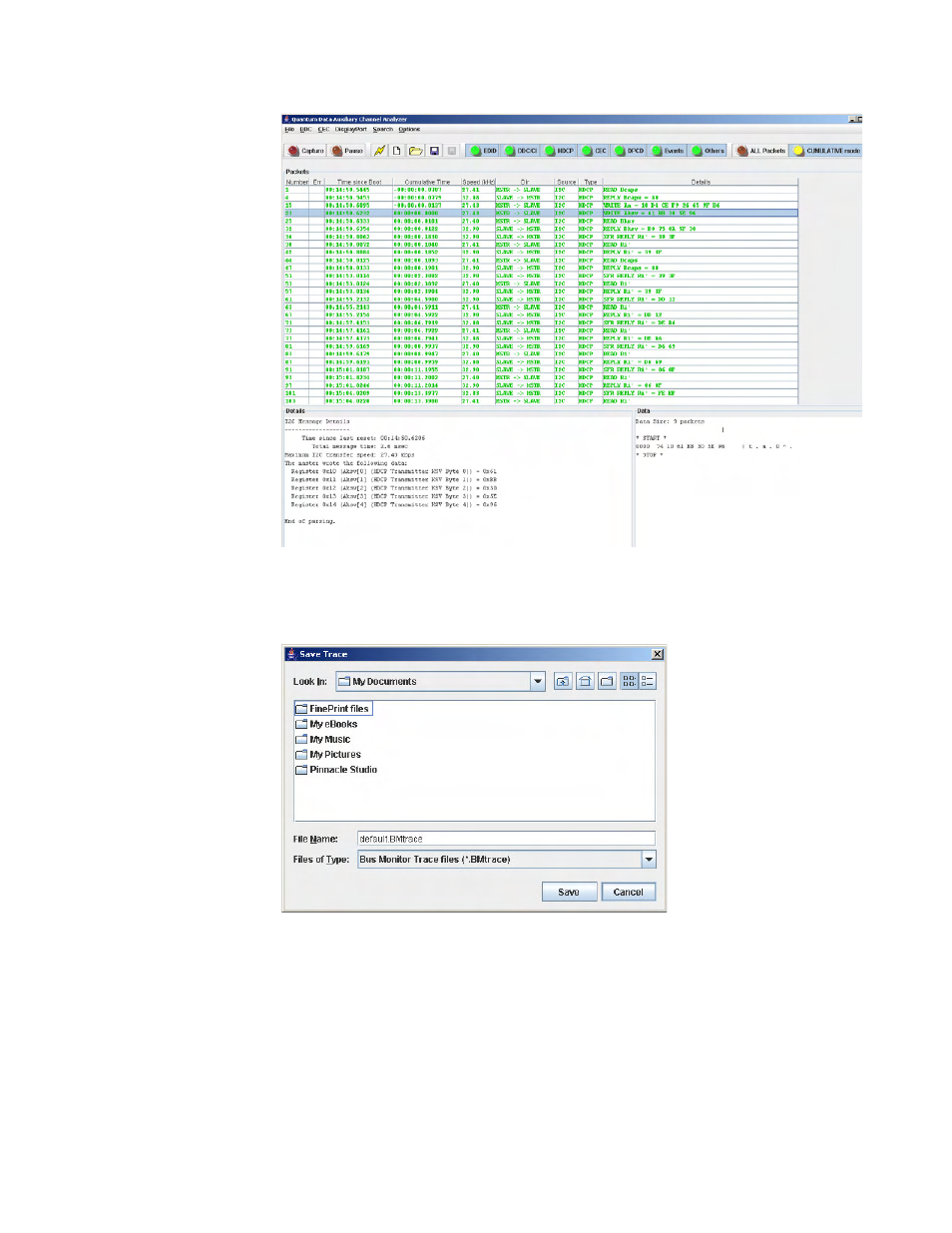

(Optional) Click the Save button on the toolbar to save the trace to a file. The Save
Trace dialog box appears. Navigate to the folder where you want to save the file. In the
File Name box, type a name for the file, and then click Save.
To monitor the EDID transactions on the DDC (I2C) bus (channel):
1. Set up the generator/analyzer for HDMI in accordance with the instructions above “ To
set up the generator for monitoring the DDC on HDMI: ” on page 492.
