Chapter 1 Getting Started
Video interfaces

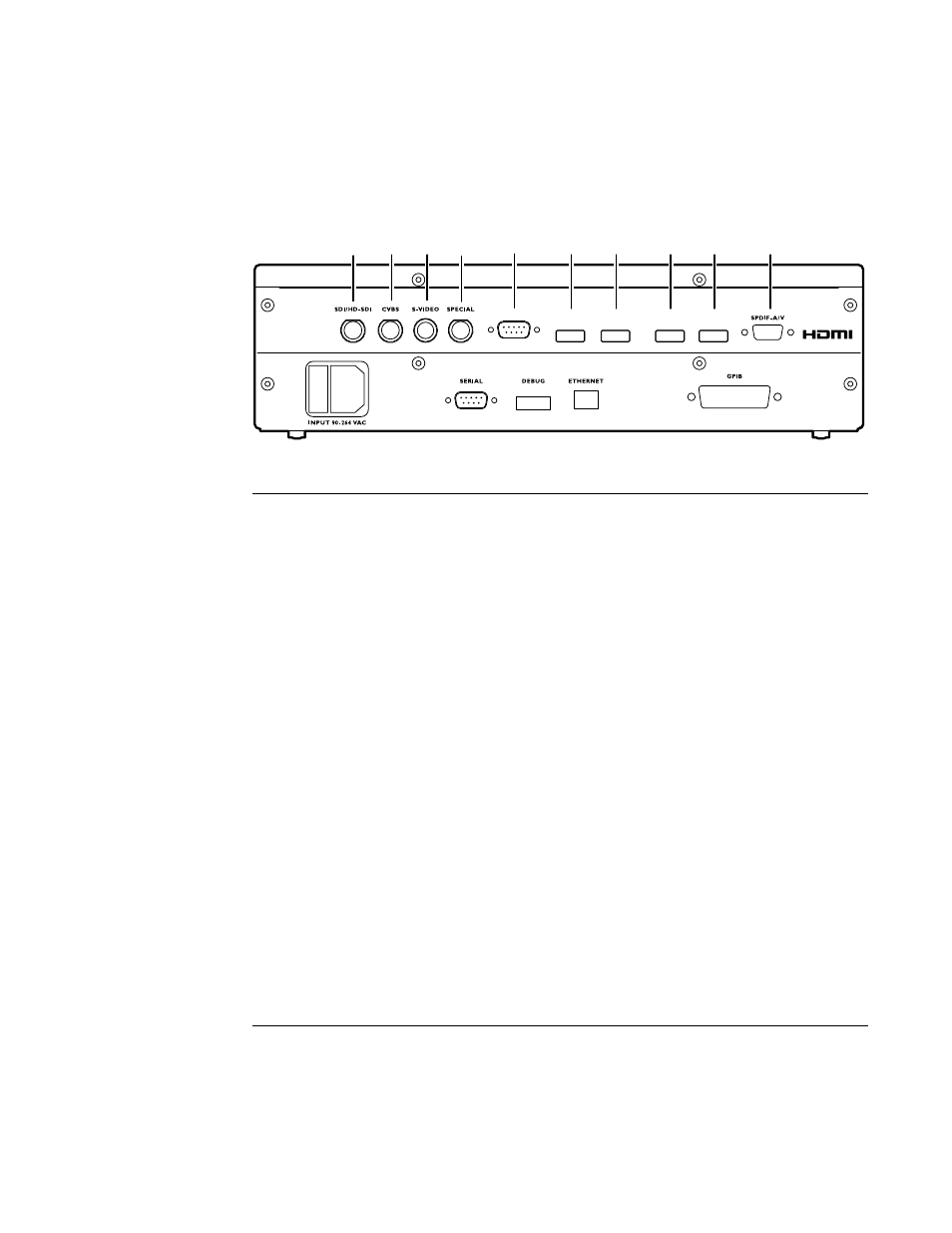

This section describes the generator’s video interfaces. The video interfaces on the 882C
are shown below.
Interface
Description
1
SDI/HD-SDI connector outputs a serial digital signal per SMPTE 259M and SMPTE
292M standards.
2
CVBS connector outputs an analog composite video baseband signal in accordance
with SMPTE 170M standard.
3
S-VIDEO connector outputs an S-Video split luminance (Y) and chrominance (C)
analog video signal.
4
SPECIAL connector provides multiple outputs, including:
• digital composite sync
• line sync
• frame sync
• movable scope trigger (probe) pulse
• pixel clock signal
5
VGA OUT connector outputs a analog component video or analog RGB signal.
6
HDMI OUT 1 connector outputs full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
7
HDMI OUT 2 connector outputs full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
8
HDMI IN 1 connector for input of full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
9
HDMI IN 2 connector for input of full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
10
SPDIF-AV connector inputs audio from an external source.
HDMI OUT 1
HDMI OUT 2
HDMI IN 1
HDMI IN 2
VGA
1
2
3
5
4
6
7
8
9
10
