618 Chapter 18 Testing HDCP
To run the 2C-01 HDCP compliance test on an HDMI sink (receiver):
For the 882E releases prior to 2.17.x and for the 882CA, the 2C-01 tests are required
to be run with 2 different set ups through the command line for both read configurations:
1) short read and 2) long read.
1. For the 882E analyzer connect the cables as follows:
a. Apply power to the Encryption Status Tester (EST) using the power adapter
supplied with the EST.
b. Connect an HDMI cable from the sink device under test input to the EST HDMI port
labeled, “HDMI OUT.”
c. Connect an HDMI cable from the 882 HDMI Tx 2 port to the EST HDMI port labeled
“HDMI.”
d. Connect an HDMI cable from the 882 HDMI Tx 1 port to the EST HDMI port
labeled, “HDMI IN.”

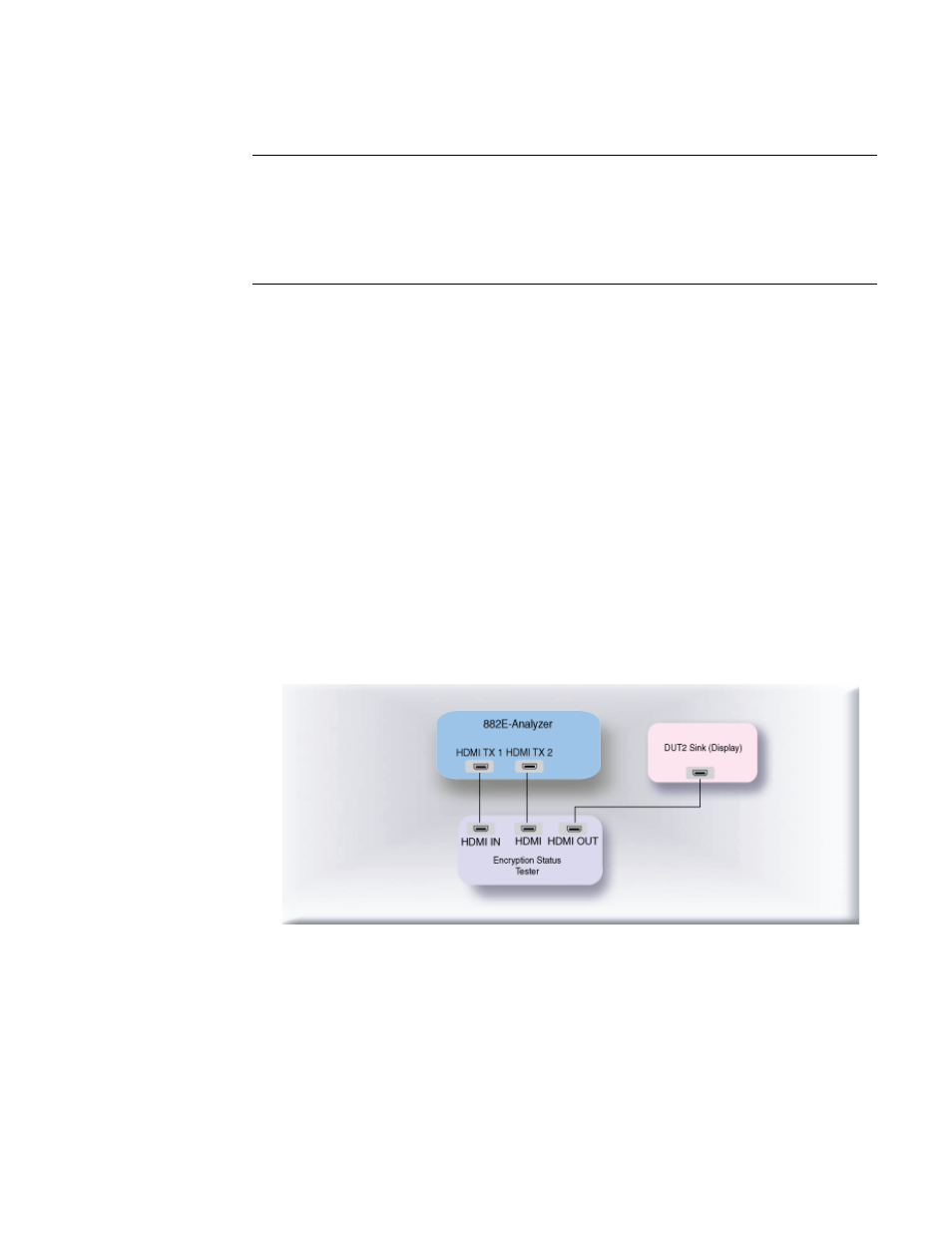

The following diagram depicts the test setup for the 882EA:
18 2C_03 (Receiver Upstream
w/Transmitter) (w/HDMI Capable
Transmitter) Irregular Procedure: (Third Part of
Authentication) New Authentication
19 2C_04 (Receiver Upstream
w/Transmitter) (w/DVI
Transmitter) Regular Procedure: With DVI Transmitter
CPTX:CPTR
I ndex Test Description
