Emulating an EDID
The procedures below provide instructions on configuring one of the analyzer ports to
emulate an EDID that you have loaded in the Editor tool. You can configure either or both
HDMI Rx ports with any viable EDID .xml file that you have stored.
To emulate an EDID:
1. Load an existing EDID using the procedures described in “
2. Select
Use EDID on... from the File pull down menu.

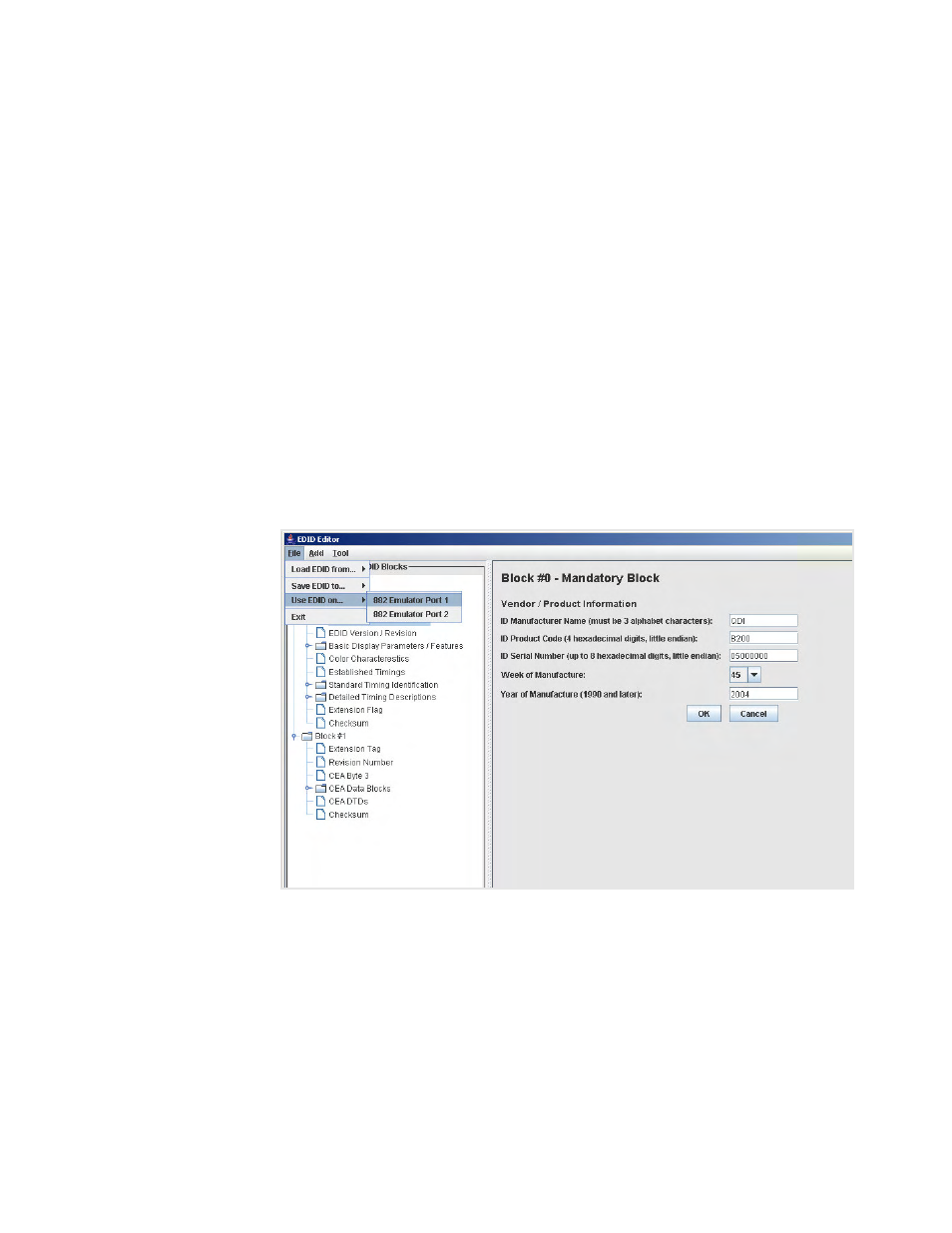

The example below shows how you would configure the EDID loaded into the editor on
HDMI Rx port 1.
The EDID that was loaded into the EDID Editor tool is now configured on the HDMI Rx
port you selected (882 HDMI Rx 1 port in the example above).
