Chapter 9 Analyzing Digital Sources and Cables
6. If desired, monitor the video signal received on the HDMI Rx connector (see
Monitoring HDMI 1.3 analyzer signal input
7. Press the
Source key and select an appropriate format for the connected HDMI display.
8. Press the
Content key and select the PacketRx image.

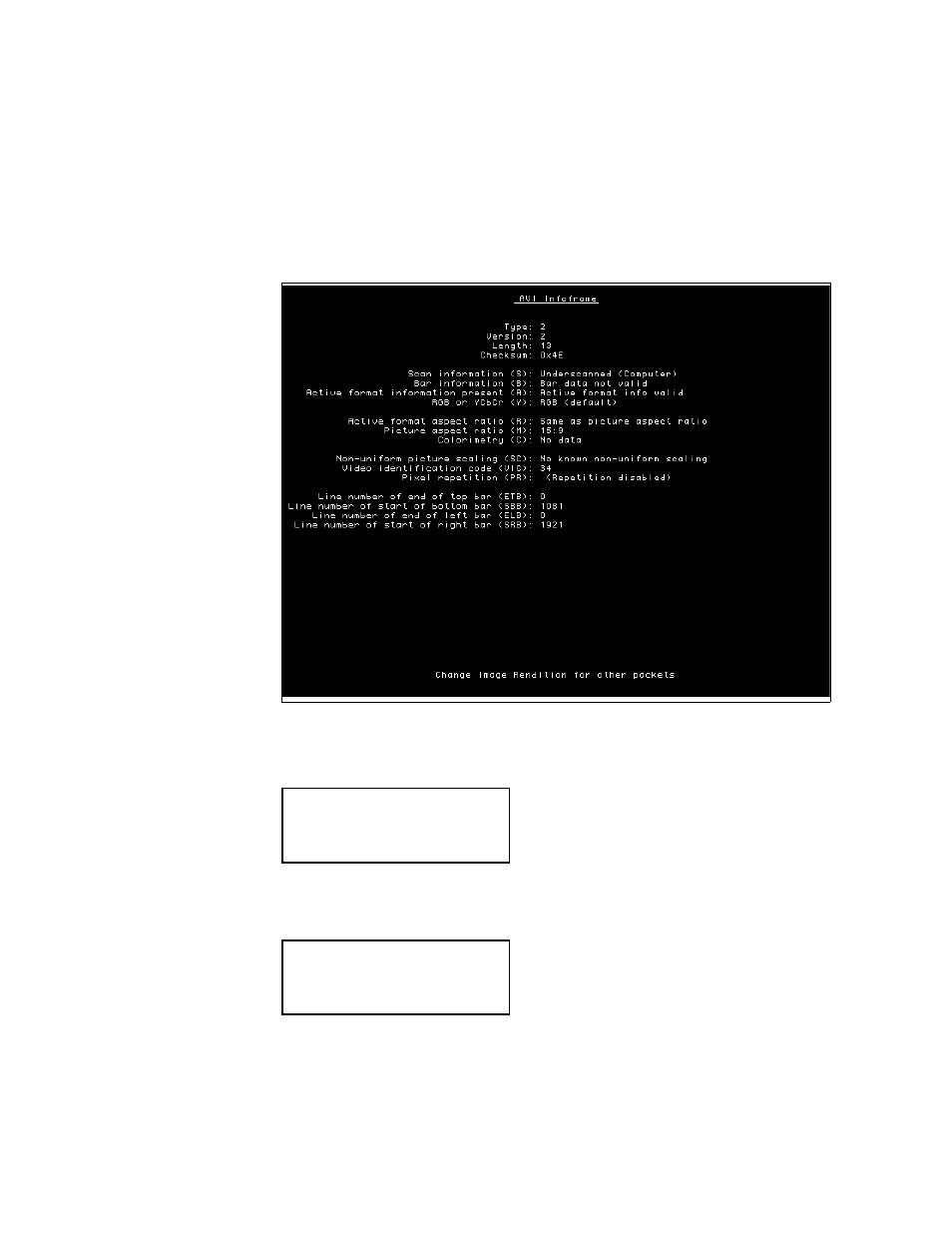

The PacketRx image appears on the connected HDMI display. Shown in the image are
the current settings for the AVI InfoFrame input.
9. Enable and view image versions for the PacketRx image as follows:
a. Press the
Options key. The following menu appears on the generator’s display:
b. Choose the
More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
c. Press the + key to advance through the image versions.
-More
Red+
-NoGamma
Green+
-Noise Blue+
+More Rendition: 000
Red+
-NoGamma
Green+
-Noise Blue+
