336 Chapter 10 Testing HDMI Sink Devices
3. Press the Content key and choose one of the audio images used for amplitude
adjustment (for example, Audio_1).

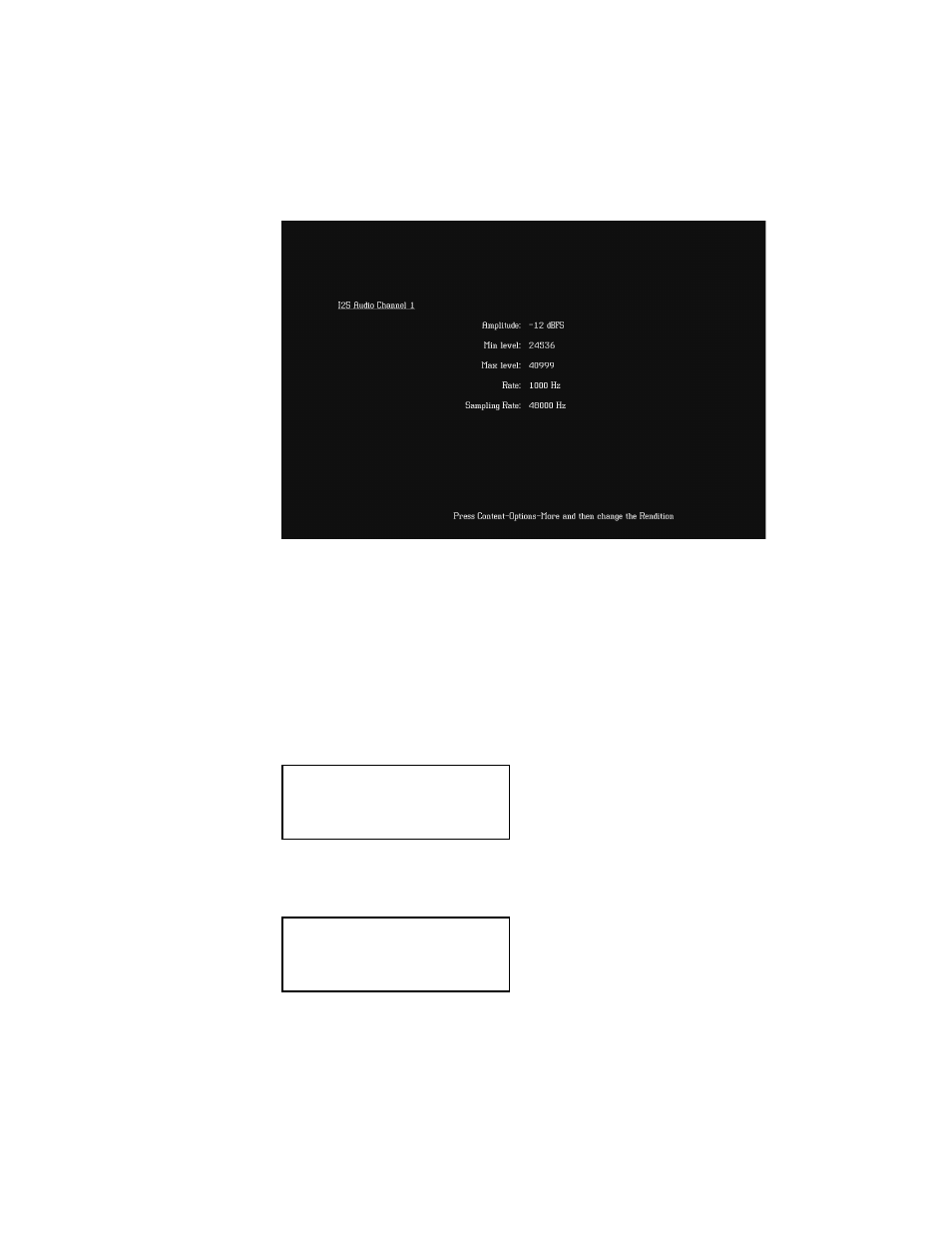

The image appears on the connected HDMI display. The image shows the current
settings for the HDMI audio output. For example, the Audio_1 image is shown below.
Alternatively, to select the audio image using the command line interface, enter the
following commands:
IMGP /tffs0/Library/Images // Set image path to generator memory
IMGL AUDIO_1 // Loads the Audio_1 image
IMGU // Activates the Audio_1 image
4. Enable and view image versions to modify the audio amplitude for the Audio_1 image
as follows:
a. Press the Options key. The following menu appears on the generator’s display:
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
c. Press the + and - keys to advance through the image versions to change the audio
intensity.
-More
Red+
-NoGamma Green+
-Noise Blue+
+More Rendition: 000
Red+
-NoGamma Green+
-Noise Blue+
