550 Chapter 16 Testing EDID
6. Choose the EDID you want to load into the Editor. You can load EDIDs from a
connected device, the generator file system, or from your PC. The following table
describes what selection ports map to which physical interface:

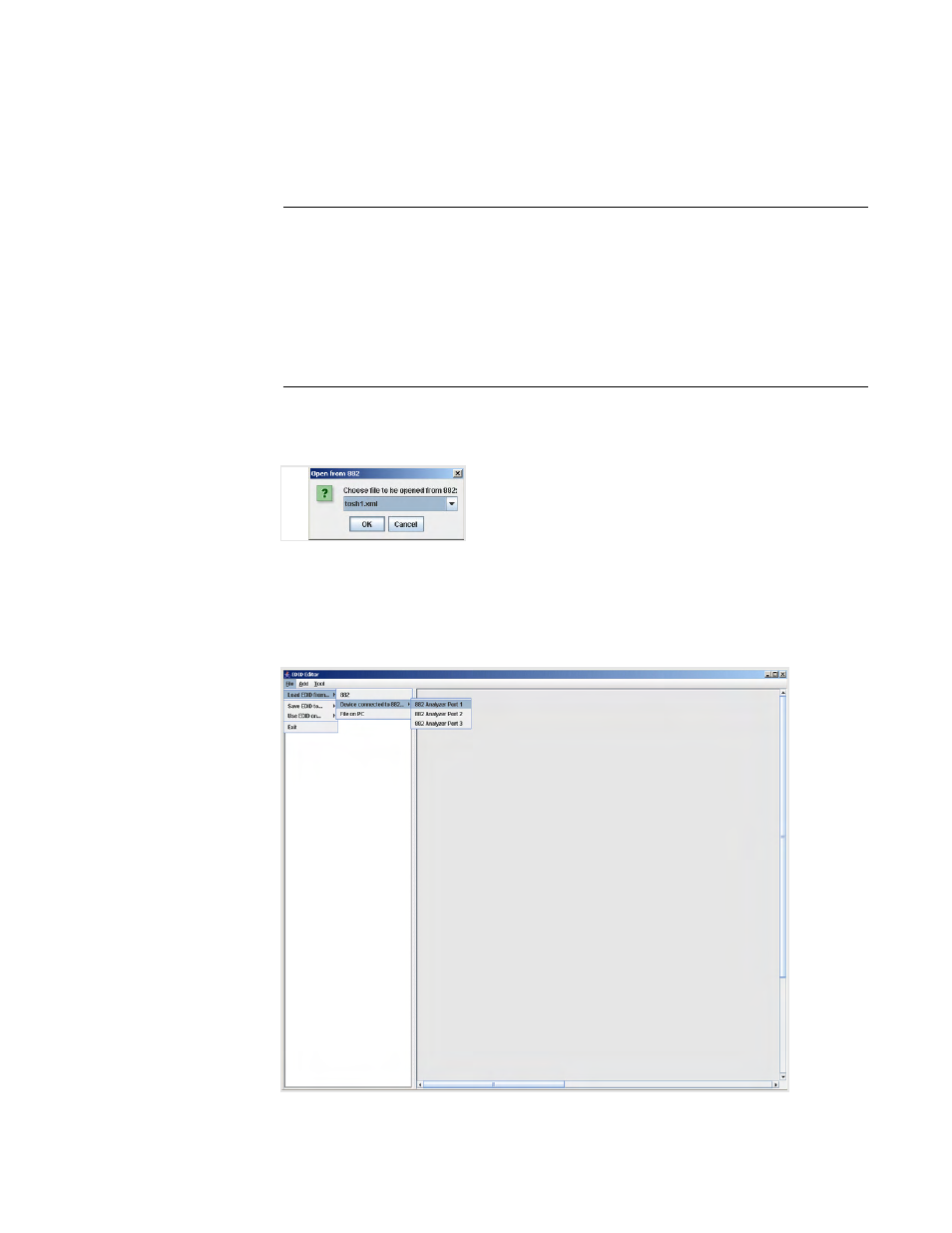

a. If you are loading an EDID XML file stored on the 882 generator, select Load EDID
From > 882 from the File menu. Select a valid file.
The EDID is loaded into the Editor.
b. If you are capturing and loading an EDID from a connected display device, select
Load EDID From > Device Connected to > 882 Analyzer Port from the File
menu. (Port 1 is HDMI Tx 1, Port 2 is HDMI TX 2, and Port 3 is VGA.)
Load EDID From... Location
882 A valid EDID XML file stored on the generator file
system (in flash memory or on the PC card).
Device connected to 882 A device that is connected either to the genera-
tor’s HDMI Tx ports or the VGA port:
- 882 Analyzer Port 1 - HDMI Tx 1
- 882 Analyzer Port 2 - HDMI Tx 2
- 882 Analyzer Port 3 - VGA
File on PC A valid EDID XML file stored in the host PC.
