881/882 Video Test Generator User Guide
(Rev A.22)
605
1. For the 882E analyzer, connect the cables as follows:
a. Apply power to the Encryption Status Tester (EST) using the power adapter
supplied with the EST.
b. Connect an HDMI cable from the source device under test output to the EST HDMI
port labeled, “HDMI IN.”
c. Connect an HDMI cable from the 882 HDMI Rx 1 port to the EST HDMI port labeled
“HDMI OUT.”
d. Connect an HDMI cable from the 882 HDMI Tx 2 port to the EST HDMI port labeled
“HDMI.”
e. Connect an HDMI cable from the 882 HDMI Tx 1 port to the HDMI input of the
display device (used to monitor the video).

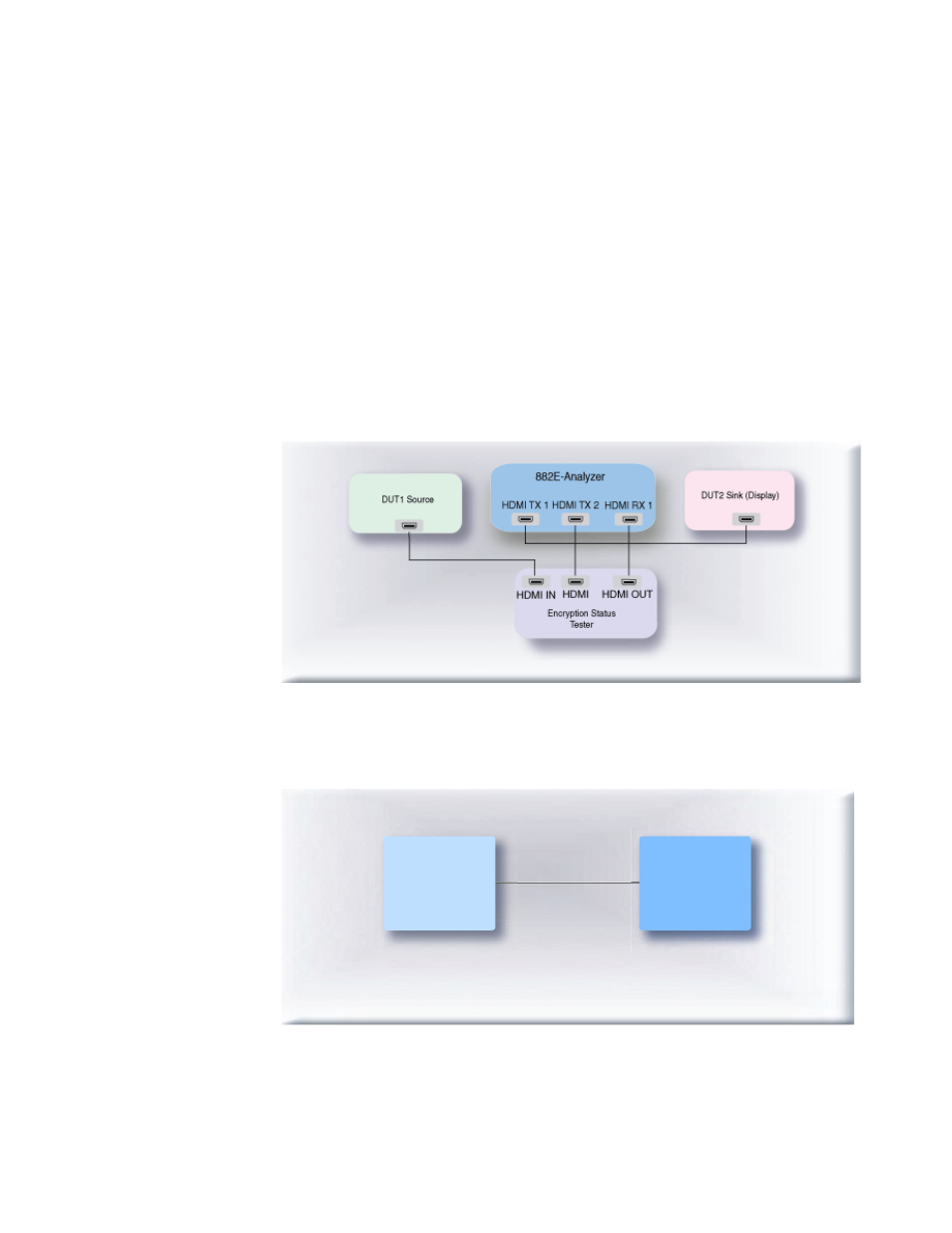

The following diagram depicts the test setup for the 882EA:
2. For the 882CA, connect an HDMI cable from the source device under test output to the
882 HDMI Rx 1 port.
The following diagram depicts the test setup for the 882CA:
HDMI/HDCP
Source
DUT
Repeater
882CA
HDMI In
