881/882 Video Test Generator User Guide (Rev A.22) 1027
EMITest1, EMITest2, EMITest3, EMITest4, EMITest5
Description Special test images used for electro-magnetic interference (EMI) testing of displays. The
entire active video area is filled with an “H” character. The primary versions of these
images draw white characters on a black background. The secondary versions draw black

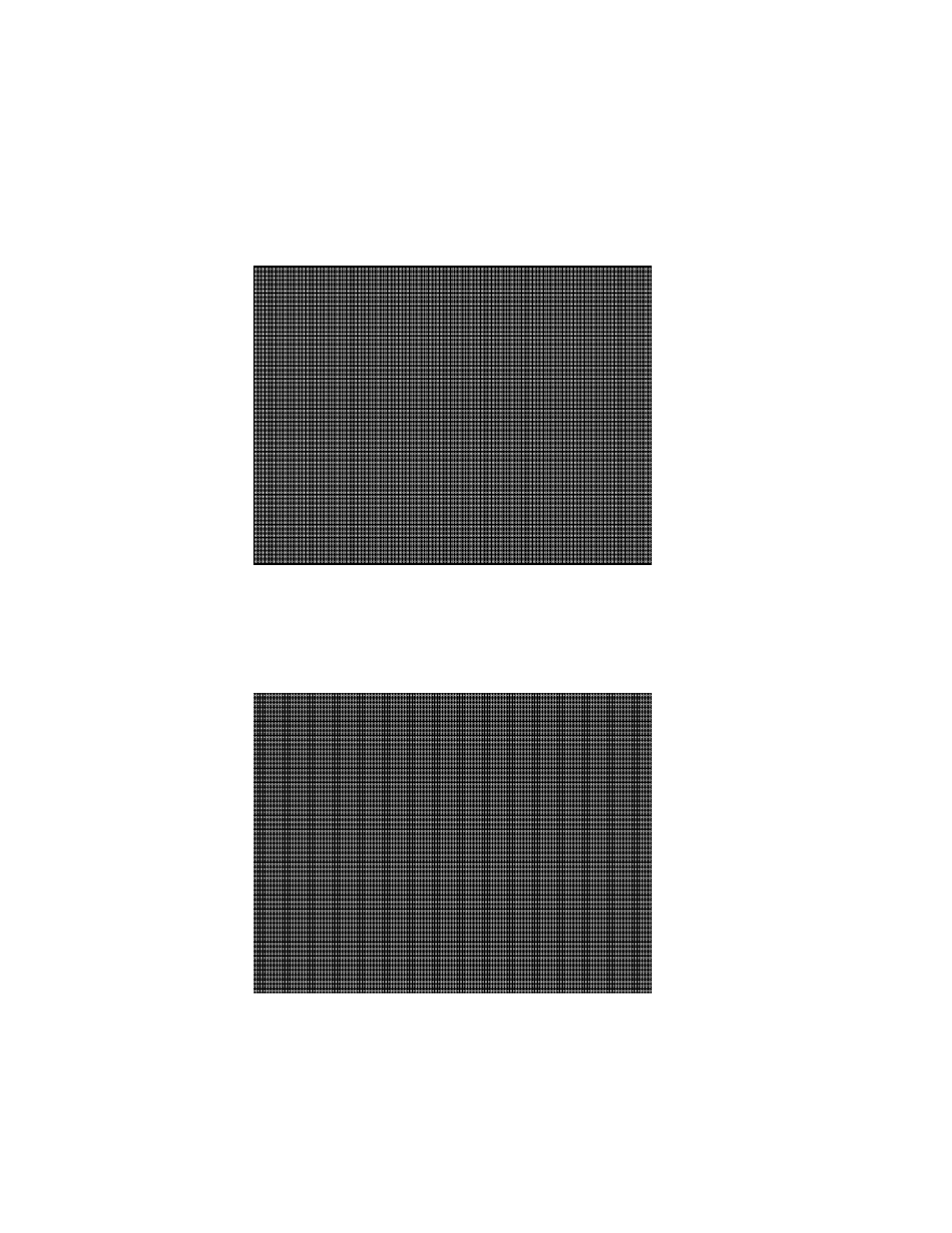

characters on a white background. The EMITest1 image is shown below.
The EMITest2 image is the same as EMITest1, but with the bottom row of characters
constantly drawn left-to-right and then cleared.
The EMITest3 image is the same as EMITest1, but with a larger version of the “H”
character.
The EMITest4 image is the same as EMITest3, but with the bottom row of characters
constantly drawn left-to-right and then cleared.
