FMTP /tffs0/Library/Formats // Set format path to generator memory
FMTL DMT0660 // Loads the DMT0660 format
FMTU // Activates the DMT0660 format
3. Press the Content key and choose the PacketTx image.
Alternatively, to select the image using the command line interface, enter the following
commands:
IMGP /tffs0/Library/Images // Set image path to generator memory
IMGL PacketTx // Loads the PacketTx image
IMGU // Activates the PacketTX image

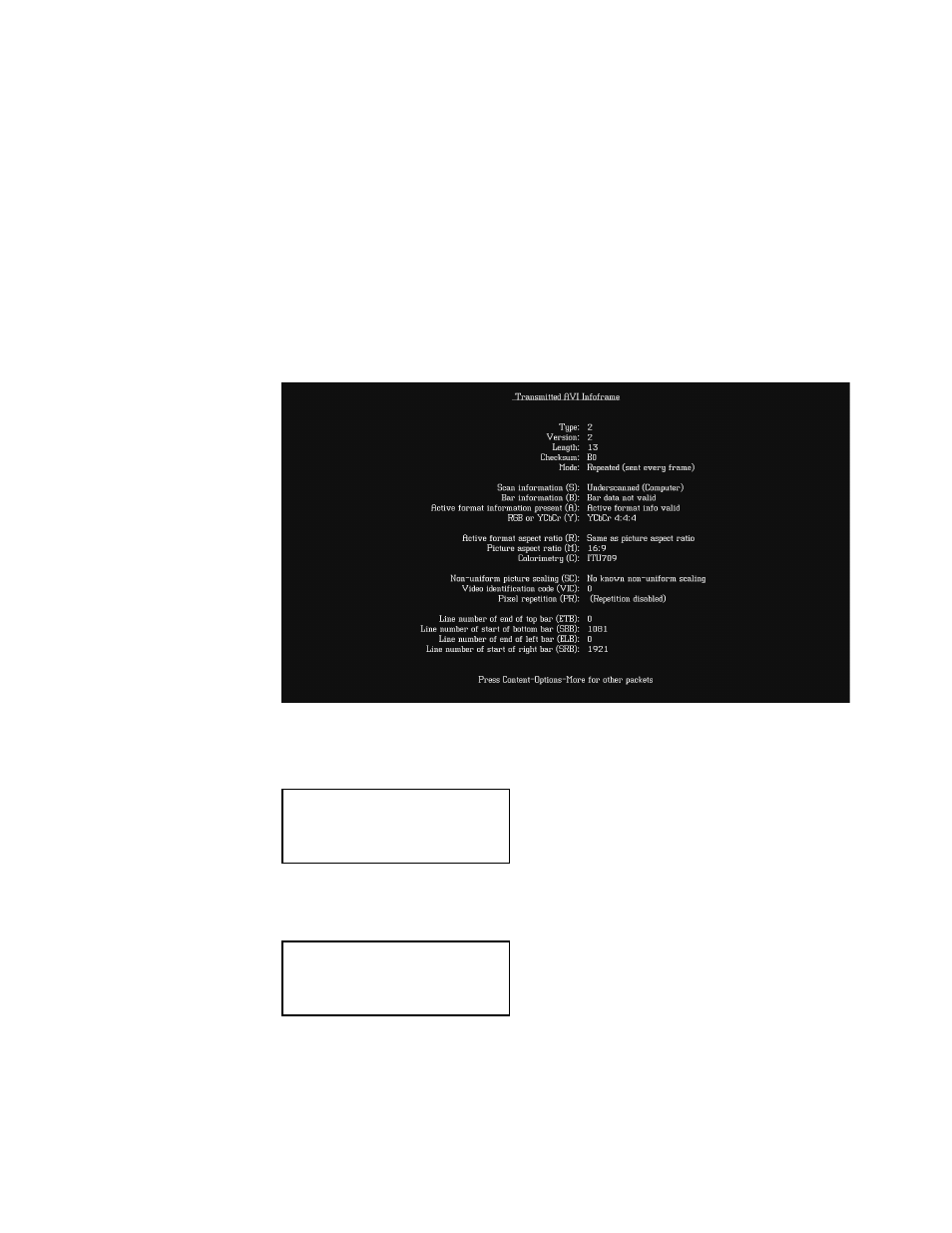

The PacketTx image appears on the connected HDMI display. The image shows the
current settings for the AVI InfoFrame output.
4. Enable and view image versions for the PacketTx image as follows:
a. Press the Options key. The following menu appears on the generator’s display:
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
c. Press the + key to advance through the image versions.
-More
Red+
-NoGamma Green+
-Noise Blue+
+More Rendition: 000
Red+
-NoGamma Green+
-Noise Blue+
