Acer9, Afdtest – Quantum Data 881 User Manual
Page 1120
1004
Appendix B Image Reference
Acer9
Description

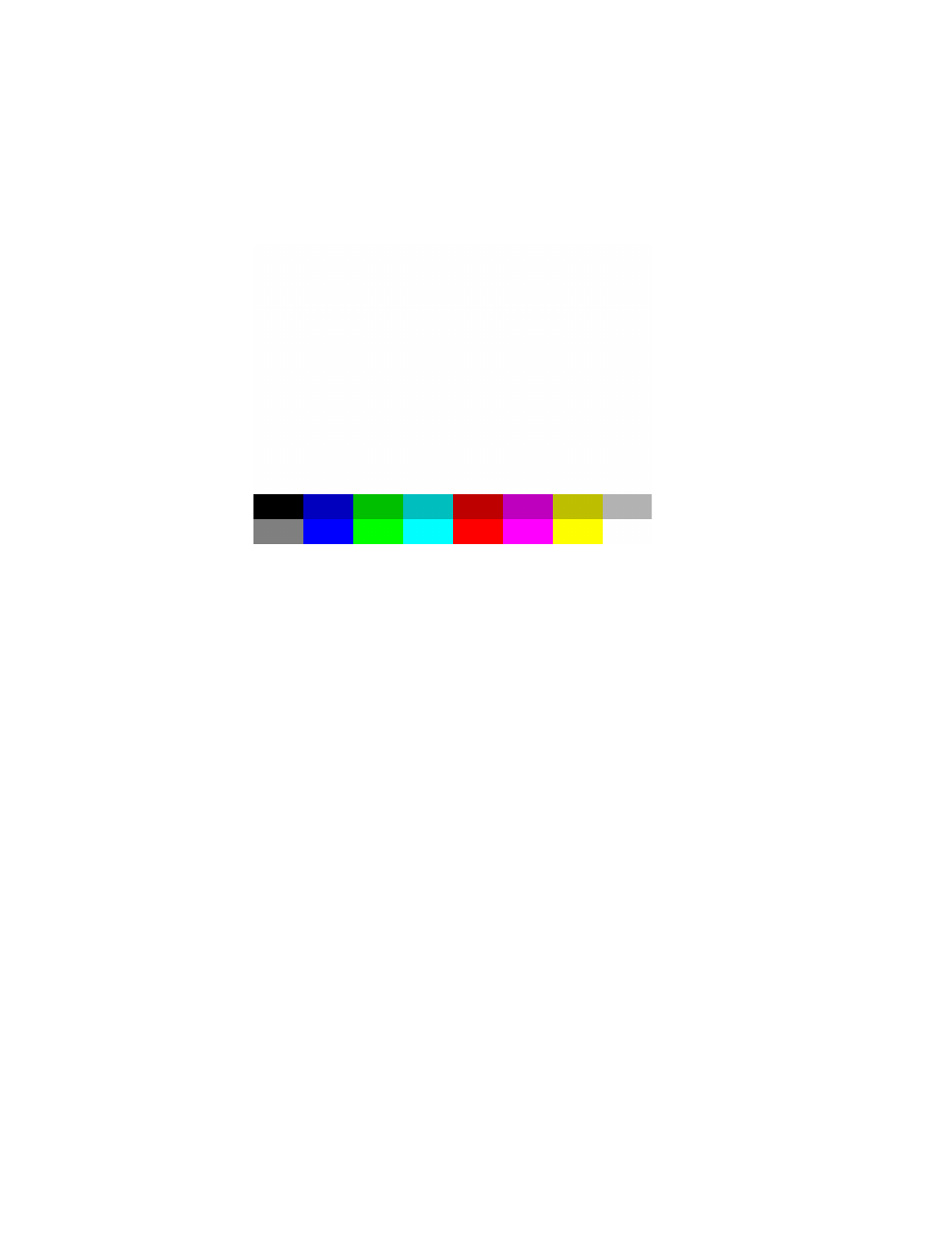

Special test image developed per customer specifications. In the primary version, a mostly
white field is displayed with two rows of color bars at the bottom. A secondary version
displays a black field with the two rows of color bars at the bottom.
AFDtest
Description
Used to test HDMI content mapping using different EIA/CEA-861-B formats. There are 10
different versions of this image. For more information, see “
