881/882 Video Test Generator User Guide
(Rev A.22)
1057
Master
Description
MEMEPlus, MEPlus_B, MEPlus_G, and MEPlus_R
Description
In the primary version, the screen is filled with blue (BLU and B), green (GRN and G), red
(R), or white (WHT and Sony) EM character blocks on a black background. Only the white
character has a secondary version. It is drawn with black characters on a white
background.

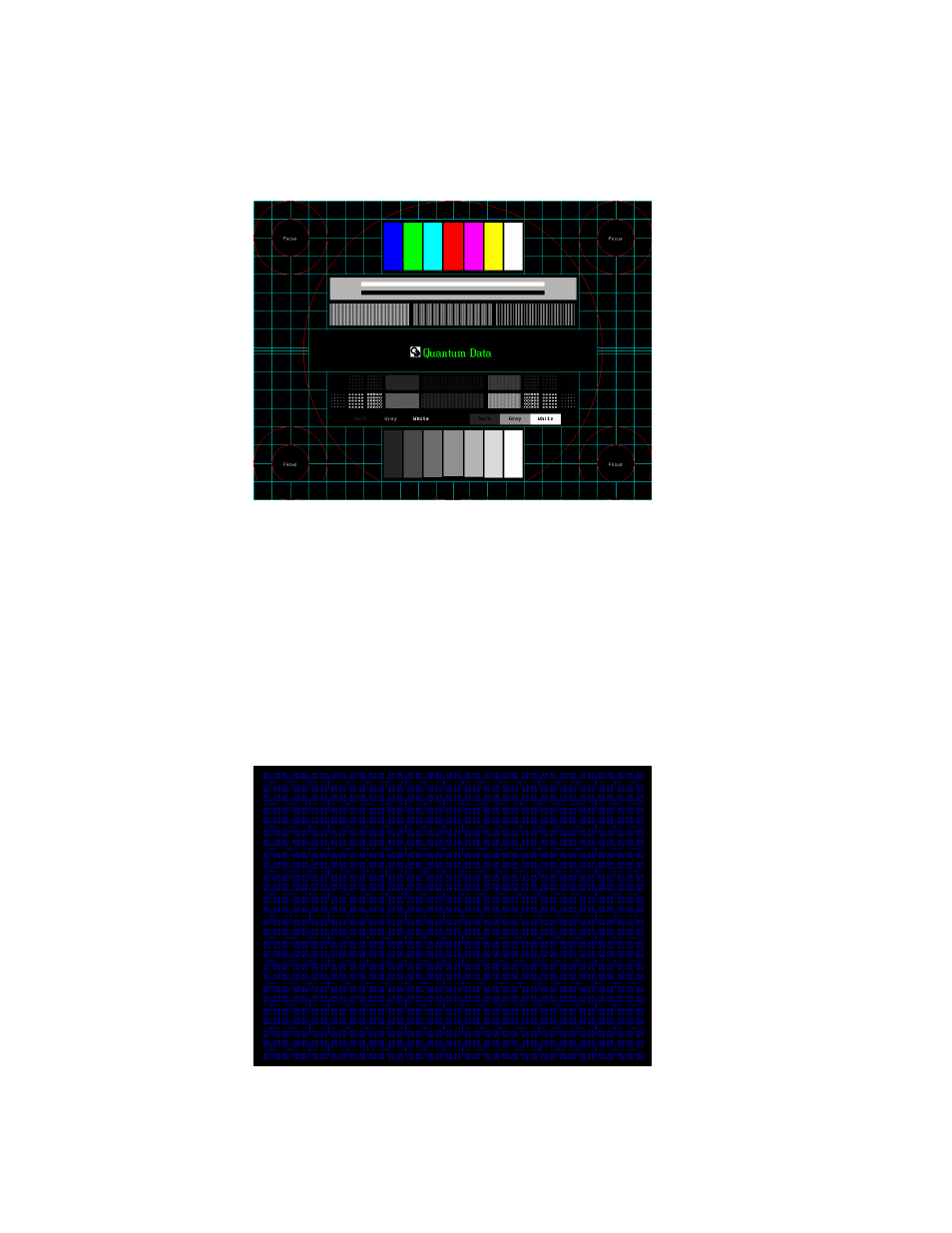

A bitmap of a single character block is shown here. The BLU_EM+ image is shown below.
