332 Chapter 10 Testing HDMI Sink Devices
FMTU // Activates the 480i2x29 format
3. Press the Content key and choose an audio image (for example, AudioLR).

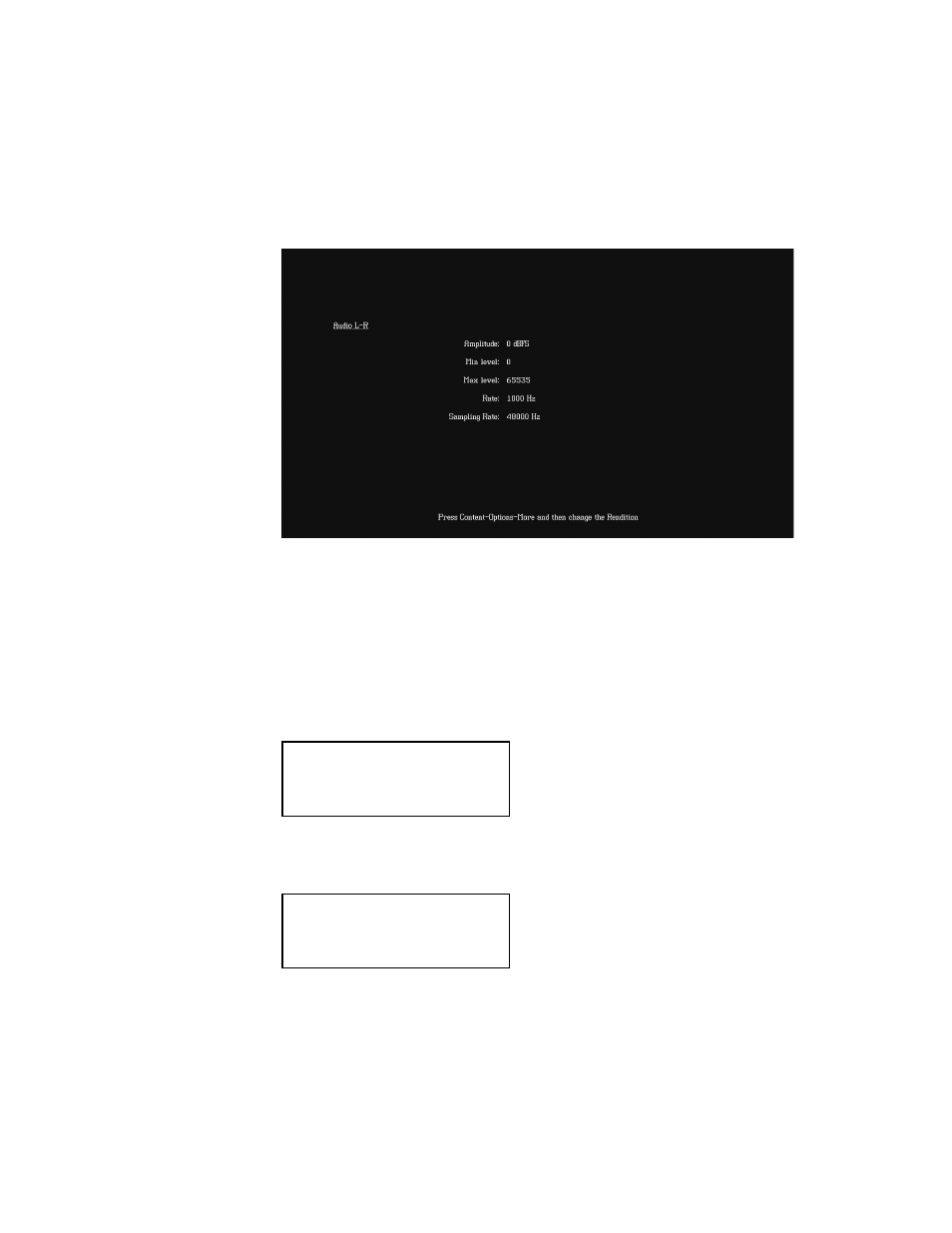

The selected image appears on the connected HDMI display. The image shows the
current settings for the HDMI audio output. For example, the AudioLR image is shown
below.
Alternatively, to select the audio image using the command line interface, enter the
following commands:
IMGP /tffs0/Library/Images // Set image path to generator memory
IMGL AUDIOLR // Loads the AudioLR image
IMGU // Activates the AudioLR image
4. Enable and view image versions for the AudioLR image as follows:
a. Press the Options key. The following menu appears on the generator’s display:
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
c. Press the + and - keys to advance through the image versions.
-More
Red+
-NoGamma Green+
-Noise Blue+
+More Rendition: 000
Red+
-NoGamma Green+
-Noise Blue+
